Запчасти Case IH PTX600 (3.021.1) - SAFETY/TRANSPORT LIGHTING BRACKETS (ASN CBJ0014093) Electrical/Electronics

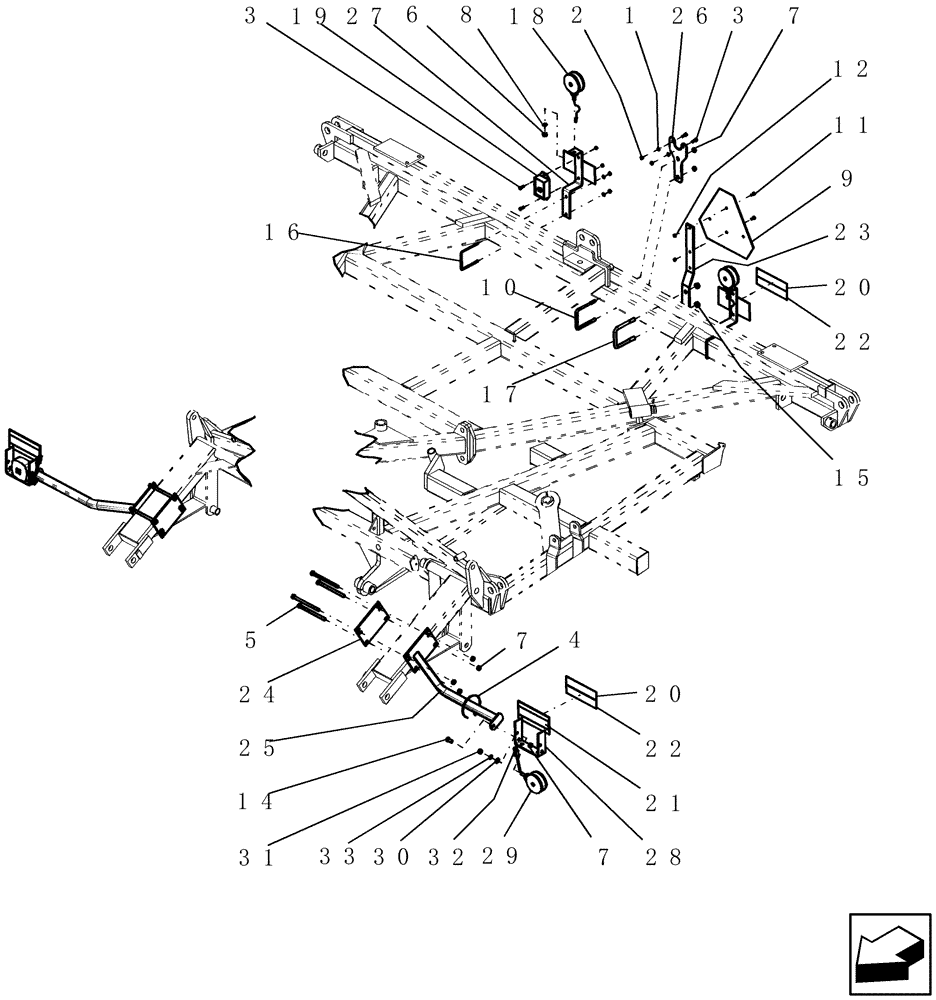

Схема запчастей Case IH PTX600 - (3.021.1) - SAFETY/TRANSPORT LIGHTING BRACKETS (ASN CBJ0014093) Electrical/Electronics
8
4
11
15
16
20
1
24
3
7
5
25
28
6
21
2
27
19
18
9
3
32
26
33
14
22
20
31
30
23
7
22
29
17
12
10
7

Артикул

Название

Примечание

Количество

1

80681

LOCK WASHER,5/16"

6шт.

2

9635082

NUT,5/16" - 18, Gr 5

6шт.

3

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

4

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

5

86505997

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 5

8шт.

6

280431

NUT,1/2"-13, G5

2шт.

7

86992215

LOCK NUT,1/2"-13, GC

12шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

412742A1

WARNING SIGN

smv steel back 4 holes

1шт.

10

412749A1

U-BOLT

us 1/2"-13 4 1/8" w 5 1/4" d G5 1 1/4" thread

1шт.

11

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

12

280129

NUT,1/4"-20

4шт.

13

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

14

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

15

85700693

NUT,5/8" - 11, Gr C

2шт.

16

419990A1

U-BOLT

us 5/16" x 4 1/8" w x 4 3/4" d 3/4" thread

2шт.

17

3951

U-BOLT

us 5/8"-11 4 1/16" w 5 3/8" d GR5

1шт.

18

51200040

LIGHT

assy. stop tail/signal red

2шт.

Includes 6815 and 86537133

1шт.

18

6815

LENS

red

2шт.

18

86537133

BULB,C6, #1157, 12.8V

2шт.

18

84129422

BULB

Double Contact, 1156DC

2шт.

19

86561136

MODULE

implement lighting control

1шт.

20

22902

DECAL

retroreflective red 2" x 9"

2шт.

21

22903

DECAL

retroreflective amber 2" x 9"

2шт.

22

51200094

DECAL

fluorescent red orange

2шт.

23

ND-575

BRACKET

S.M.V sign

1шт.

24

ND-989

BACKING PLATE

universal

2шт.

25

ND-986V2

BRACKET

amber light

2шт.

26

NW-430

BRACKET

plug receptacle

1шт.

27

NW-567

BRACKET

mount red light/decal

2шт.

28

NW-589

BRACKET

amber light / decal mount

2шт.

29

87564157

WARNING LIGHT

assembly amber

2шт.

30

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

31

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

32

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

2шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

Выбрано товаров: 37
