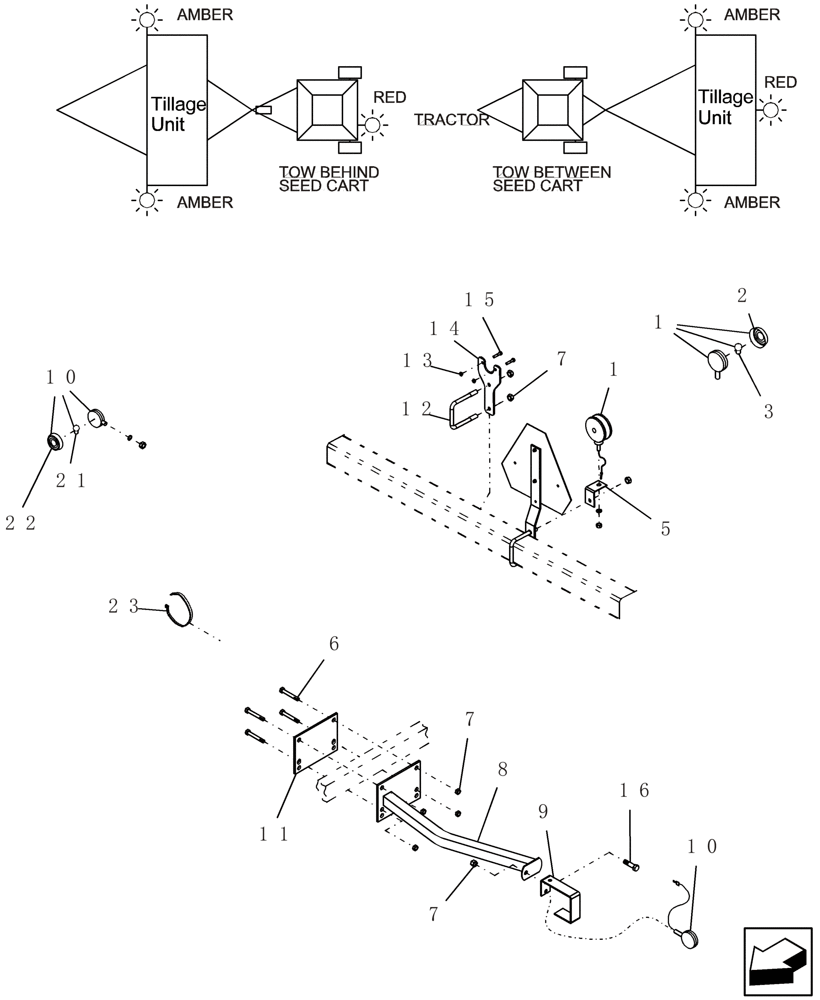

Запчасти Case IH PTX600 (3.020.1) - SAFETY/TRANSPORT LIGHTING BRACKETS (BSN CBJ0014092) Electrical/Electronics

1

425058A1

STOP LIGHT

red tail assembled

1шт.

Includes 6815 and 9417867

1шт.

2

6815

LENS

red

2шт.

3

86537133

BULB,C6, #1157, 12.8V

1шт.

5

ND-860

BRACKET

red light mount

1шт.

6

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

8шт.

6

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

8шт.

6

86505997

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 5

8шт.

7

86992215

LOCK NUT,1/2"-13, GC

12шт.

8

ND-986V2

BRACKET

amber light

2шт.

9

ND-870V2

PROTECTING COVER

amber light

2шт.

10

432622A1

WARNING LIGHT

amber assembled

2шт.

Includes 432601A1 and 529068

1шт.

11

ND-989

BACKING PLATE

universal

2шт.

12

412749A1

U-BOLT

us 1/2"-13 4 1/8" w 5 1/4" d G5 1 1/4" thread

1шт.

13

281010

LOCK NUT,7/8"-14, GC

2шт.

14

NW-430

BRACKET

plug receptacle

1шт.

15

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

16

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

21

529068

BULB,#1156, 12V, 21W

2шт.

22

432601A1

LENS

amber acrylic

4шт.

23

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

15шт.

23

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

5шт.
