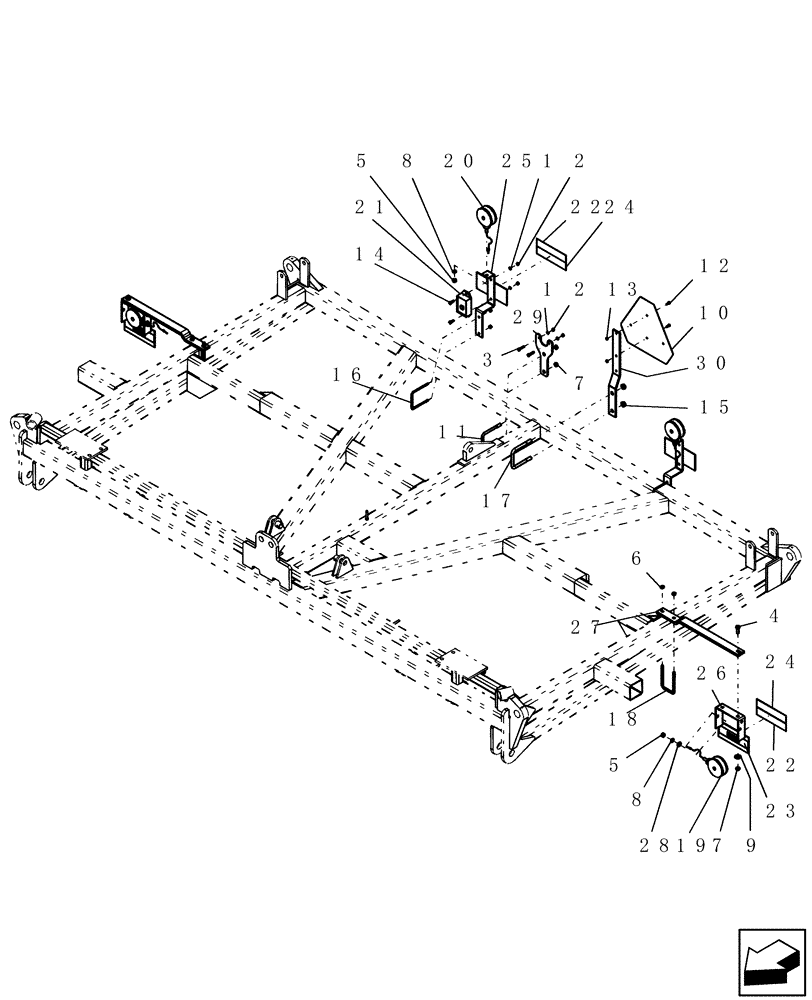

Запчасти Case IH PTX300 (3.022.1) - TRANSPORT LIGHTING/REFLECTIVE DECALS AND SLOW MOVING VEHICLE SIGN ASN CBJ0015121 Electrical/Electronics
№
Артикул
Название
Примечание
Количество
1
80681
LOCK WASHER,5/16"
8шт.
2
9635082
NUT,5/16" - 18, Gr 5
8шт.
3
88275
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5
2шт.
4
87689
BOLT,1/2"-13 x 1.813" OAL, Gr 5
2шт.
6
280980
NUT,7/16"-14, GC
4шт.
8
80679
LOCK WASHER,1/20.507 CST ZND
4шт.
9
80700
WASHER,0.56" ID x 1.38" OD x 0.11" Thk
2шт.
10
412742A1
WARNING SIGN
smv steel back 4 holes
1шт.
11
412749A1
U-BOLT
us 1/2"-13 4 1/8" w 5 1/4" d G5 1 1/4" thread
1шт.
12
9707580
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
2шт.
13
280129
NUT,1/4"-20
2шт.
15
85700693
NUT,5/8" - 11, Gr C
2шт.
16
419990A1
U-BOLT
us 5/16" x 4 1/8" w x 4 3/4" d 3/4" thread
2шт.
17
3951
U-BOLT
us 5/8"-11 4 1/16" w 5 3/8" d GR5
1шт.
18
8980
U-BOLT
us 7/16"-14 3 1/8" w 5 1/2" d G5
2шт.
19
87564157
WARNING LIGHT
assembly amber
2шт.
19
F63434
LENS
amber, turn signal light, flasher
1шт.
19
529068
BULB,#1156, 12V, 21W
, Years: -01-SEP-06
1шт.
19
86537133
BULB,C6, #1157, 12.8V
, Start Year: 01-OCT-06
1шт.
19
F63435
GASKET
lamp mounting
1шт.
19
A43731
GASKET
sealing, lens
1шт.
20
51200040
LIGHT
assy. stop tail/signal red
2шт.
Includes 6815 and 86537133
1шт.
19
84129422
BULB
Double Contact, 1156DC
1шт.
20
6815
LENS
red
2шт.
20
86537133
BULB,C6, #1157, 12.8V
2шт.
21
86561136
MODULE
implement lighting control
1шт.
22
22902
DECAL
retroreflective red 2" x 9"
4шт.
23
22903
DECAL
retroreflective amber 2" x 9"
2шт.
24
51200094
DECAL
fluorescent red orange
4шт.
25
NW-567
BRACKET
mount red light/decal
2шт.
26
NW-589
BRACKET
amber light / decal mount
2шт.
27
TH-478
BRACKET
Amber Safety Light Mount
2шт.
28
87364
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
2шт.
29
NW-430
BRACKET
plug receptacle
1шт.
30
ND-575
BRACKET
S.M.V sign
1шт.
Выбрано товаров: 39
