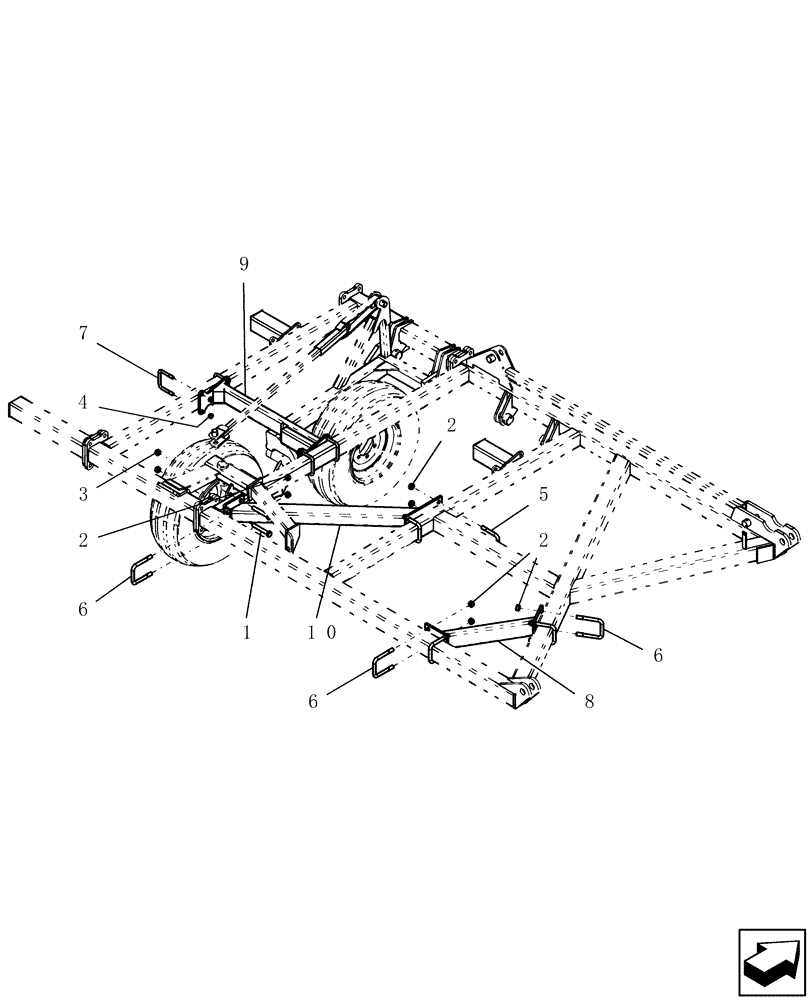

Запчасти Case IH PTX300 (1.141.1) - HIGH DRAFT OPTION ASN CBJ0015121 (12) - FRAME

1

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

2

280954

NUT,3/4"-10, G5

14шт.

3

280375

NUT,3/4"-10, GC

2шт.

4

85700693

NUT,5/8" - 11, Gr C

8шт.

5

7069

U-BOLT

us 3/4"-10 x 4 1/32" x 4 3/4", G5

2шт.

6

7818

U-BOLT

us 3/4"-10 4 1/32" w 5 5/8" d GR5

5шт.

7

9175

U-BOLT

us 5/8"-11 4 1/16" w x 4 1/8" d G5

4шт.

8

TH-523

FRAME

Rear Corner Brace

1шт.

9

TH-525

FRAME

Stub Crossbar

1шт.

10

87500275

FRAME

diagonal brace

1шт.
