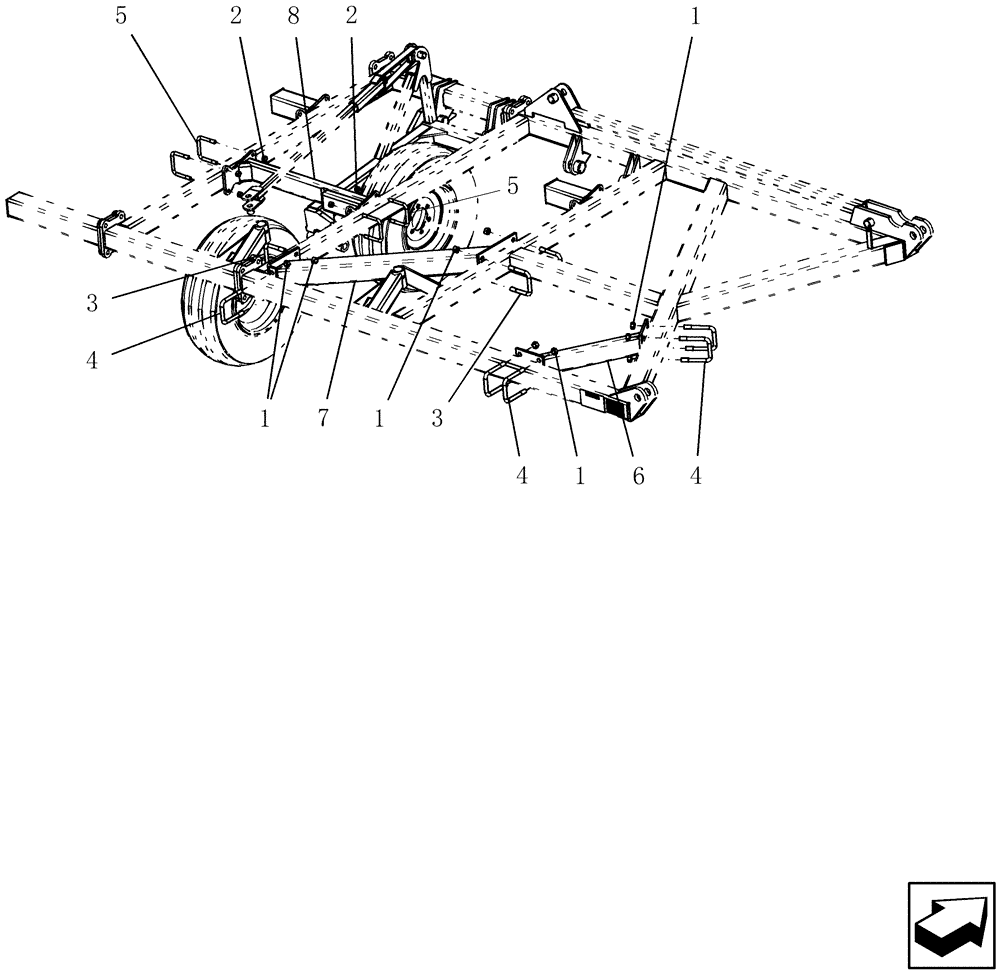

Запчасти Case IH PTX300 (1.140.1) - HIGH DRAFT OPTION BSN CBJ0015120 (12) - FRAME

1

280954

NUT,3/4"-10, G5

16шт.

2

85700693

NUT,5/8" - 11, Gr C

28шт.

3

7069

U-BOLT

us 3/4"-10 x 4 1/32" x 4 3/4", G5

3шт.

4

7818

U-BOLT

us 3/4"-10 x 4 1/32" wide x 5 5/8" deep

5шт.

5

9175

U-BOLT

us 5/8"-11 4 1/16" w x 4 1/8" d G5

4шт.

6

TH-523

FRAME

Rear Corner Brace

1шт.

7

87500275

FRAME

diagonal brace

1шт.

8

TH-525

FRAME

Stub Crossbar

1шт.
