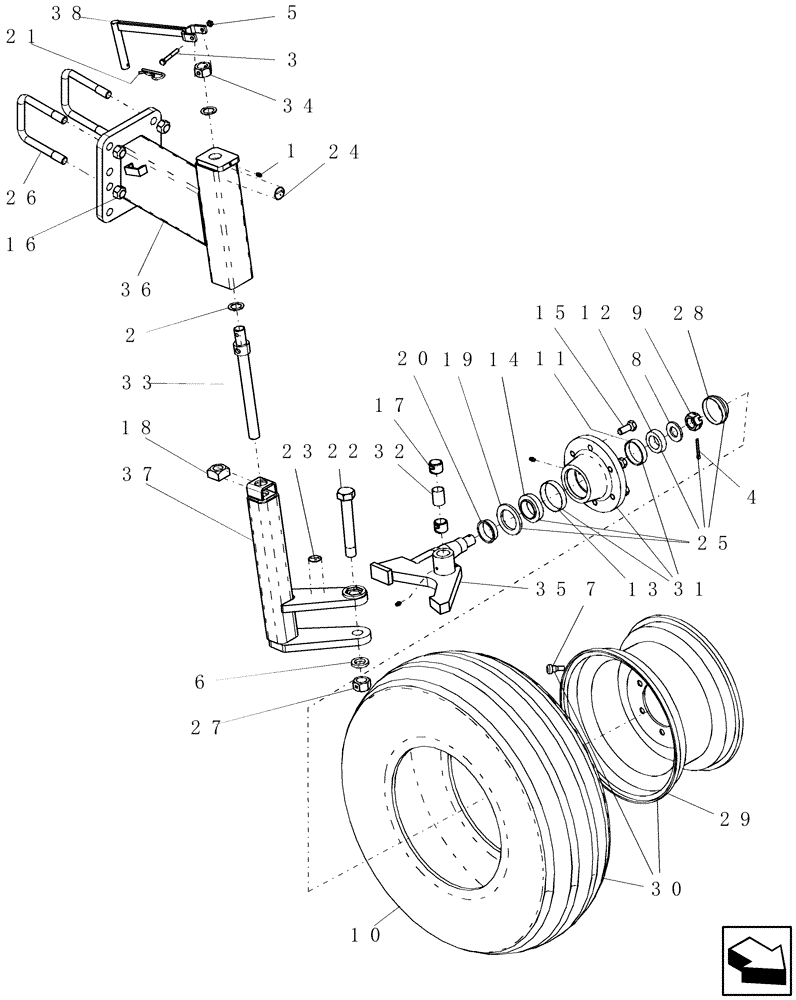

Запчасти Case IH PTX300 (1.123.1) - GAUGE WHEEL ASSEMBLY (12) - FRAME

1

87414

LUBE NIPPLE,1/4" - 28

3шт.

2

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

2шт.

3

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

4

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

5

281010

LOCK NUT,7/8"-14, GC

1шт.

6

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

1шт.

7

196033

VALVE STEM

tr/415

1шт.

8

86900677

WASHER,1.03" ID x 2" OD x 0.18" Thk

1шт.

9

86020752

SLOTTED NUT

1"-14, G5

1шт.

10

1980927C1

TYRE/TIRE

11L X 15 SL - 8 ply

1шт.

11

86516467

BEARING CUP,65.08mm OD x 13.97mm W

#LM48510

1шт.

12

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

#LM48548

1шт.

13

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

1шт.

14

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

1шт.

15

G49036

WHEEL BOLT

wheel 9/16"-18 x 1 1/4", G5, WB12

6шт.

16

280375

NUT,3/4"-10, GC

4шт.

17

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

2шт.

18

3579

SQUARE NUT

square 1"-8

1шт.

19

3685

OIL SEAL

triple lip - h615 hub

1шт.

20

51200202

SLEEVE

wear, spindle S614/S811

1шт.

21

350109A1

HAIR PIN COTTER

.177" x 3 1/4"

1шт.

22

432636A1

BOLT

1"-8 x 6 3/8", G5, 1" thread length

1шт.

23

6566

DECAL

grease 50 hours

1шт.

24

6567

DECAL

grease 200 hours

1шт.

25

6615

WHEEL BEARING KIT

completion - H615

1шт.

Includes cotterpin, cones, dust cap and seal

1шт.

26

7818

U-BOLT

us 3/4"-10 x 4 1/32" wide x 5 5/8" deep

2шт.

27

21457

LOCK NUT

1"-8, GA

1шт.

28

51200086

HUB CAP

dc15 h614

1шт.

29

A57879

RIM

15X8 6 hole with VG +1 1/8" offset

1шт.

30

87506473

WHEEL ASSY

15 X8 6 hole with 11L - 8ply tire & valve

1шт.

Includes 387897R91, 3472\S and 1980927C1

1шт.

31

87505492

HUB

H615-1 assembly with cups and bolts

1шт.

Includes hub, cups and wheel bolts

1шт.

32

TH-469

TUBE SPACER

gauge wheel pivot

1шт.

33

TH-471

SPECIAL BOLT

adjuster

1шт.

34

TH-476

NUT

Adjuster Stud

1шт.

35

TH-521

AXLE

Pivot, Gauge Wheel RH

1шт.

Shown

1шт.

35

TH-522

AXLE

Pivot, Gauge Wheel LH

1шт.

Not Shown

1шт.

36

TH-470V2

ARM

main support

1шт.

37

TH-473V2

SLIDER

Inner Gauge Wheel

1шт.

38

TH-475V2

CRANKED HANDLE

Gauge Wheel

1шт.
