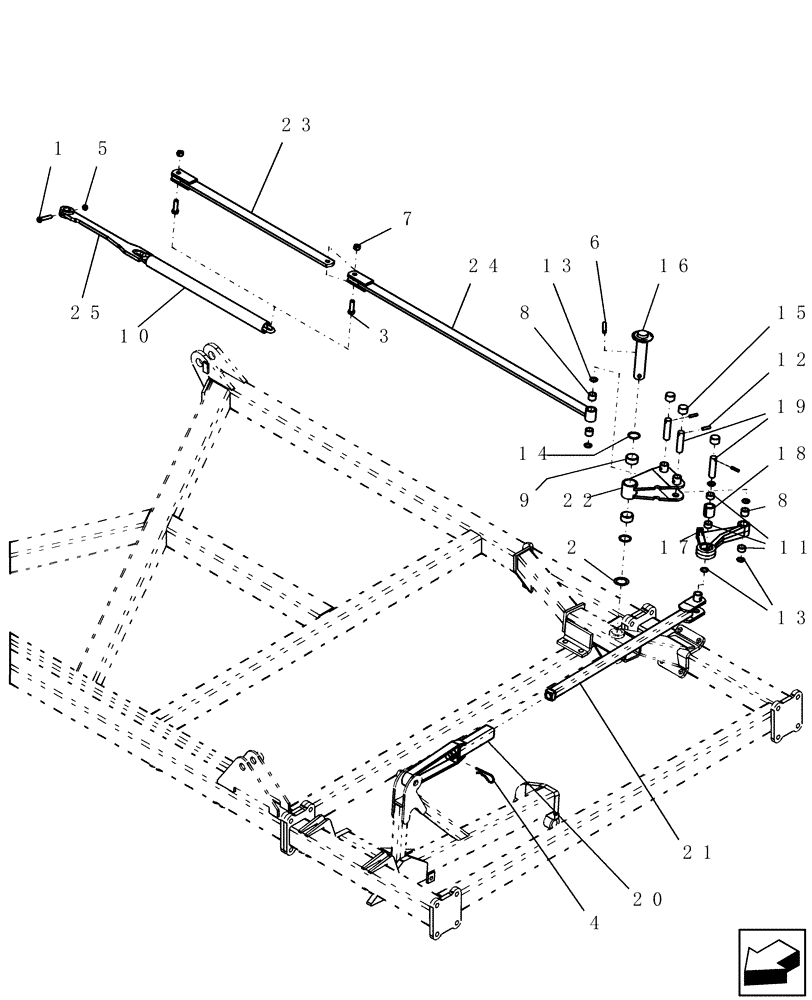

Запчасти Case IH PTX300 (1.111.1) - DEPTH CONTROL ASSEMBLY - WINGS ASN CBJ0015121 (12) - FRAME

1

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

2

87325446

WASHER,1.75" ID x 2.5" OD x 0.07" Thk

1 3/4" id 2 1/2" x 14 ga

1шт.

3

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

4

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.

5

87530607

NUT

1/2"-13, GB

1шт.

6

4770

ROLL PIN

1/2" x 3"

1шт.

7

85700693

NUT,5/8" - 11, Gr C

2шт.

8

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

3шт.

9

6637

BUSHING

composite 2" x 1 3/4" x 1"

2шт.

10

7903

HOSE,2.00" ID x 28.00"

Water Discharge

1шт.

11

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

composite 1 1/4" x 1" x 3/4"

3шт.

12

425291A1

ROLL PIN

3/8" x 1 1/2" spiral

3шт.

13

121189

OIL SEAL

1 1/4" od x 1/8" thick

6шт.

14

8059

SEAL,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2" od x 1/8" thick

2шт.

15

87010463

CAP

vinyl 1 3/8" x 1"

3шт.

16

87456216

PIVOT PIN

wing bell crank

1шт.

17

NW-332

ROCKER

depth crank with bushings

1шт.

Includes 6635 and 7995

1шт.

18

NW-334

ARM

weeble with bushing

1шт.

Includes two 7995

1шт.

19

NW-453

PIN

1" x 3 7/8"

3шт.

20

TH-318

LINK

adjuster, wheel standard

1шт.

21

TH-319

LINK

adjuster, lower

1шт.

22

TH-362

CRANK

housing LH

1шт.

Shown

1шт.

22

TH-363

CRANK

housing, RH

1шт.

Not Shown

1шт.

23

TH-367

LINK

depth, for 3' extension

1шт.

Only used with C-Frame

1шт.

24

TH-368

LINK

depth, 9' wing

1шт.

Shown

1шт.

Includes two of 6635

1шт.

24

TH-366

LINK

depth, 6' wing

1шт.

Not Shown

1шт.

Includes two 6635

1шт.

25

TH-592

LINK

wing hinge, bolt style, Years: -01-MAR-06

1шт.

25

87399285

LINK

wing hinge, bolt style, Start Year: 01-APR-06

1шт.
