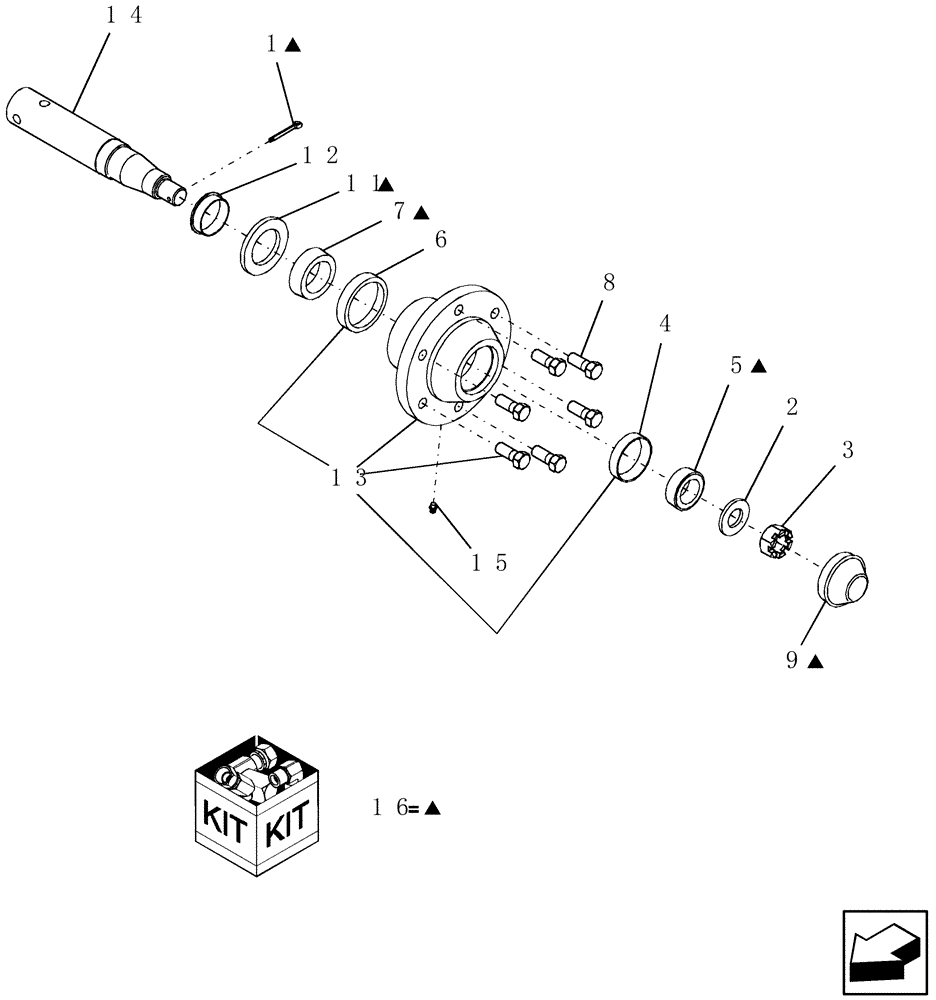

Запчасти Case IH PTX300 (1.080.1) - 615 HUB AND SPINDLE ASSEMBLY (12) - FRAME

0

NW-614A

HUB

and spindle assembly, H615

1шт.

Includes hub, spindle, dust cap. bearings, seals and wheel bolts

1шт.

1

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

2

86900677

WASHER,1.03" ID x 2" OD x 0.18" Thk

1шт.

3

86020752

SLOTTED NUT

1"-14, G5

1шт.

4

86516467

BEARING CUP,65.08mm OD x 13.97mm W

#LM48510

1шт.

5

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

#LM48548

1шт.

6

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

1шт.

7

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

1шт.

8

G49036

WHEEL BOLT

wheel 9/16"-18 x 1 1/4", G5, WB12

6шт.

9

51200086

HUB CAP

dc15 h614

1шт.

11

3685

OIL SEAL

triple lip - h615 hub

1шт.

12

51200202

SLEEVE

wear, spindle S614/S811

1шт.

13

87505492

HUB

H615-1 assembly with cups and bolts

1шт.

Includes hub, cups and wheel bolts

1шт.

14

432603A1

SPINDLE

2" x 11 1/2"- S614 hub

1шт.

Includes 1628 and 1629

1шт.

14

CC-164

SPINDLE

2" x 11 1/2" with wear sleeve

1шт.

Includes 3686 and 8604

1шт.

15

87414

LUBE NIPPLE,1/4" - 28

1шт.

16

6615

WHEEL BEARING KIT

completion - H615

1шт.

Includes cotterpin, cones, dust cap and seal

1шт.
