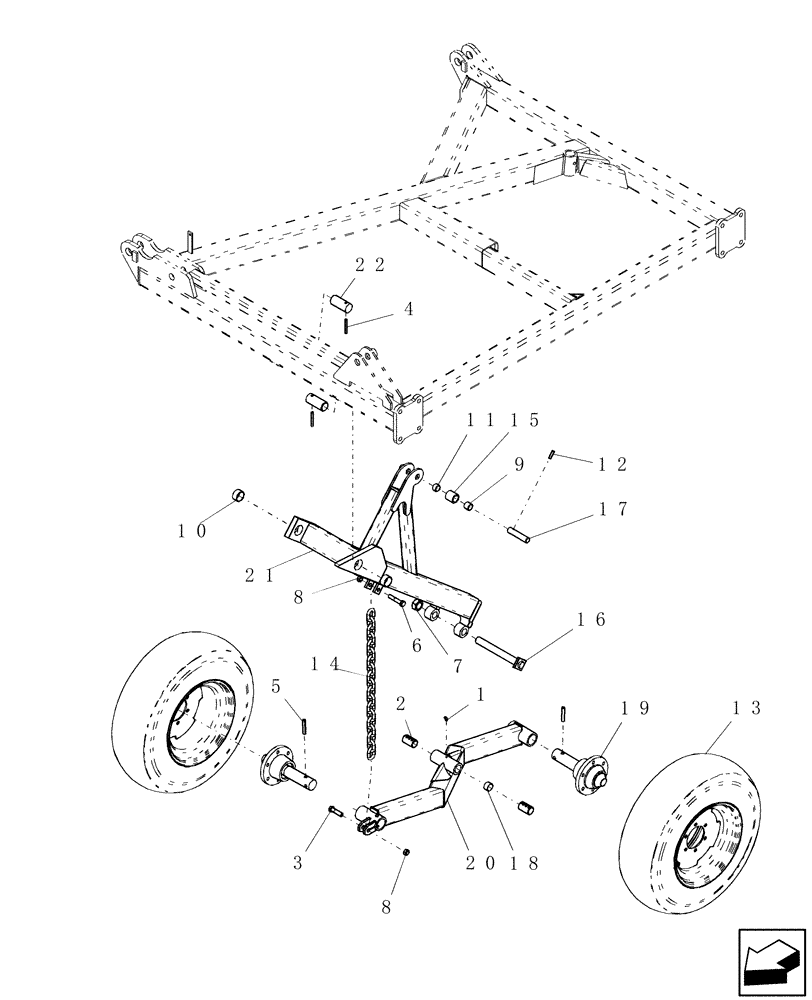

Запчасти Case IH PTX300 (1.070.1) - WHEEL STANDARD AND WALKING BEAM - WING (12) - FRAME

1

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

2

3498

BUSHING

tension 1 1/2" x 1 1/4" x 2 1/2" long

2шт.

3

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

1шт.

4

86544809

LOCK PIN,9.53mm OD x 76.2mm L, Slotted

2шт.

5

4770

ROLL PIN

1/2" x 3"

2шт.

6

280170

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

1шт.

7

87323802

NUT

1 1/4"-12, GB

1шт.

8

85700693

NUT,5/8" - 11, Gr C

2шт.

9

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

1шт.

10

6637

BUSHING

composite 2" x 1 3/4" x 1"

2шт.

11

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

composite 1 1/4" x 1" x 3/4"

1шт.

12

425291A1

ROLL PIN

3/8" x 1 1/2" spiral

1шт.

13

87506473

WHEEL ASSY

15 X8 6 hole with 11L - 8ply tire & valve

2шт.

Includes 387897R91, 3472\S and 1980927C1

1шт.

14

86989967

CHAIN

link 1/2" GR43 13 link

1шт.

15

NW-355

SPOOL

wheel standard - upper

1шт.

Includes 7995 and 6635

1шт.

16

NW-455

BOLT

1 1/4"-12 x 10 1/2"

1шт.

17

NW-482

PIN

1" x 4 3/4"

1шт.

18

NW-506V2

SPACER

1 7/16" od x 7/8" long

1шт.

19

NW-614A

HUB

and spindle assembly, H615

2шт.

Includes hub, spindle, dust cap. bearings, seals and wheel bolts

1шт.

20

TH-350

BEAM

walking, wing LH

1шт.

Shown

1шт.

Includes two 3498, 6566, and NW-506V2

1шт.

20

TH-351

BEAM

walking, wing RH

1шт.

Not Shown

1шт.

Includes two 3498, 6566, and NW-506V2

1шт.

21

446697A1

FRAME

wheel standrad wing LH

1шт.

Shown

1шт.

Includes two 6637

1шт.

21

446698A1

FRAME

wheel standard wing RH

1шт.

Not Shown

1шт.

Includes two 6637

1шт.

22

TH-381

PIN

1 3/4" x 4"

2шт.

100

A57879

RIM

15X8 6 hole with VG +1 1/8" offset

1шт.

Not Shown

1шт.

100

1980927C1

TYRE/TIRE

11L X 15 SL - 8 ply

1шт.

Not Shown

1шт.

100

196033

VALVE STEM

tr/415

1шт.

Not Shown

1шт.
