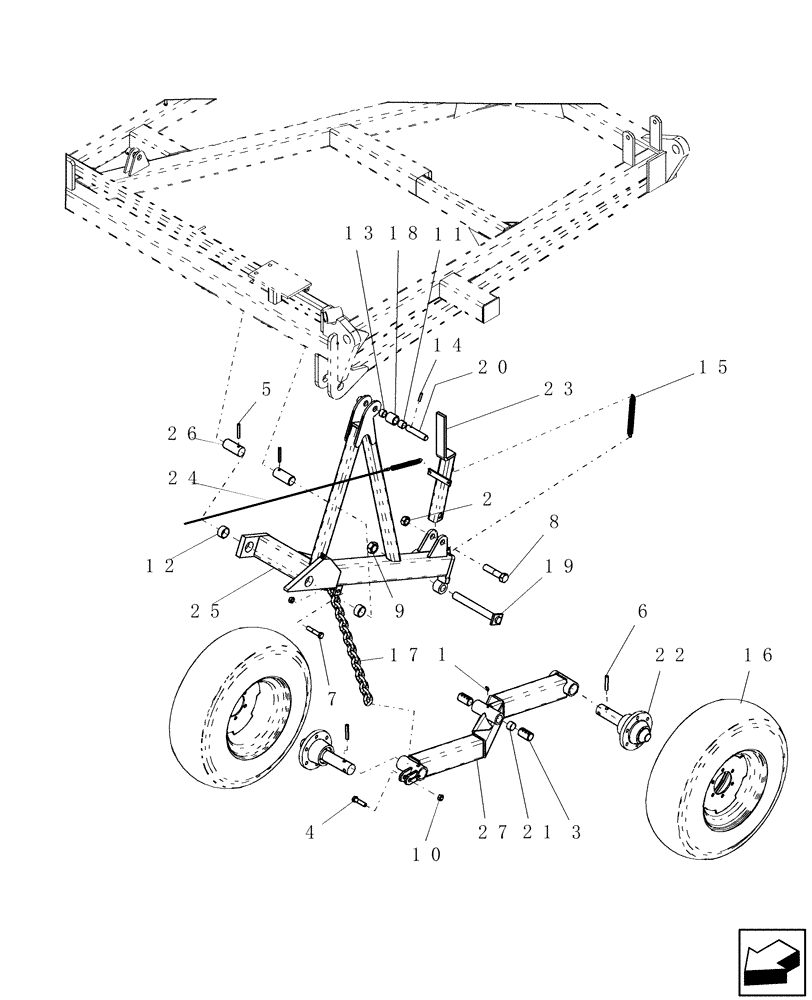

Запчасти Case IH PTX300 (1.060.1) - WHEEL STANDARD AND WALKING BEAM - CENTER (12) - FRAME
№
Артикул
Название
Примечание
Количество
1
87415
LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive
1шт.
2
280286
NUT,1"-8, GB
1шт.
3
3498
BUSHING
tension 1 1/2" x 1 1/4" x 2 1/2" long
2шт.
5
86544809
LOCK PIN,9.53mm OD x 76.2mm L, Slotted
2шт.
6
4770
ROLL PIN
1/2" x 3"
2шт.
7
280170
BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8
1шт.
8
280443
BOLT,Hex, 1" - 8 x 4 1/2", Gr 5
1шт.
9
87323802
NUT
1 1/4"-12, GB
1шт.
10
85700693
NUT,5/8" - 11, Gr C
2шт.
11
87420246
BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L
Garmax MGL composite 1 1/4" x 1" x 1"
1шт.
12
6637
BUSHING
composite 2" x 1 3/4" x 1"
2шт.
13
87500592
BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L
composite 1 1/4" x 1" x 3/4"
1шт.
14
425291A1
ROLL PIN
3/8" x 1 1/2" spiral
1шт.
15
1338\C
SPRING
extension 1/8" Wire x 7/8" OD x 8" long
1шт.
16
87505470
WHEEL ASSY
15" x 8" 6h with 11l-15fi d
2шт.
Includes 3474, 3472\S and 387897R91
1шт.
17
86989967
CHAIN
link 1/2" GR43 13 link
1шт.
18
NW-355
SPOOL
wheel standard - upper
1шт.
Includes 7995 and 6635
1шт.
19
NW-455
BOLT
1 1/4"-12 x 10 1/2"
1шт.
20
NW-482
PIN
1" x 4 3/4"
1шт.
21
NW-506V2
SPACER
1 7/16" od x 7/8" long
1шт.
22
NW-614A
HUB
and spindle assembly, H615
2шт.
Includes hub, spindle, dust cap. bearings, seals and wheel bolts
1шт.
23
TH-330
LOCK
transport
1шт.
24
TH-332
CABLE WINDER
assembly, spring transport lock
1шт.
Includes 8558\C
1шт.
25
446609A1
FRAME
wheel standard center LH
1шт.
Shown
1шт.
Includes two 6637
1шт.
25
446610A1
FRAME
wheel standard center RH
1шт.
Not Shown
1шт.
Includes two 6637
1шт.
26
TH-381
PIN
1 3/4" x 4"
2шт.
27
TH-352V2
BEAM
Walking, Heavy LH
1шт.
Shown
1шт.
Includes two 3498, NW-506V2, and 6566
1шт.
27
TH-353V2
BEAM
walking, heavy RH
1шт.
Not Shown
1шт.
Includes two 3498, NW-506V2, and 6566
1шт.
100
196033
VALVE STEM
tr/415
1шт.
100
3474
TYRE/TIRE
11l x 15 fi - d load range
1шт.
100
A57879
RIM
15X8 6 hole with VG +1 1/8" offset
1шт.
Выбрано товаров: 44
