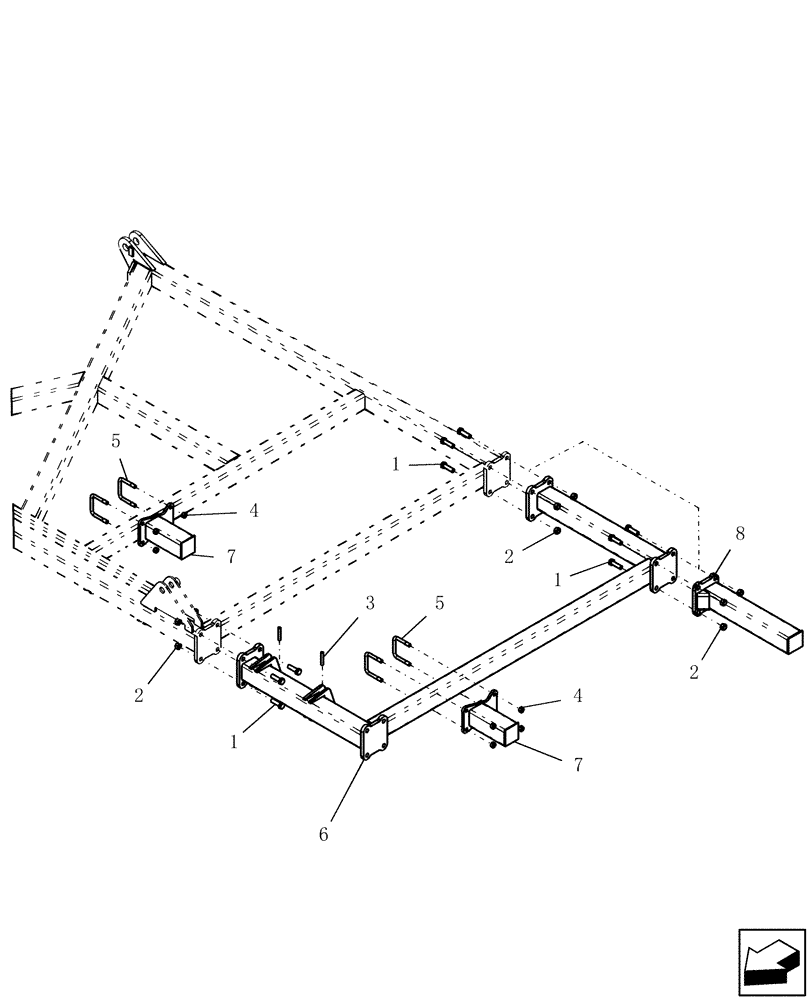

Запчасти Case IH PTX300 (1.051.1) - WING EXTENSIONS (STUBS) ASN CBJ0015121 (12) - FRAME

1

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

12шт.

2

280375

NUT,3/4"-10, GC

12шт.

3

4770

ROLL PIN

1/2" x 3"

2шт.

4

85700693

NUT,5/8" - 11, Gr C

8шт.

5

9175

U-BOLT

us 5/8"-11 4 1/16" w x 4 1/8" d G5

4шт.

6

87456203

FRAME

extension cultivator 3' LH

1шт.

6

87456207

FRAME

extension cultivator 3' RH

1шт.

7

446898A1

FRAME

stub 10" spacing

2шт.

8

447037A1

FRAME

stub 24"

1шт.
