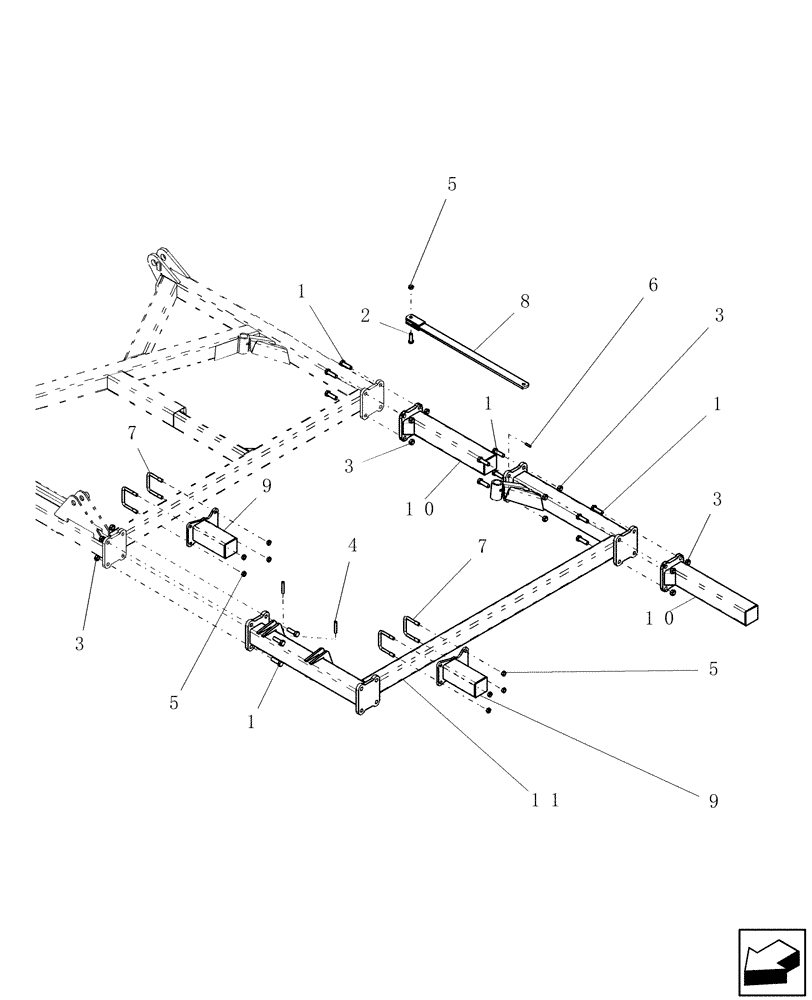

Запчасти Case IH PTX300 (1.050.1) - WING EXTENSIONS (STUBS) BSN CBJ0015120 (12) - FRAME

1

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

16шт.

2

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

3

280375

NUT,3/4"-10, GC

16шт.

4

4770

ROLL PIN

1/2" x 3"

2шт.

5

85700693

NUT,5/8" - 11, Gr C

9шт.

6

425291A1

ROLL PIN

3/8" x 1 1/2" spiral

1шт.

7

9175

U-BOLT

us 5/8"-11 4 1/16" w x 4 1/8" d G5

4шт.

8

TH-367

LINK

depth, for 3' extension

1шт.

9

446898A1

FRAME

stub 10" spacing

2шт.

10

447037A1

FRAME

stub 24"

2шт.

11

446900A1

FRAME

3' stub LH

1шт.

12

446899A1

FRAME

3' stub RH

1шт.
