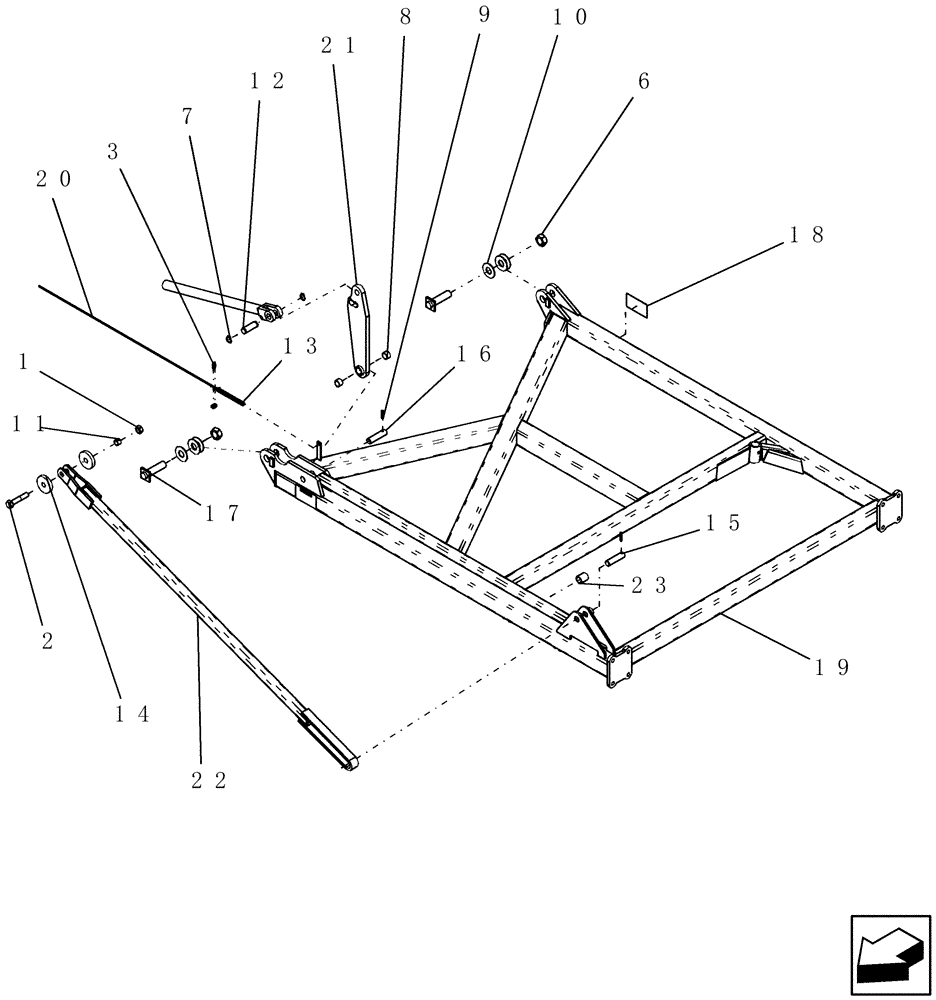

Запчасти Case IH PTX300 (1.040.1) - 9 FT WING ASSEMBLY BSN CBJ0015120 (12) - FRAME

1

280286

NUT,1"-8, GB

1шт.

2

88381

BOLT,Hex, 1" - 8 x 5", Gr 5

1шт.

3

432641A1

CLAMP

cable 3/16" wire rope

1шт.

6

87323803

LOCK NUT

1 1/2"-12, GC

2шт.

7

86625148

SNAP RING,#125, Ext

2шт.

8

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

2шт.

9

438-22432

LOCK PIN,9.53mm OD x 50.8mm L, Coiled

2шт.

10

432584A1

WASHER

1.52" id x 3.5" od x .188" thick

6шт.

11

8427

BUSHING

tension 1 1/4" x 1" x 7/8" long

1шт.

12

8973

PIN

cylinder, 1 1/4" x 3 3/8" ul with snap ring groove

1шт.

13

8558\C

SPRING

extension 1/8" wire x 7/8" od x 7 1/8"

1шт.

14

ND-454

ROLLER

ramp hinge 3/4" x 1" x 4"

2шт.

15

NW-473

PIN

1 1/4" x 4 3/4"

1шт.

16

NW-475

PIN

1 1/4" x 5"

1шт.

17

NW-450V2

BOLT

1 1/2"-12 x 5 3/8" hardened

2шт.

18

TC-500.08

DECAL

raised wings

2шт.

19

446894A1

FRAME

9' wing LH

1шт.

Shown

1шт.

Includes two TC-500.08, 432589A1, and 412907A1

1шт.

19

446893A1

FRAME

9' wing RH

1шт.

Not Shown

1шт.

Includes two TC-500.08, 432589A1, and 412907A1

1шт.

20

TH-332

CABLE WINDER

assembly, spring transport lock

1шт.

Includes 8558\C

1шт.

21

TH-373

LIFT LINK

crank

1шт.

Includes two 6636

1шт.

22

TH-375

LIFT LINK

9' wing 115º

1шт.

23

TH-376

SLEEVE

wing lift

1шт.
