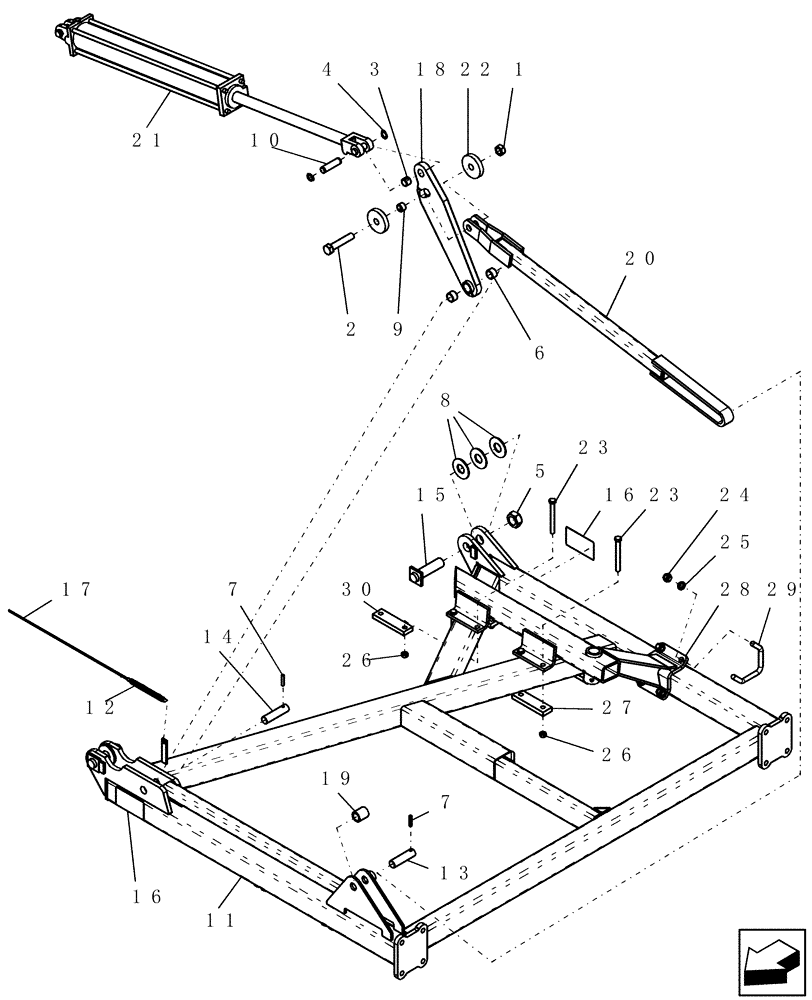

Запчасти Case IH PTX300 (1.031.1) - 6 FT WING ASSEMBLY ASN CBJ0015121 (12) - FRAME

1

280286

NUT,1"-8, GB

1шт.

2

88381

BOLT,Hex, 1" - 8 x 5", Gr 5

1шт.

3

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

2шт.

4

87019495

SNAP RING,#98, Ext

4шт.

5

87323803

LOCK NUT

1 1/2"-12, GC

2шт.

6

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

2шт.

7

438-22432

LOCK PIN,9.53mm OD x 50.8mm L, Coiled

2шт.

8

432584A1

WASHER

1.52" id x 3.5" od x .188" thick

6шт.

9

8427

BUSHING

tension 1 1/4" x 1" x 7/8" long

1шт.

10

8972

PIN

cylinder, 1" x 3 3/8" ul with snap ring groove (#437324)mo

2шт.

11

87455759

FRAME

cultivator 6' wing LH

1шт.

Shown

1шт.

11

87455765

FRAME

cultivator 6' wing RH

1шт.

Not Shown

1шт.

12

8558\C

SPRING

extension 1/8" wire x 7/8" od x 7 1/8"

1шт.

13

NW-473

PIN

1 1/4" x 4 3/4"

1шт.

14

NW-475

PIN

1 1/4" x 5"

1шт.

15

NW-450V2

BOLT

1 1/2"-12 x 5 3/8" hardened

2шт.

16

TC-500.08

DECAL

raised wings

2шт.

17

TH-332

CABLE WINDER

assembly, spring transport lock

1шт.

Includes 8558\C

1шт.

18

TH-373

LIFT LINK

crank

1шт.

Includes two 6636

1шт.

19

TH-376

SLEEVE

wing lift

1шт.

20

TH-374V2

LIFT LINK

115º, 6' wing

1шт.

21

87437292

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 812.8mm Stroke

4" x 32" mon 3000 psi without pins

1шт.

87437292R

REMAN-HYD CYLINDER

PTX300 6 FT WING ASSEMBLY ASN CBJ0015121 (6/02-7/05)

1шт.

87437292C

CORE-HYD CYLINDER

Return Number

1шт.

22

ND-454

ROLLER

ramp hinge 3/4" x 1" x 4"

2шт.

23

88264

BOLT,Hex, 5/8" - 11 x 6", Gr 5

8шт.

24

280954

NUT,3/4"-10, G5

4шт.

25

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

26

85700693

NUT,5/8" - 11, Gr C

8шт.

27

87454758

MOUNTING PLATE

2шт.

28

87454755

SUPPORT

mount small wing crank LH

1шт.

28

87454754

FRAME

small wing crank RH

1шт.

29

306293A1

BOLT

v 3/4" x 4" -G5

2шт.

30

87454760

MOUNTING PLATE

2шт.
