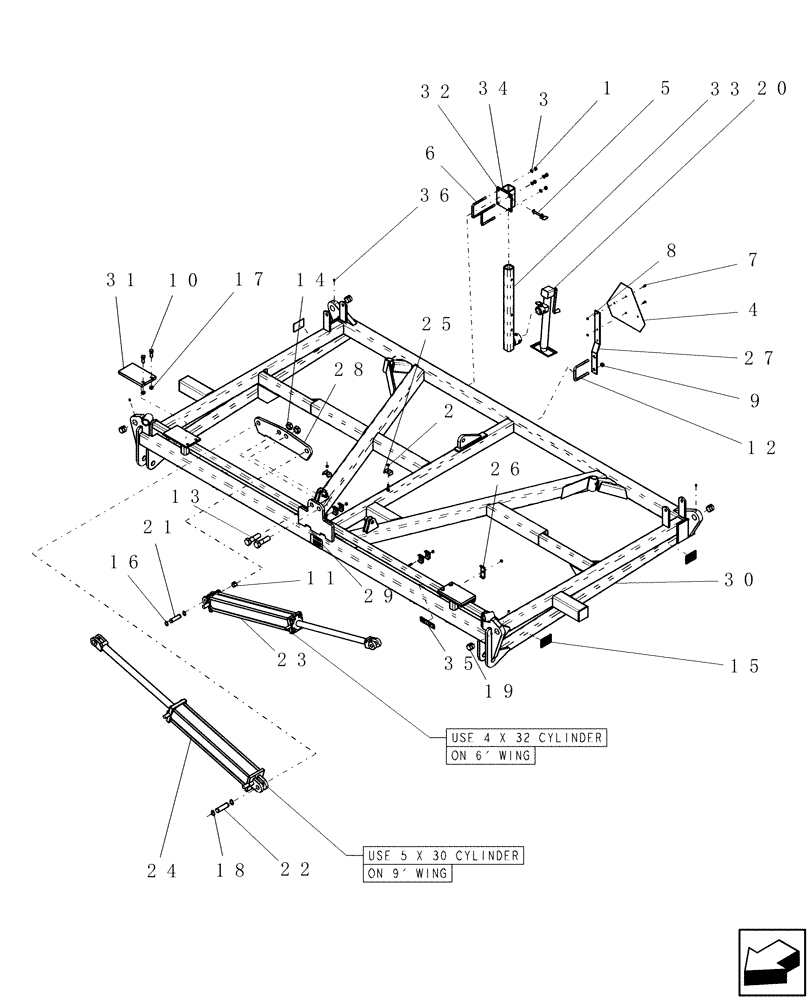

Запчасти Case IH PTX300 (1.020.1) - CENTER SECTION BSN CBJ0015120 (12) - FRAME

1

280431

NUT,1/2"-13, G5

4шт.

2

88902

NUT,3/8"-16

5шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

4

412742A1

WARNING SIGN

smv steel back 4 holes

1шт.

5

432577A1

HITCH PIN,12.7mm OD x 127mm L

1/2" x 3 1/2" ul c/w 1/8" hairpin

1шт.

6

412749A1

U-BOLT

us 1/2"-13 4 1/8" w 5 1/4" d G5 1 1/4" thread

2шт.

7

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

8

280129

NUT,1/4"-20

2шт.

9

85700693

NUT,5/8" - 11, Gr C

2шт.

10

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

11

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

1шт.

12

3951

U-BOLT

us 5/8"-11 4 1/16" w 5 3/8" d GR5

1шт.

13

413-2072

BOLT,Hex, 1-1/4" - 7 x 4-1/2", Gr 5

1 1/4"-7 x 4 1/2", G5

2шт.

14

86609684

NUT,1 1/4"-7, GB

2шт.

15

22903

DECAL

retroreflective amber 2" x 9"

4шт.

16

87019495

SNAP RING,#98, Ext

2шт.

17

85700693

NUT,5/8" - 11, Gr C

4шт.

18

86625148

SNAP RING,#125, Ext

2шт.

19

7825

GROOVED BUSHING

tension 1 3/4" x 1 1/2" x 1 1/2" long

4шт.

20

7972

JACK

3000 lb x 15" long

1шт.

21

8972

PIN

cylinder, 1" x 3 3/8" ul with snap ring groove (#437324)mo

1шт.

22

8974

PIN

cylinder, 1 1/4" x 4" ul with snap ring groove (#437327)mo

1шт.

23

87437292

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 812.8mm Stroke

4" x 32" mon 3000 psi without pins

1шт.

Refer to 4" X 32" Cylinder page for replacement parts

1шт.

87437292R

REMAN-HYD CYLINDER

PTX300 CENTER SECTION BSN CBJ0015120 (6/02-7/05)

1шт.

87437292C

CORE-HYD CYLINDER

Return Number

1шт.

24

87437293

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5" x 30" Monarch 3000 psi without pins

1шт.

Refer to 5" X 30" Cylinder Parts page for replacement parts

1шт.

25

CC-105

HOSE CLAMP

for 2 hoses

6шт.

26

CC-106

HOSE CLAMP

for 4 hoses

1шт.

27

ND-575

BRACKET

S.M.V sign

1шт.

28

NW-418

MOUNTING PLATE

cylinder 114º

1шт.

29

TC-500.10

CAUTION DECAL

proceed cautiously

1шт.

30

446494A1

FRAME

center 14'

1шт.

Includes four of 432589A1, TC-500.10, four of 7825, and TH-500.02

1шт.

31

TH-303

SHIM

plate

2шт.

32

TH-410

BRACKET

mount, jack stand - rear

1шт.

33

TH-411

TUBE,7.5" L

drop, rear jack

1шт.

34

TH-411K

REPAIR KIT

rear jack transport lock

1шт.

Includes TH-410, TH-411, 7972, TH-303, 1711, 1859, 1553, 1539, 2358, 2132, TH-332, 8558\C and 2977

1шт.

35

TH-500.02

DECAL

A B C D E F G

1шт.

36

87414

LUBE NIPPLE,1/4" - 28

4шт.
