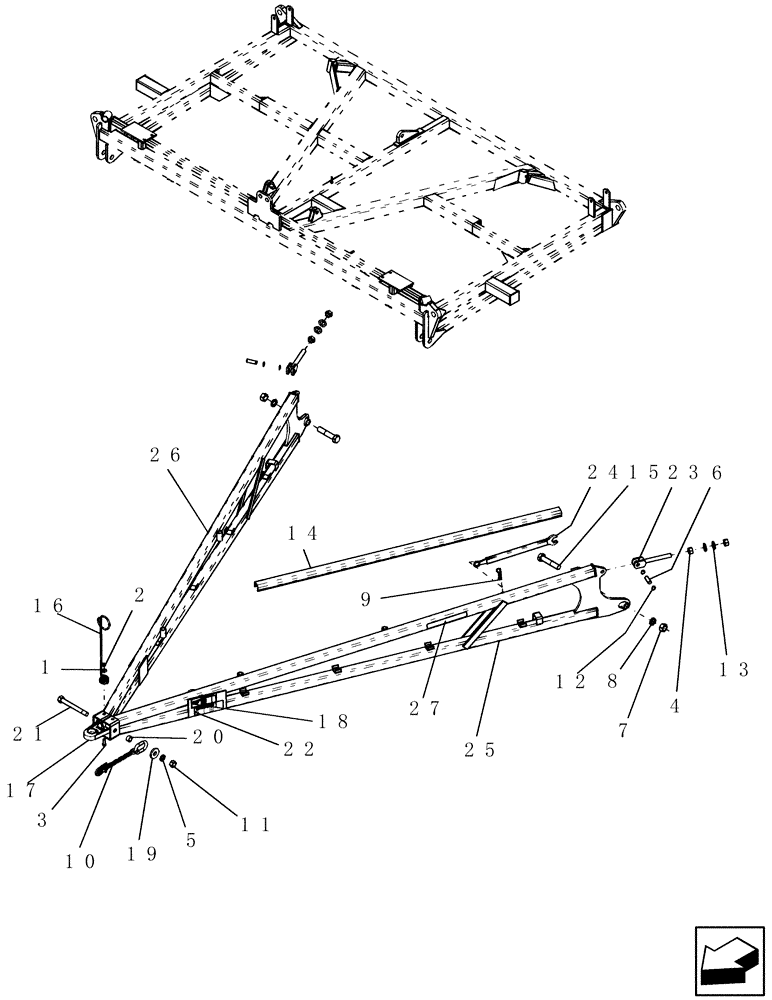

Запчасти Case IH PTX300 (1.010.1) - HITCH ASSEMBLY (12) - FRAME

1

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

2

85700693

NUT,5/8" - 11, Gr C

1шт.

3

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

4

9849649

NUT,1 1/4"-7, G5

4шт.

5

84086

LOCK WASHER,32.08mm ID x 45.47mm OD x 7.95mm Thk

1шт.

6

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

2шт.

7

425-1024

NUT,1 1/2"-6, G5

2шт.

8

3563

LOCK WASHER

1 1/2"

2шт.

9

3682

HAIR PIN COTTER

.243" x 4"

1шт.

10

63506C3

CHAIN (AG)

20,200 lb safety

1шт.

11

86625082

NUT,1 1/4"-12, G5

1шт.

12

87019495

SNAP RING,#98, Ext

4шт.

13

8013

WASHER

1 1/2" id 2 1/2" 1/4"

4шт.

14

8822

COVER

pvc hydraulic hose - 105"

1шт.

15

9219

BOLT

1 1/2"-6 x 7 1/2" G5

2шт.

16

87506300

HOLDER

spring, hydraulic hose

1шт.

17

87506259

TONGUE

hitch

1шт.

18

GD-500.77

CAUTION DECAL

hydraulics

1шт.

19

ND-585

WASHER

safety chain

1шт.

20

ND-586

SPACER

safety chain

1шт.

21

ND-587

BOLT

1 1/4"-12 x 11 1/4"

1шт.

22

TC-500.13

DECAL

warning, Serial Range: --avoid

1шт.

23

TH-313

ADJUSTER

hitch

2шт.

24

TH-389

ADJUSTING WRENCH

1шт.

25

446566A1

FRAME

hitch LH

1шт.

26

446583A1

FRAME

hitch RH

1шт.

27

446600A1

DECAL

PTX300 LH

1шт.

27

446601A1

DECAL

PTX300 RH

1шт.
