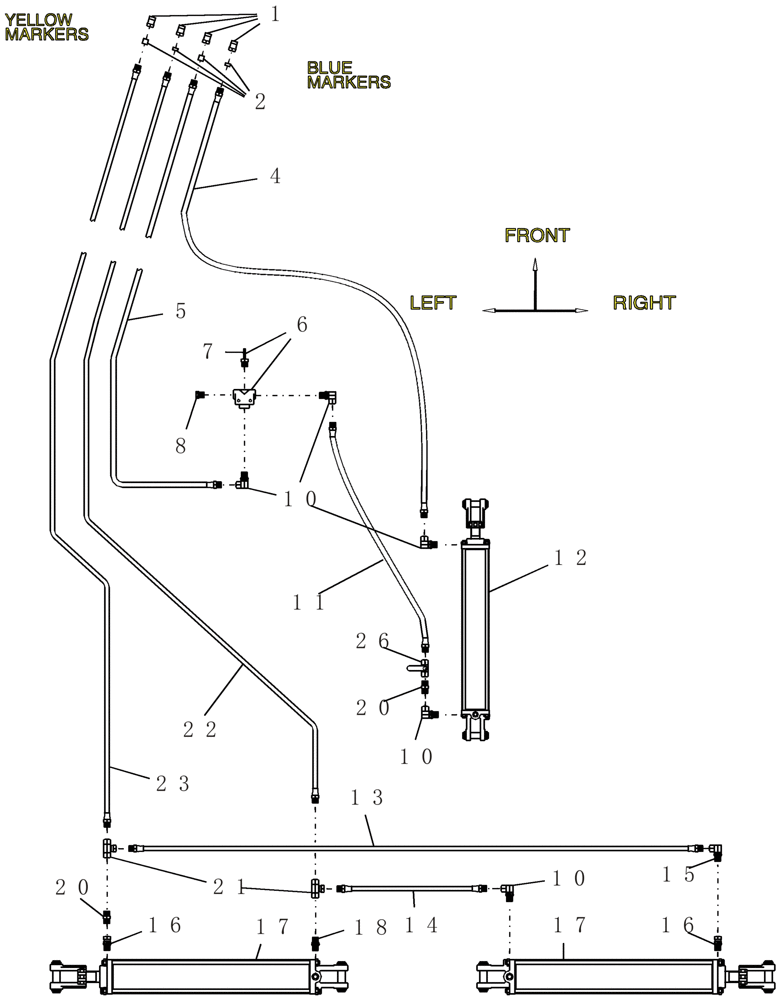

Запчасти Case IH PTX300 (2.010.1) - 3 SECTION HYDRAULICS (07) - HYDRAULICS

1

9412

QUICK MALE COUPLING

1/2"

4шт.

2

ND-059

KIT

hose color coding

1шт.

Blue Markers are for the Depth Control Circuit. Yellow Markers are for the Wing Control Circuit

1шт.

4

4092

HYDRAULIC HOSE

1/2" x 388" fl, 1/2" mpt x 1/2" mpt

1шт.

5

8155

HYDRAULIC HOSE,0.50" ID x 244.00", SAE J517

1/2" x 244" fl, 1/2" mpt x 1/2" mpt

1шт.

6

51200150

CONTROL VALVE

depth stop assembly complete

1шт.

Includes 6284

1шт.

7

6284

CARTRIDGE

valve depth stop

1шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

10

3568

ELBOW

stl 90º 1/2"mb 1/2"fpx

6шт.

11

7987

HYDRAULIC HOSE,0.50" ID x 114.00", SAE J516

1/2" x 114" fl, 1/2" mpt x 1/2" mpt

1шт.

12

9652

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 610mm Stroke

4" x 24" Monarch 3000 psi no pins 1 3/4" rod 1/2" fb ports inline

1шт.

Refer to 4 x 24 Cylinder page for details

1шт.

12

9652R

REMAN-HYD CYLINDER

PTX300 CHISEL PLOW, 4" x 24" Monarch 3000 psi no pins 1 3/4" rod 1/2" fb ports inline (6/02-7/05)

1шт.

12

9652C

CORE-HYD CYLINDER

Return Number

1шт.

13

4122

HYDRAULIC HOSE

3/8" x 97" fl, 1/2" mpt x 1/2" mpt

1шт.

14

22617

HYDRAULIC HOSE,0.38" ID x 27.00", SAE J517, SAE J516, SAE J1273, SAE J517

3/8" x 27" fl, 1/2" mpt x 1/2" mpt

1шт.

15

87331082

FITTING

90º, 1/2" NPTF Male x 1/2" NPSM Fem Sw

1шт.

16

6550

RESTRICTOR

hydraulic - swivel

2шт.

17

87437292

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 812.8mm Stroke

4" x 32" mon 3000 psi without pins

2шт.

Used with 6 Foot Wings

1шт.

Refer to 4" X 32" Cylinder page for details

1шт.

87437292R

REMAN-HYD CYLINDER

PTX300 (6/02-7/05)

2шт.

87437292C

CORE-HYD CYLINDER

Return Number

1шт.

17

87437293

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5" x 30" Monarch 3000 psi without pins

2шт.

Used with 9 Foot Wings

1шт.

Refer to 5" X 30" Cylinder Parts page for replacement parts

1шт.

18

87331078

FITTING

1/2" morb x 1/2" mpt

1шт.

20

86637713

HYD CONNECTOR,1/2" - 14 NPT x 1/2" - 14 NPT

2шт.

21

6809

TEE

fitting, hydraulic - swivel

2шт.

22

4094

HYDRAULIC HOSE

3/8" x 300" fl, 1/2" mpt x 1/2" mpt

1шт.

23

4095

HYDRAULIC HOSE

3/8" x 276" fl, 1/2" mpt x 1/2" mpt

1шт.

26

9724

CONTROL VALVE

ball 1/2" fpt

1шт.
