Запчасти Case IH PTX300 (5.220.1) - MOUNTED HEAVY HARROW - 1/2" TINE ASSEMBLY Related Equipment

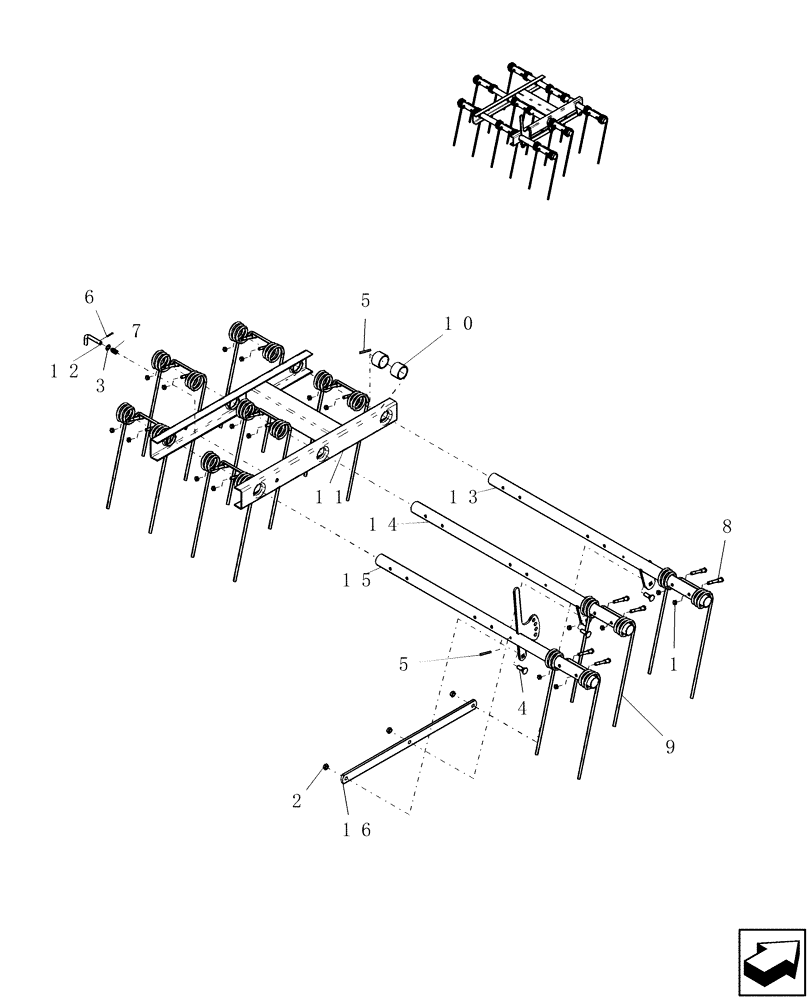

Схема запчастей Case IH PTX300 - (5.220.1) - MOUNTED HEAVY HARROW - 1/2" TINE ASSEMBLY Related Equipment
1
4
5
14
8
7
12
6
9
10
5
16
2
13
15
3
11

Артикул

Название

Примечание

Количество

1

86992215

LOCK NUT,1/2"-13, GC

18шт.

2

85700693

NUT,5/8" - 11, Gr C

3шт.

3

87325926

WASHER,0.62" ID x 1.12" OD x 0.05" Thk

5/8" id x 1 1/8" 18ga

1шт.

4

280742

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

3шт.

5

8559

PIN,5/16" x 3"

roll 5/16" x 3", Slotted

2шт.

6

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

7

21623

SPRING

compression .072'' Wire x .8'' OD x 2''

1шт.

8

87505181

BOLT

sh 1/2"-13 x 3 3/4" G5

18шт.

9

87505461

TINE

harrow 1/2" x 22" long

9шт.

10

AW-303

COLLAR

harrow tube

2шт.

11

HM-725

FRAME

heavy harrow 6'

1шт.

11

HM-731

FRAME

heavy harrow 8'

1шт.

11

HM-735

FRAME

heavy harrow 10'

1шт.

12

HM-726

PIN

angle adjustment

1шт.

13

HM-727

TUBE,FRONT BAR 6FT SECTION

harrow, front row, 6' (61" long)

1шт.

13

HM-732

TUBE,FRONT BAR 8F

harrow, front row, 8' (ong) 85" L

1шт.

13

HM-736

TUBE,FRONT BAR 10FT

harrow, front row, 10' (ong) 109" L

1шт.

14

HM-728

TUBE,MIDDLE BAR 6FT SECTION

harrow, middle row, 6' (ong) 61" L

1шт.

14

HM-733

TUBE,MIDDLE BAR 8FT

harrow, middle row, 8' (ong) 85" L

1шт.

14

HM-737

TUBE,MIDDLE BAR 10FT

harrow, middle row, 10' (ong) 109" L

1шт.

15

HM-729

TUBE,REAR BAR 6FT SECTION

harrow, rear row, 6' (ong) 61" L

1шт.

15

HM-734

TUBE,REAR BAR 8FT

harrow, rear row, 8' (ong) 85" L

1шт.

15

HM-738

TUBE,REAR BAR 10FT

harrow, rear row, 10' (ong) 109" L

1шт.

16

HM-730

ANGLE

control link

1шт.

Выбрано товаров: 24
