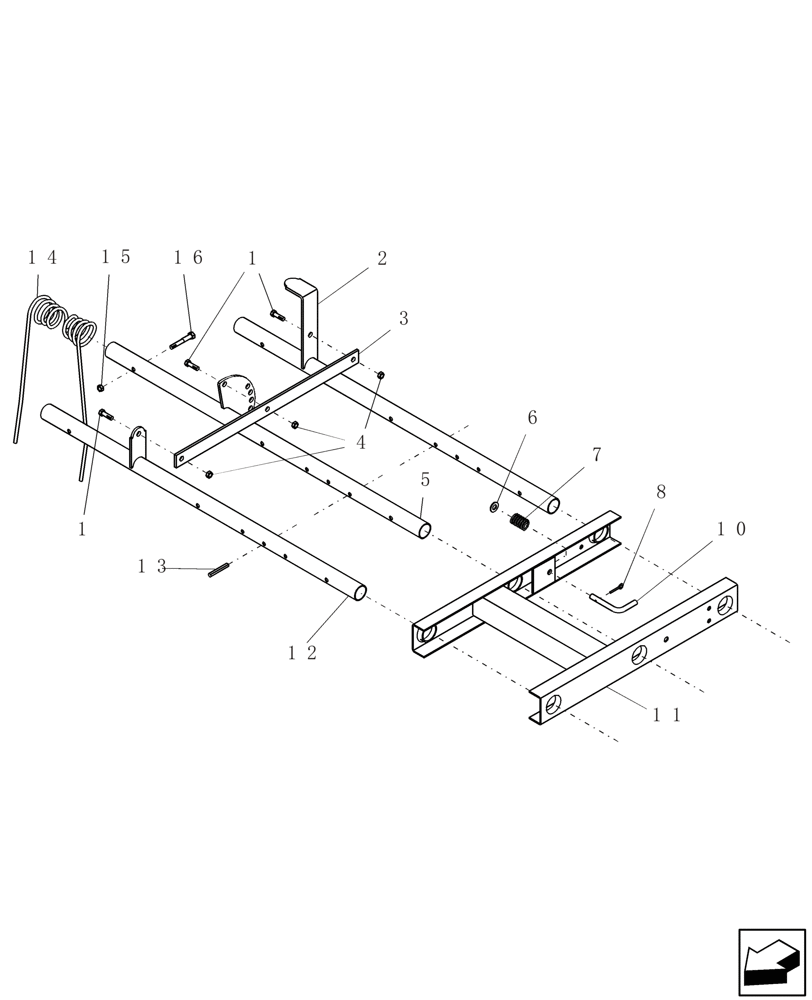

Запчасти Case IH PTX300 (5.180.1) - 3 BAR MOUNTED HARROWS WITH SPRING LOADED ANGLE LOCK 4.5 FT AND 6 FT WIDTHS Related Equipment

0

HM-530A

FRAME

harrow assembly 4' 6" - 3 bar

1шт.

Shown

1шт.

0

HM-630A

FRAME

harrow assembly 6' 3 bar

1шт.

Not Shown

1шт.

1

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

2

HM-533

TUBE,REAR TUBE 4.5FT 3 BAR

harrow, rear, 4' 6" 3 bar

1шт.

Shown

1шт.

2

HM-633

TUBE,REAR TUBE 6FT 3 BAR MOUNTED HARROW

harrow, rear, 6' 3 bar

1шт.

Not Shown

1шт.

3

FH-658

LINK

angle control - triple

1шт.

4

86992215

LOCK NUT,1/2"-13, GC

1шт.

5

HM-532

TUBE,MIDDLE TUBE 4.5FT 3 BAR

harrow, 2nd row, 4' 6" 3 bar

1шт.

Shown

1шт.

5

HM-632

TUBE,SECOND TUBE 6FT 3 BAR MOUNTED HARROW

harrow, 2nd row, 6' 3 bar

1шт.

Not Shown

1шт.

6

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

7

87505489

COMPRESSION SPRING

23/32" x 2"

1шт.

8

80755

COTTER PIN,1/8" OD x 1" L

1шт.

10

FH-657

PIN

angle adjustment 5 bar drag harrow

1шт.

11

HM-530

FRAME

harrow, 4' 6" - 3 bar

1шт.

Shown

1шт.

11

HM-630

FRAME

harrow, 6' - 3 bar

1шт.

Not Shown

1шт.

12

HM-531

TUBE,FRONT TUBE 4.5FT 3 BAR

harrow, front 4' 6" 3 bar

1шт.

Shown

1шт.

12

HM-631

TUBE,FRONT TUBE 6FT 2 BAR MOUNTED HARROW

harrow, front 6' 3 bar

1шт.

Not Shown

1шт.

13

87597

ROLL PIN,9.53mm OD x 63.5mm L, Slotted

1шт.

14

87505458

TINE

harrow, 9 w x 16 long

1шт.

15

88902

NUT,3/8"-16

1шт.

16

8946

BOLT

shoulder 3/8"-16 x 2 1/2", G5

1шт.
