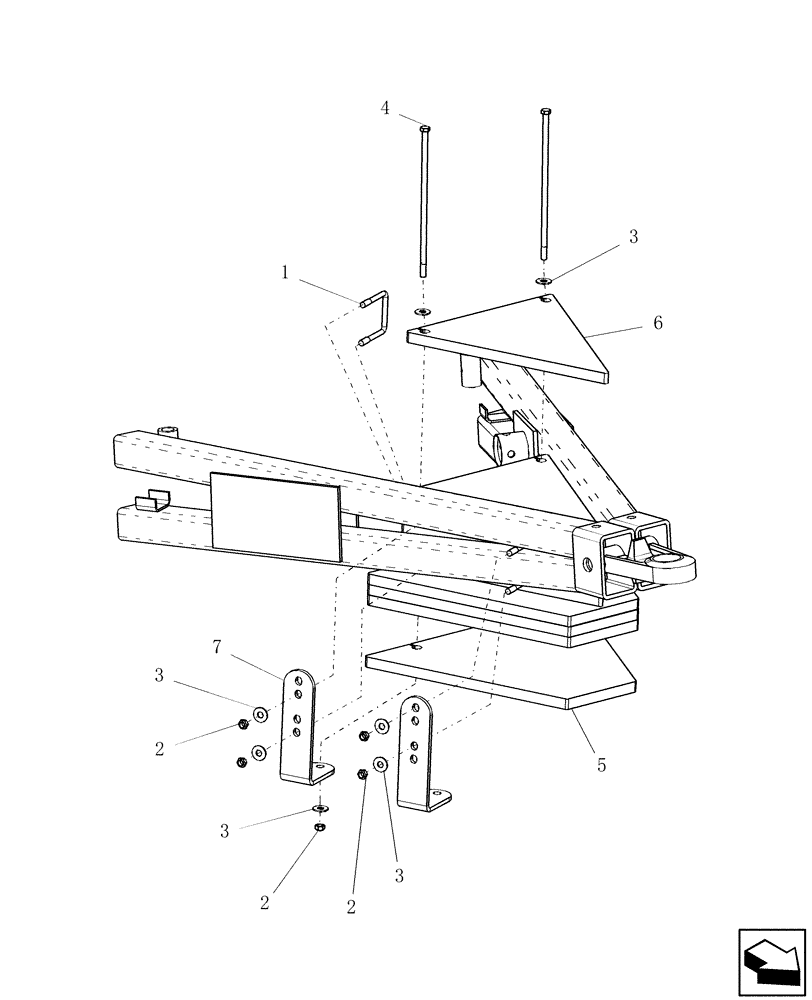

Запчасти Case IH PTX300 (4.030.1) - FRONT HITCH WEIGHT OPTION Options

1

1404

U-BOLT

us 1/4" x 3 1/8" w x 4 1/4" d 1 1/4" thread gr2

4шт.

2

86992215

LOCK NUT,1/2"-13, GC

10шт.

3

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

12шт.

4

9999

BOLT,1/2" x 14", Gr 5

2шт.

5

TH-465

WEIGHT

hitch, bottom

4шт.

6

TH-466

WEIGHT

hitch, top plate

8шт.

7

TH-467

BRACKET

mount, hitch weights

4шт.
