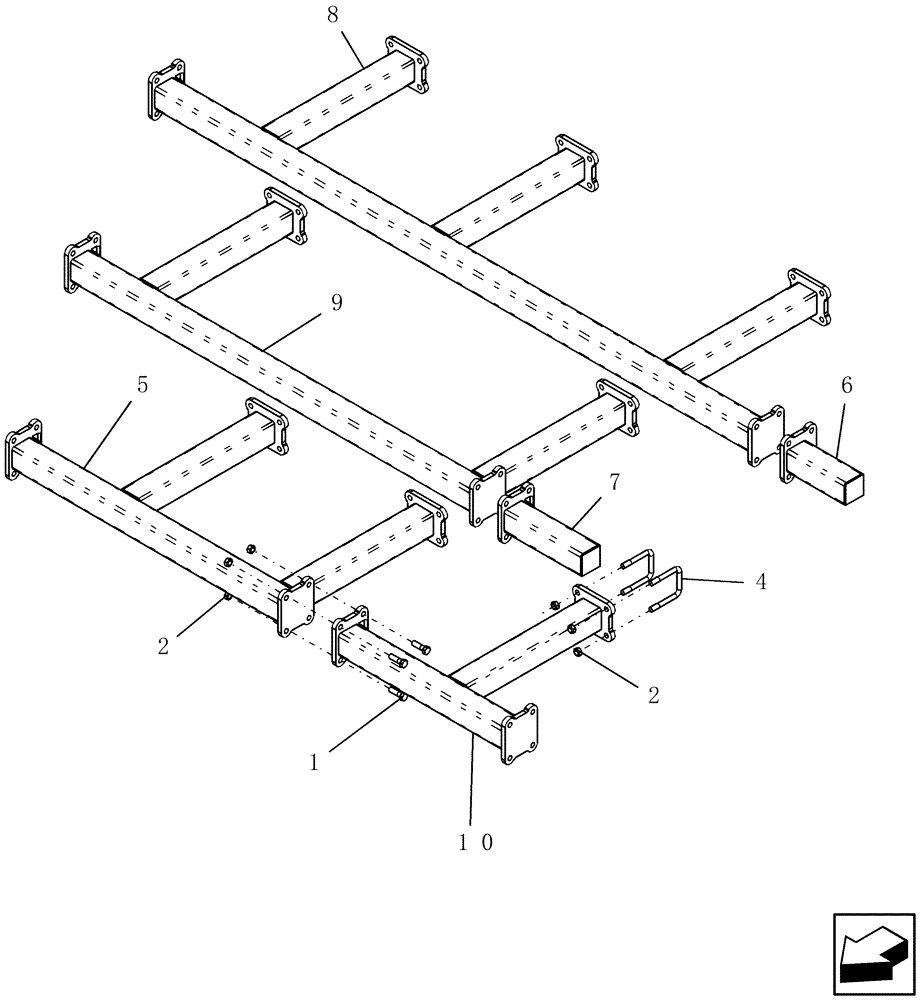

Запчасти Case IH PTX300 (4.020.1) - 4TH BAR EXTENSIONS Options

1

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

4шт.

2

280375

NUT,3/4"-10, GC

8шт.

4

7818

U-BOLT

us 3/4"-10 x 4 1/32" wide x 5 5/8" deep

2шт.

5

447050A1

FRAME

4th bar 6' wing

1шт.

6

447038A1

FRAME

stub 12"

1шт.

7

447039A1

FRAME

stub 16"

1шт.

8

447046A1

FRAME

4th bar center section

1шт.

9

447066A1

FRAME

4TH BAR 9' WING

1шт.

10

447058A1

FRAME

4th bar, C shaped

1шт.
