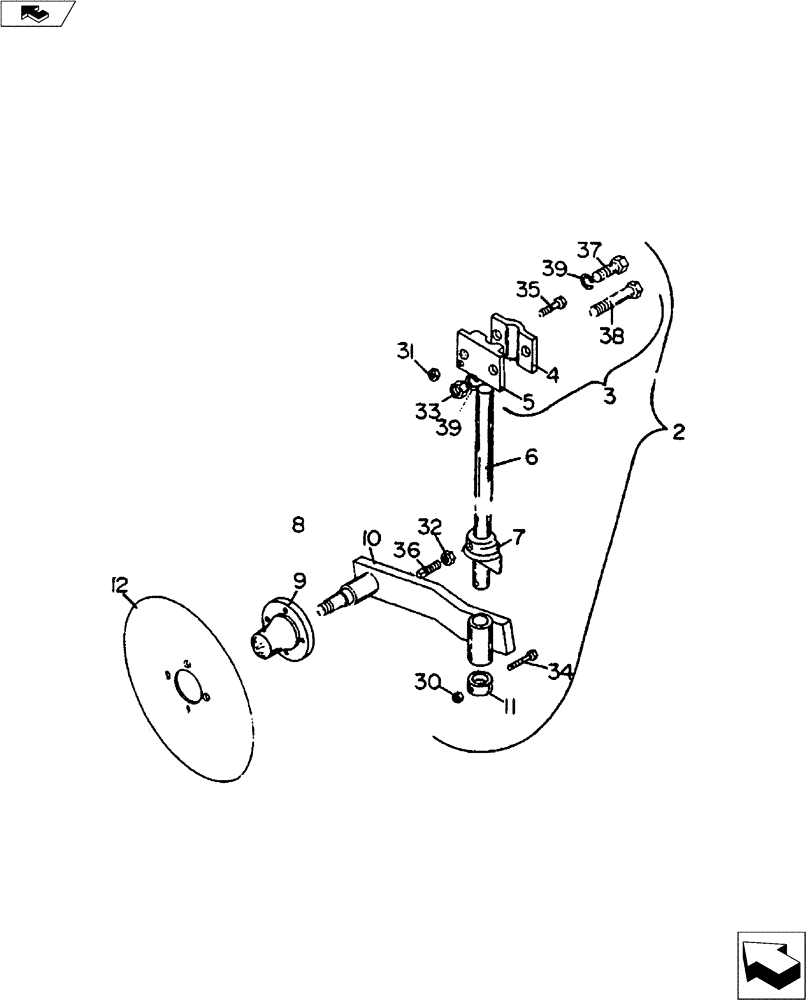

Запчасти Case IH H-SERIES (75.200.01) - RIGID COLTER ASSEMBLY (39) - FRAMES AND BALLASTING

1

09815000

KIT

Rigid Coulter Assy Complete (Not Shown)

1шт.

2

09836000

BLADE

Rigid Coulter Assy I/Coulter

1шт.

3

09844000

KIT

H-Coulter Clamp Bundle, Includes Ref. 4, 5 & Hardware

1шт.

4

20092110

CLAMP

Top Coulter

1шт.

5

20092021

CASTING

Coulter Clamp

1шт.

6

09814000

SHAFT

Coulter

1шт.

7

20092011

STOP

Coulter Pivot

1шт.

8

49573000

MOUNTING PARTS

Coulter, Includes Ref. 8 & 10

1шт.

9

28163300

HUB ASSY.

Q-633 4-Bolt

1шт.

10

49575000

MOUNTING PARTS

Coulter I/Hub

1шт.

11

49529000

PIPE

Coulter Bottom Collar

1шт.

12

443638A1

PLOW DISC

24" Coulter Blade

1шт.

30

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

1шт.

31

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

1шт.

32

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

1шт.

33

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.

34

NSS

NOT SOLD SEPARAT

3/8" x 3" NC Hex. Bolt

1шт.

35

NSS

NOT SOLD SEPARAT

7/16" x 2-1/2" NC Hex. Bolt

1шт.

36

16810064

SET SCREW

5/8" x 1-1/2" Sq. Head Gd 5

1шт.

37

NSS

NOT SOLD SEPARAT

3/4" x 2-1/2" NC Hex. Bolt

1шт.

38

NSS

NOT SOLD SEPARAT

3/4" x 4-1/2" NC Hex. Bolt Gd 5

1шт.

39

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

2шт.
