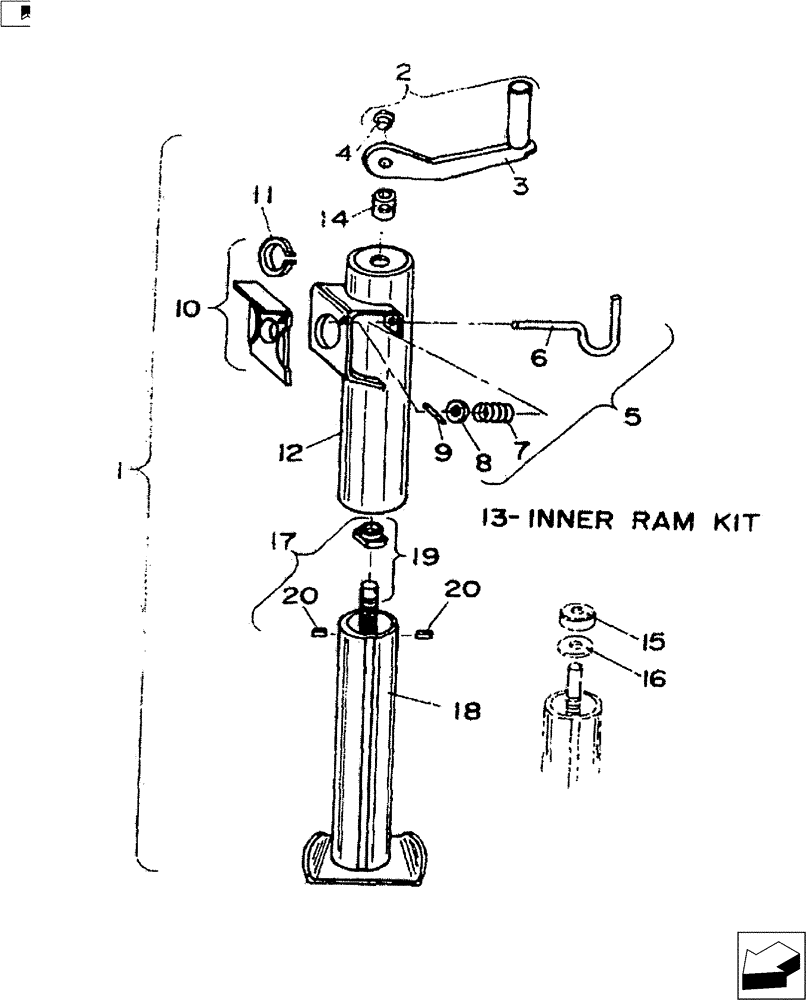

Запчасти Case IH H-SERIES (39.110.01) - JACK ASSEMBLY (39) - FRAMES AND BALLASTING

1

32230000

JACK

Swivel Top Wind 24" Height Comp

1шт.

2

32210740

CYLINDER ASSY.

Handle Replacement Kit, Includes Ref. 3 & 4

1шт.

3

NSS

NOT SOLD SEPARAT

Jack Handle

1шт.

4

NSS

NOT SOLD SEPARAT

Rivet

1шт.

5

32210330

KIT

Plunger Repair, Includes Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

Plunger Pin

1шт.

7

NSS

NOT SOLD SEPARAT

Spring

1шт.

8

NSS

NOT SOLD SEPARAT

Washer

1шт.

9

NSS

NOT SOLD SEPARAT

Cotter Pin

1шт.

10

32211010

BRACKET

Weld-On Wing, Includes Ref. 11

1шт.

11

14611237

1шт.

12

NSS

NOT SOLD SEPARAT

Outer Housing

1шт.

13

32211030

KIT

Inner Ram, Includes Ref. 4, 14 - 16 (Used on Early Style)

1шт.

14

32210750

SLEEVE

1шт.

15

21890750

THRUST BEARING

(Used on Early Style)

1шт.

16

NSS

NOT SOLD SEPARAT

Felt Washer (Used on Early Style)

1шт.

17

32210751

COVER ASSY

Inner Ram Assy, Includes Ref. 18 - 20

1шт.

18

32210752

RAM FOR CORNHEADER

Inner

1шт.

19

32210753

COVER ASSY

Screw

1шт.

20

32210754

PIN

2шт.
