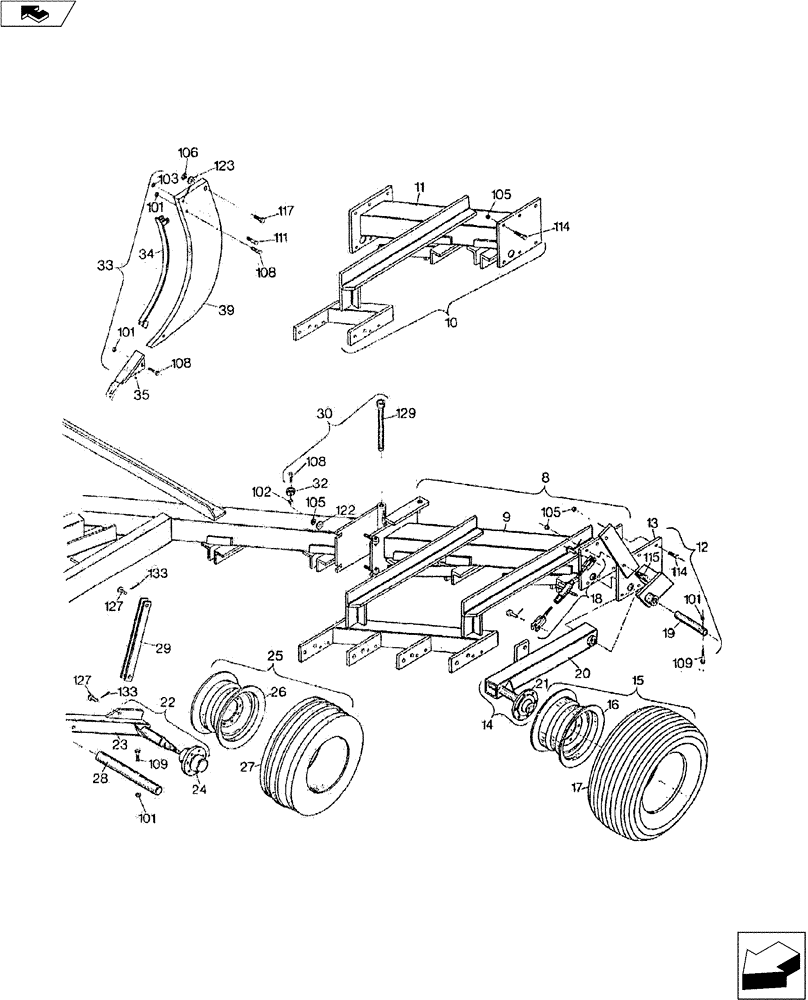

Запчасти Case IH H-SERIES (39.100.02) - MAIN FRAME ASSEMBLY (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

7-Shank V-Chisel Plow Assy Complete (Not Shown)

1шт.

1

NSS

NOT SOLD SEPARAT

9-Shank V-Chisel Plow Assy Complete (Not Shown)

1шт.

1

NSS

NOT SOLD SEPARAT

11-Shank V-Chisel Plow Assy Complete (Not Shown)

1шт.

1

NSS

NOT SOLD SEPARAT

13-Shank V-Chisel Plow Assy Complete (Not Shown)

1шт.

1

NSS

NOT SOLD SEPARAT

15-Shank V-Chisel Plow Assy Complete (Not Shown)

1шт.

3

09801000

CHOPPER BODY ASSY

Main Frame Assy (Not Shown)

1шт.

3

09801001

CHOPPER BODY ASSY

Main Frame Assy (Used On Model HRCII31 & Larger) (Not Shown)

1шт.

5

09802200

CHOPPER BODY ASSY

A-Frame Assy (Not Shown)

1шт.

7

09811000

CHOPPER BODY ASSY

Front Coulter Bar Assy (Not Shown)

1шт.

8

09820000

CHOPPER BODY ASSY

20" Hinged Wing Assy RH

1шт.

8

09821000

CHOPPER BODY ASSY

20" Hinged Wing Assy LH

1шт.

8

09822000

CHOPPER BODY ASSY

40" Hinged Wing Assy RH

1шт.

8

09823000

CHOPPER BODY ASSY

40" Hinged Wing Assy LH

1шт.

8

09824000

CHOPPER BODY ASSY

70" Hinged Wing Assy RH

1шт.

8

09825000

CHOPPER BODY ASSY

70" Hinged Wing Assy LH

1шт.

9

09820100

HINGED SIDE

20" RH Hinged Wing

1шт.

9

09821100

HINGED SIDE

20" LH Hinged Wing

1шт.

9

09822100

HINGED SIDE

40" RH Hinged Wing

1шт.

9

09823100

HINGED SIDE

40" LH Hinged Wing

1шт.

9

09824100

HINGED SIDE

70" RH Hinged Wing

1шт.

9

09825100

HINGED SIDE

70" LH Hinged Wing

1шт.

10

09818000

CHOPPER BODY ASSY

20" Wing RH Bolted Assy.

1шт.

10

09819000

CHOPPER BODY ASSY

20" Wing LH Bolted Assy.

1шт.

10

09826000

CHOPPER BODY ASSY

30" Wing RH Bolted Assy.

1шт.

10

09827000

CHOPPER BODY ASSY

30" Wing LH Bolted Assy.

1шт.

11

09818100

HINGED SIDE

20" RH Bolted Wing

1шт.

11

09819100

HINGED SIDE

20" LH Bolted Wing

1шт.

11

09826100

HINGED SIDE

30" RH Bolted Wing

1шт.

11

09827100

HINGED SIDE

30" LH Bolted Wing

1шт.

12

09830000

CHOPPER BODY ASSY

RH Gauge Wheel Assy

1шт.

12

09831000

CHOPPER BODY ASSY

LH Gauge Wheel Assy

1шт.

13

09702000

SPINDLE

RH Arm Mount

1шт.

13

09703000

SPINDLE

LH Arm Mount

1шт.

14

09828000

ARM

RH Spindle

1шт.

14

09829000

ARM

LH Spindle

1шт.

15

10110154

WHEEL

10 x 15 6-Bolt

2шт.

16

10110150

WHEEL

11 x 15 6-Bolt

2шт.

17

NSS

NOT SOLD SEPARAT

12.5 x 15 Tire

2шт.

18

32404000

TURNBUCKLE

2шт.

19

09706000

ROD

1-3/4" Dia Round x 9" Lg.

2шт.

20

09842000

ARM

RH Spindle I/Hub

1шт.

20

09843000

ARM

LH Spindle I/Hub

1шт.

21

28380301

PULLEY

803 Hub Assy

2шт.

22

09804000

ARM

RH Spindle

1шт.

22

09805000

ARM

LH Spindle

1шт.

22

09835000

ARM

RH Spindle (Used on HRCII31 & Larger)

1шт.

22

09834000

ARM

LH Spindle (Used on HRCII31 & Larger)

1шт.

23

09838000

ARM

RH Spindle I/Hub

1шт.

23

09839000

ARM

LH Spindle I/Hub

1шт.

23

09840000

ARM

RH Spindle I/Hub (Used on HRCII31 & Larger)

1шт.

23

09841000

ARM

LH Spindle I/Hub (Used on HRCII31 & Larger)

1шт.

24

28177800

HUB ASSY.

Q-778

2шт.

24

28182100

4WD AXLE ASSY

Q-821 Hub Assy (Used on HRCII31 & Larger)

2шт.

25

10010162

TYRE/TIRE

11 x 6 Wheel Assy

2шт.

26

10110166

WHEEL

10 x 16 8-Bolt

2шт.

27

NSS

NOT SOLD SEPARAT

11 x 16 Tire

2шт.

28

09308000

ROD ASSY.

2" Round x 18-5/8 Lg.

2шт.

29

09817000

LINK/SHACKLE

Lift

2шт.

30

09820010

PIN

Hinge

2шт.

32

02613000

COLLAR

2.00 x 1.272 ID x 3/4

2шт.

33

09810000

RAIL ASSY.

Shank Assy

1шт.

33

09833000

RAIL ASSY.

Shank Assy-Hardsurfaced

1шт.

34

09808000

TIP

Wear Strip W/Hardware

1шт.

35

09807000

KIT

Chisel Point Bundle

1шт.

35

09832000

CHISEL

Point Bundle-Hardsurfaced

1шт.

39

09936000

SHANK

1шт.

41

09800010

KIT

4-16 Cylinder & Hose Bundle (Not Shown)

1шт.

41

09800011

KIT

5-16 Cylinder & Hose Bundle (Used on HRCII31 & Larger) (Not Shown)

1шт.

101

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

34шт.

102

NSS

NOT SOLD SEPARAT

1/2" NC Lock Nut

2шт.

103

NSS

NOT SOLD SEPARAT

5/8" NC Nut

1шт.

105

NSS

NOT SOLD SEPARAT

3/4 NC Hex. Nut

54шт.

106

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

1шт.

108

16008104

BOLT

1/2" x 2-1/2" NC Hex. Gd 5

32шт.

109

16008134

BOLT

1/2" x 3-1/4" NC Hex. Gd 5

4шт.

111

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

114

16012104

BOLT

3/4" x 2-1/2" NC Hex. Gd 5

40шт.

115

16012124

BOLT

3/4" x 3" NC Hex. Gd 5

2шт.

117

16014184

BOLT

7/8" x 4-1/2" NC Hex. Gd 5

1шт.

122

NSS

NOT SOLD SEPARAT

3/4" Heavy Duty Washer

4шт.

123

17614012

GROOVED BUSHING

7/8" Machinery

1шт.

127

14816180

HEADED PIN

1" x 2-7/32 EL Clevis

4шт.

129

14820755

PIN

1-1/4" Dia x 14-5/8 EL Clevis

2шт.

133

NSS

NOT SOLD SEPARAT

1/4" x 1-1/8" Lg. Cotter Pin

4шт.
