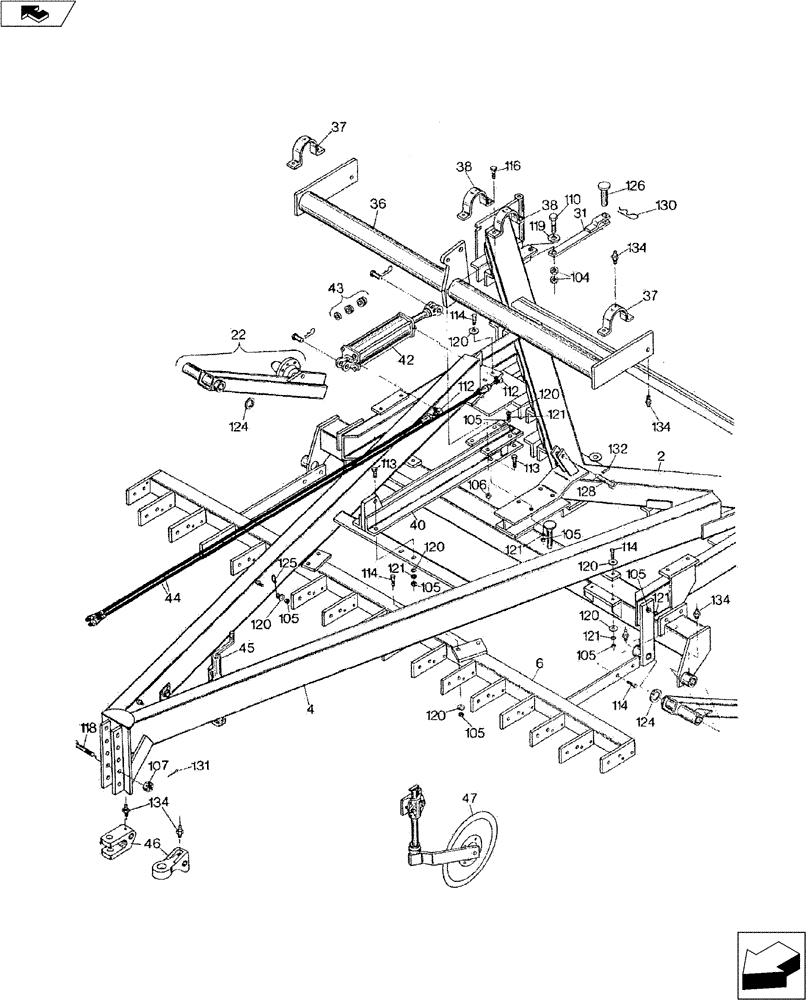

Запчасти Case IH H-SERIES (39.100.01) - MAIN FRAME ASSEMBLY (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

7-Shank V-Chisel Plow Assy Complete (Not Shown)

1шт.

1

NSS

NOT SOLD SEPARAT

9-Shank V-Chisel Plow Assy Complete (Not Shown)

1шт.

1

NSS

NOT SOLD SEPARAT

11-Shank V-Chisel Plow Assy Complete (Not Shown)

1шт.

1

NSS

NOT SOLD SEPARAT

13-Shank V-Chisel Plow Assy Complete (Not Shown)

1шт.

1

NSS

NOT SOLD SEPARAT

15-Shank V-Chisel Plow Assy Complete (Not Shown)

1шт.

2

09801100

FRAME

Main

1шт.

3

09801000

CHOPPER BODY ASSY

Main Frame (Not Shown)

1шт.

3

09801001

CHOPPER BODY ASSY

Main Frame (Used On Model HRCII31 & Larger) (Not Shown)

1шт.

4

09802100

A-Frame

1шт.

5

09802200

CHOPPER BODY ASSY

A-Frame (Not Shown)

1шт.

6

09811100

BAR

Front Coulter

1шт.

7

09811000

CHOPPER BODY ASSY

Front Coulter Bar (Not Shown)

1шт.

22

09804000

ARM

RH Spindle

1шт.

22

09805000

ARM

LH Spindle

1шт.

22

09835000

ARM

RH Spindle (Used on HRCII31 & Larger)

1шт.

22

09834000

ARM

LH Spindle (Used on HRCII31 & Larger)

1шт.

31

09801221

LINK

5-1/2" Wing Transport

2шт.

31

09801231

LINK

13" Wing Transport

2шт.

31

09801241

LINK

33" Wing Transport

2шт.

36

09806000

FRAME

Lift Tube

1шт.

37

09503000

CLAMP

Outer Tube

2шт.

38

09504100

CLAMP

Inner Tube

2шт.

40

09803000

TUBE

Cylinder Mount

1шт.

41

09800010

KIT

4-16 Cylinder & Hose Bundle (Not Shown)

1шт.

41

09800011

KIT

5-16 Cylinder & Hose Bundle (Used on HRCII31 & Larger) (Not Shown)

1шт.

42

25040160

4" Dia x 16"

1шт.

42

25050160

5" Dla x 16"

1шт.

43

25800020

KIT

Cylinder Stroke Control

1шт.

44

25600897

HOSE

1/2 Hydraulic x 162-1/2 Lg.

2шт.

45

32230000

JACK

1шт.

46

20092071

ADJUSTABLE CLEVIS

Single

1шт.

46

20092051

CLEVIS

Double (Optional)

1шт.

47

09815000

KIT

Rigid Coulter Bundle

1шт.

47

09816000

KIT

Spring Coulter Bundle

1шт.

104

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

2шт.

105

NSS

NOT SOLD SEPARAT

3/4 NC Hex. Nut

54шт.

106

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

1шт.

107

NSS

NOT SOLD SEPARAT

1-14" NC Slotted Hex. Nut

1шт.

110

NSS

NOT SOLD SEPARAT

5/8" x 2" NC Hex. Bolt Gd 2

2шт.

112

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

2шт.

113

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

6шт.

114

16012104

BOLT

3/4" x 2-1/2" NC Hex. Gd 5

40шт.

116

413-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 5

8шт.

118

16902027

SPECIAL PIN

1-1/4" x 6-1/2" NC Hex.

1шт.

119

NSS

NOT SOLD SEPARAT

5/8" Flat Washer

4шт.

120

NSS

NOT SOLD SEPARAT

3/4" Std Washer

24шт.

121

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

24шт.

124

17632020

BUSHING

2" Machinery

1шт.

125

22306020

PIN

Pig Tail

2шт.

126

14810171

PIN

5/8" x 2-3/32" EL

2шт.

128

14816395

CLEVIS

1" x 4-7/8"

1шт.

130

NSS

NOT SOLD SEPARAT

1/8" x 2" #11 Hair Pin

2шт.

131

NSS

NOT SOLD SEPARAT

3/16" x 2-1/2" Lg. Cotter Pin

1шт.

132

NSS

NOT SOLD SEPARAT

3/16" x 3" #8 Hair Pin

1шт.

134

219-86

LUBE NIPPLE,1/8" NPTF

6шт.
