(35.100.02) - HYDRAULIC CYLINDER - 5" X 16"

Запчасти Case IH H-SERIES (35.100.02) - HYDRAULIC CYLINDER - 5" X 16" (35) - HYDRAULIC SYSTEMS

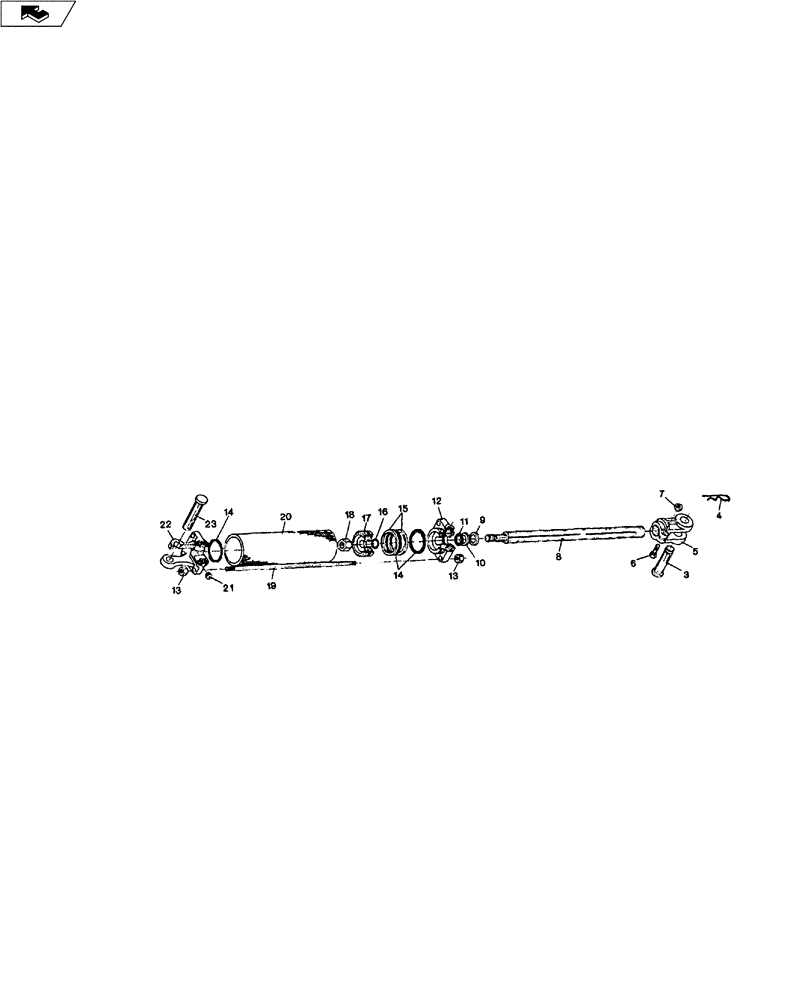

Схема запчастей Case IH H-SERIES - (35.100.02) - HYDRAULIC CYLINDER - 5" X 16" (35) - HYDRAULIC SYSTEMS
6
19
18
15
23
9
12
3
13
17
13
20
5
16
21
11
10
7
4
14
22
7
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25050160

5" x 16" Cylinder (Not Shown)

1шт.

2

25805001

WIPER SEAL

Kit for 5" Bore w/2" Rod (Not Shown)

1шт.

3

14820351

CLEVIS PIN

1-1/4" Dia x 3-1/4" EL

1шт.

4

NSS

NOT SOLD SEPARAT

1/8" #11 Hair Pin

2шт.

5

25804002

SHAFT

Clevis Casting End

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25805003

PISTON ROD

2" For 16" Stroke Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

25805001

WIPER SEAL

Cylinder Head

1шт.

13

NSS

NOT SOLD SEPARAT

3/4" NF Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

15

NSS

NOT SOLD SEPARAT

Back-Up Seal

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

17

25805005

PISTON

1шт.

18

14002002

NUT

1-1/4" NF Hex.

1шт.

19

25805006

THREADED TIE-ROD

4шт.

20

25805007

BARREL

For 5"x 16" Cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

3/8" NPT Pipe Plug

1шт.

22

25805008

1шт.

23

14820352

CLEVIS PIN

1-1/4" x 3-3/4" EL

1шт.
