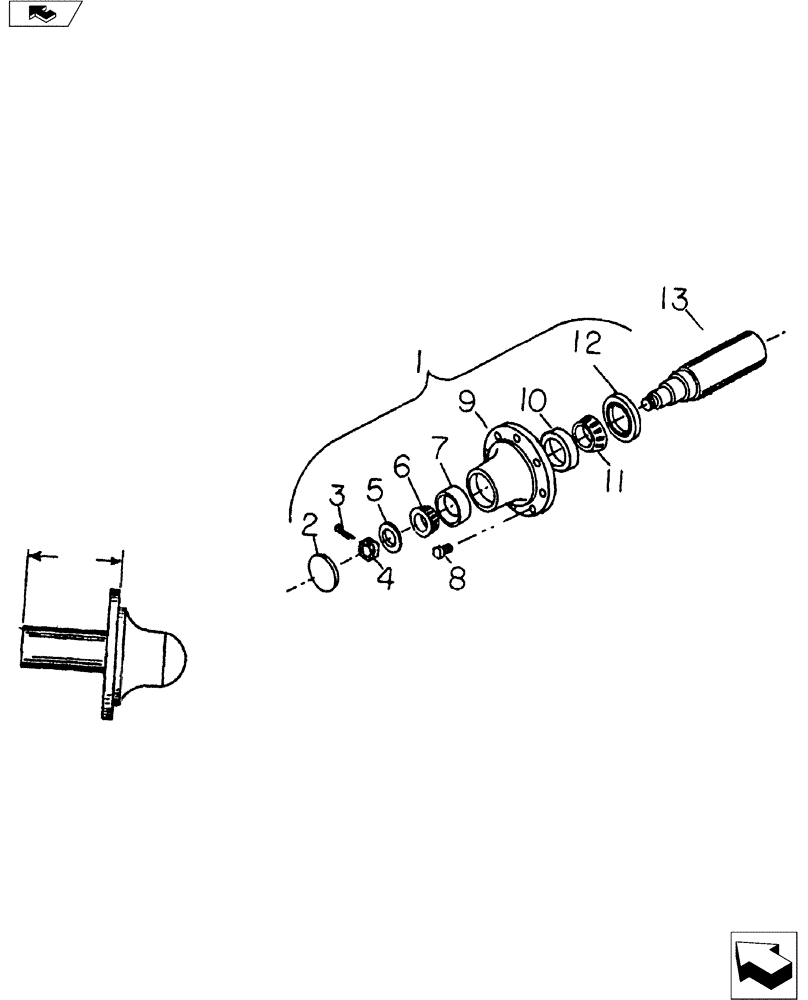

Запчасти Case IH H-SERIES (44.100.02) - Q-778 HUB AND SPINDLE ASSEMBLY (44) - WHEELS

1

28177800

HUB ASSY.

Q-778 8-Bolt

1шт.

2

28780300

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8" SAE Washer

1шт.

6

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

1.38 Bore Timken #25877

1шт.

7

165964R1

BEARING CUP

2.875 OD Timken #25821

1шт.

8

16409053

SPECIAL BOLT

9/16" NF x 1-1/8" Lug

8шт.

9

28277800

HUB ASSY.

Q-778 8-Bolt

1шт.

10

130503H

BEARING CUP

3.27 OD Timken #25520

1шт.

11

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

1.80 Bore Timken #25590

1шт.

12

491715R91

OIL SEAL

2.00 ID x 3.63 OD - CR#521430

1шт.

13

28881311

SPINDLE

1шт.
