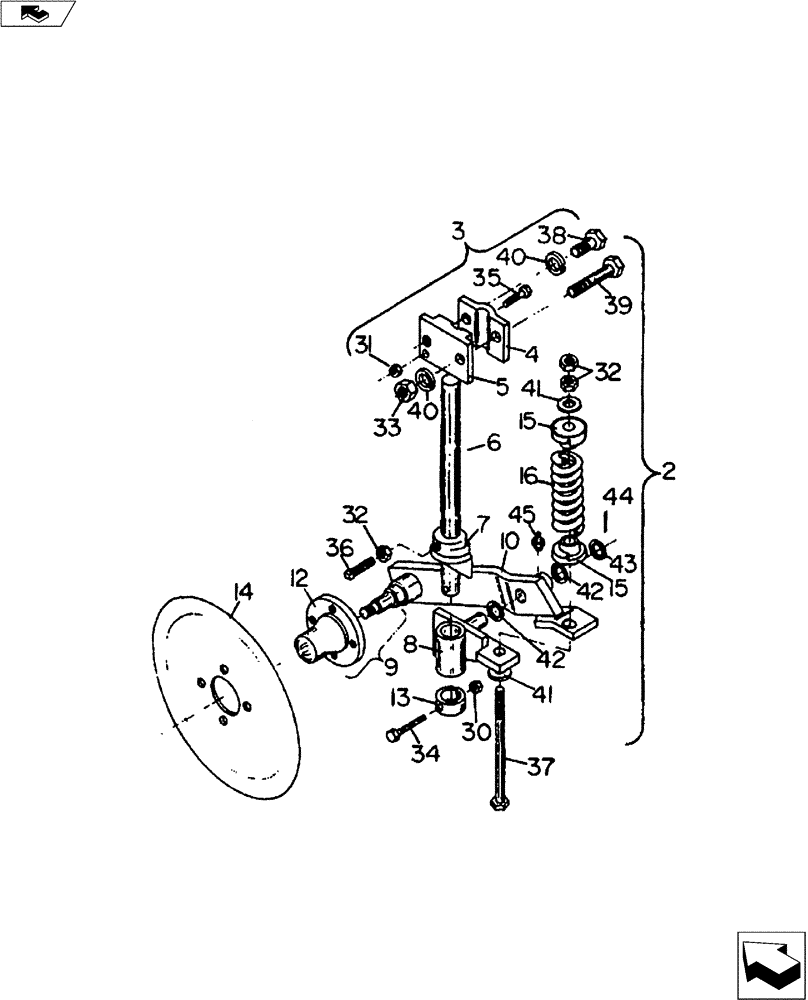

Запчасти Case IH H-SERIES (75.200.02) - SPRING-LOADED COLTER ASSEMBLY (39) - FRAMES AND BALLASTING

1

09816000

KIT

Spring Loaded Coulter Assy. Complete (Not Shown)

1шт.

2

09837000

CHOPPER BODY ASSY

Spring Loaded Coulte Plade

1шт.

3

09844000

KIT

H-Coutter Clamp Bundle, Includes Ref. 4,5, & Hardware

1шт.

4

20092110

CLAMP

Top Coulter

1шт.

5

20092021

CASTING

Coulter Clamp

1шт.

6

09814000

SHAFT

Coulter

1шт.

7

20092011

STOP

Coulter Pivot

1шт.

8

49325000

MOUNTING PARTS

Upper

1шт.

9

49326000

SUPPORTING ARM

1шт.

10

49333000

SUPPORTING ARM

I/Hub

1шт.

11

49335000

CHOPPER BODY ASSY

Spring Loaded Coulter Mounting Assy., Includes Ref. 8, 9 & Hardware (Not Shown)

1шт.

12

28163300

HUB ASSY.

Q-633 4-Bolt

1шт.

13

49529000

PIPE

Coulter Bottom Collar

1шт.

14

443638A1

PLOW DISC

24" Coulter Blade

1шт.

15

20090040

SCREW

Spring Holder Casting

2шт.

16

24156201

COMPRESSION SPRING

1шт.

30

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

1шт.

31

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

1шт.

32

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

3шт.

33

NSS

NOT SOLD SEPARAT

3/4" NC Jam Nut

1шт.

34

NSS

NOT SOLD SEPARAT

3/8" x 3" NC Hex. Bolt

1шт.

35

NSS

NOT SOLD SEPARAT

7/16" x 2-1/2" NC Hex. Bolt Gd 5

1шт.

36

16810064

SET SCREW

5/8" x 1-1/2" Sq. Head

1шт.

37

NSS

NOT SOLD SEPARAT

5/8" x 12 NC Hex. Bolt

1шт.

38

NSS

NOT SOLD SEPARAT

3/4" x 2-1/2 NC Hex. Bolt

1шт.

39

NSS

NOT SOLD SEPARAT

3/4" x 4-1/2" NC Hex. Bolt Gd 5

1шт.

40

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

2шт.

41

17411012

WASHER

21/32" ID x 1-3/4" OD 0.240 Thick

2шт.

42

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Machinery 14 Ga.

1шт.

43

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Machinery 10 Ga.

1шт.

44

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Cotter Pin

1шт.

45

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.
