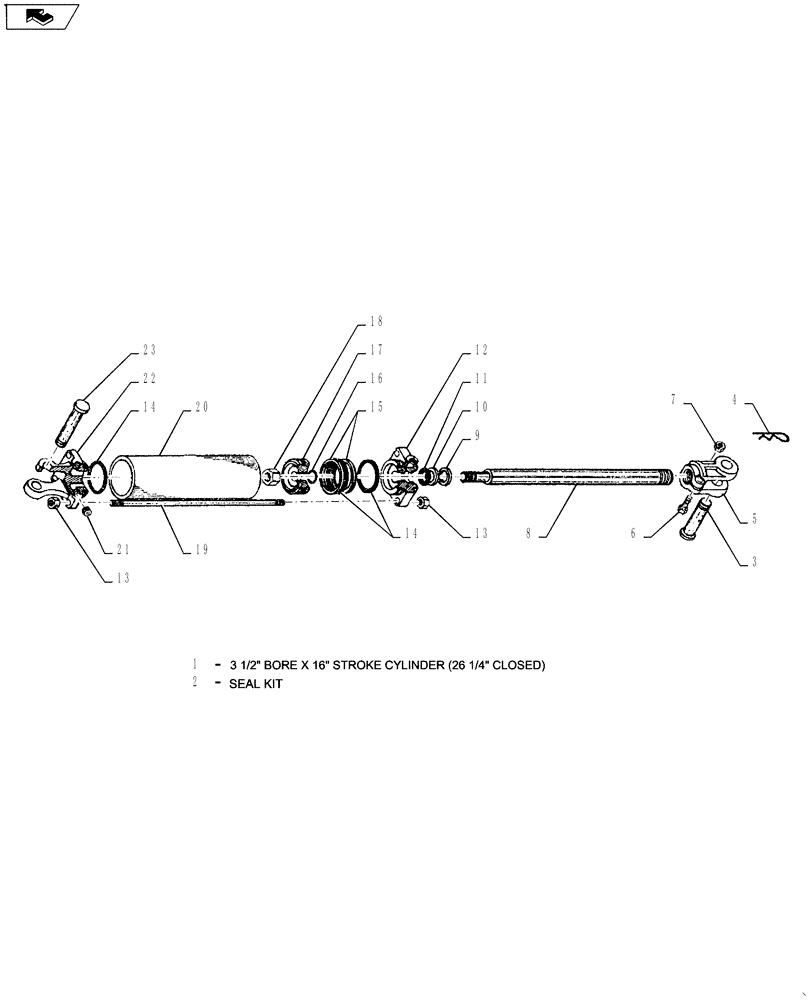

Запчасти Case IH COULTER CHAMP (35.100.04) - HYDRAULIC CYLINDER - 3-1/2" X 16" (35) - HYDRAULIC SYSTEMS

1

25035161

3-1/2" x 16", 26-1/4" Closed

1шт.

2

25803507

KIT

Seal For 3-1/2" Bore W/1-1/4 ø Rod

1шт.

3

14816229

CLEVIS PIN

1 øx 2-3/4 E.L. (Hardened)

1шт.

4

NSS

NOT SOLD SEPARAT

1/8 ø # 11 Hair Pin

2шт.

5

25803001

SHAFT

Clevis Casting, Rod End

1шт.

6

NSS

NOT SOLD SEPARAT

3/8 x 1-3/4 NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8 NC Hex. Lock Nut

1шт.

8

25803513

SHAFT

1 1/4 ø Rod For 16" Stroke Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal, See Ref. 2

1шт.

10

NSS

NOT SOLD SEPARAT

Back- Up Washer, See Ref. 2

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

12

25803501

SHAFT

Cylinder Head

1шт.

13

NSS

NOT SOLD SEPARAT

1/2 NF Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-Up Seal, See Ref. 2

2шт.

17

25803502

PISTON

1шт.

18

NSS

NOT SOLD SEPARAT

7/8 NF Hex. Nut

1шт.

19

25803511

THREADED TIE-ROD

4шт.

20

25803512

BARREL

For 3 1/2" Bore x 16" Stroke Cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

1/2 NPT Pipe Plug

1шт.

22

25803505

YOKE

Cylinder Base

1шт.

23

14816242

1 ø x 3 E.L. (Hardened)

1шт.
