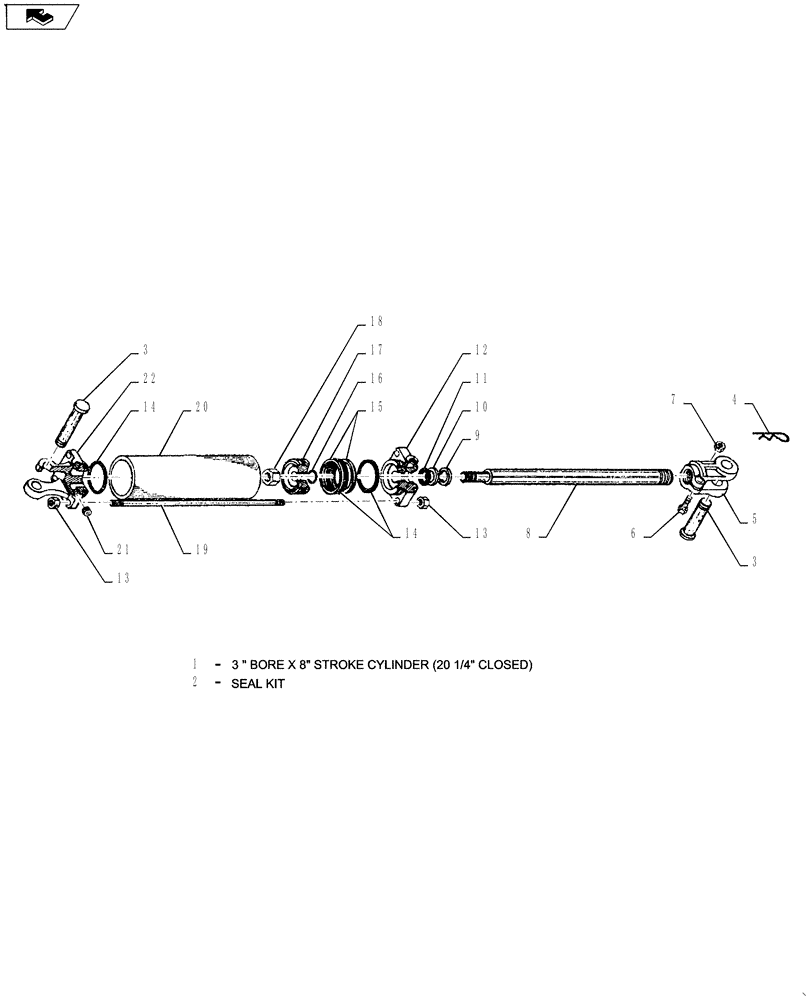

Запчасти Case IH COULTER CHAMP (35.100.02) - HYDRAULIC CYLINDER - 3" X 8" (35) - HYDRAULIC SYSTEMS

1

25030081

HYDRAULIC CYLINDER

3" x 8", 20-1/4" Closed

1шт.

2

25803007

KIT

Seal - 1-1/4" ø Rod

1шт.

3

14816221

1" ø x 2-3/4" E.L.

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" ø Hair Pin

2шт.

5

25803001

SHAFT

Clevis

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" Nc Capscrew

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25802503

1-1/4" ø

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal, See Ref. 2

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer, See Ref. 2

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

12

25803002

Cylinder Head - 1/2" NPT Ports

1шт.

12

25803025

SHAFT

Cylinder Head - 3/4" SAE Ports

1шт.

13

NSS

NOT SOLD SEPARAT

1/2" NF Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal, See Ref. 2

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

17

25803003

SHAFT

Piston

1шт.

18

NSS

NOT SOLD SEPARAT

3/4" NF Hex. Nut

1шт.

19

25803004

THREADED TIE-ROD

4шт.

20

25803005

BARREL

1шт.

21

NSS

NOT SOLD SEPARAT

1/2" NPT Plug

1шт.

21

NSS

NOT SOLD SEPARAT

3/4" SAE Plug

1шт.

22

25803006

YOKE

Cylinder Base - 1/2" NPT Ports

1шт.

22

25803026

SHAFT

Cylinder Base - 3/4" SAE Ports

1шт.
