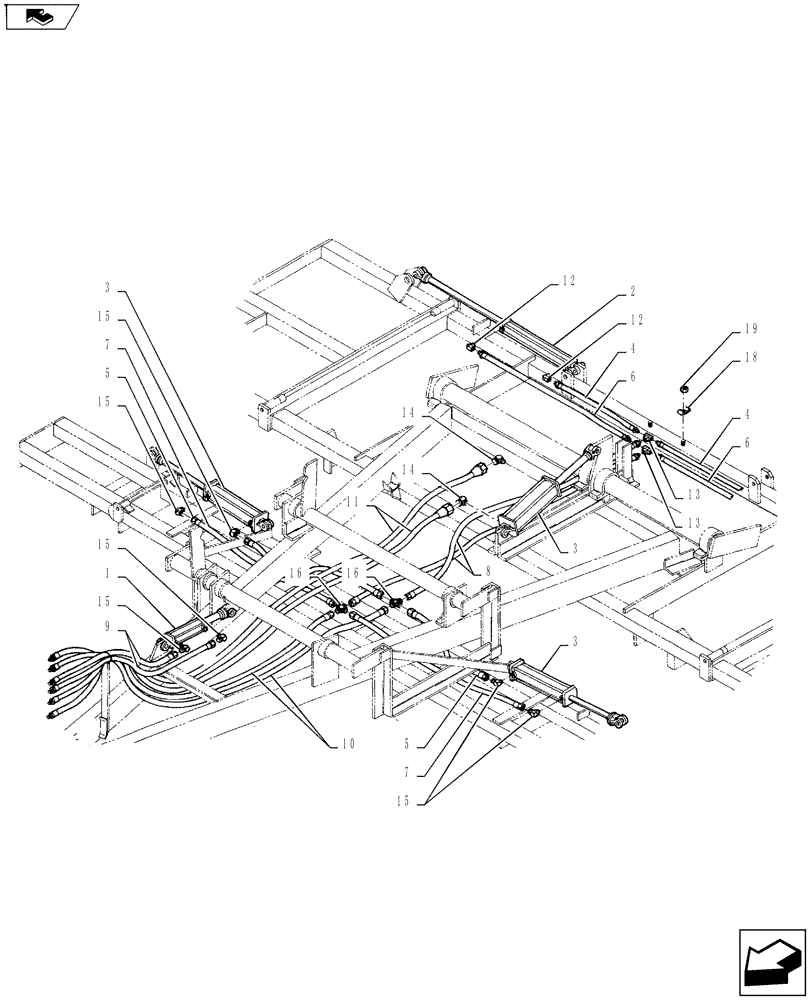

Запчасти Case IH COULTER CHAMP (35.100.01) - HYDRAULIC ASSY (35) - HYDRAULIC SYSTEMS

1

25030081

HYDRAULIC CYLINDER

3" x 8"

1шт.

See Figure 35.100.02

1шт.

2

25030241

HYDRAULIC CYLINDER

3" x 24"

2шт.

See Figure 35.100.03

1шт.

3

25030166

HYDRAULIC CYLINDER

3" x 16"

1шт.

See Figure 35.100.05

1шт.

3

25035161

3 1/2" x 16"

3шт.

See Figure 35.100.04

1шт.

4

25600639

WIRE

3/8" Hyd. x 39" Long

2шт.

5

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

2шт.

6

25600666

WIRE

3/8" Hyd. x 66" Long

2шт.

7

25600678

HYDRAULIC HOSE,0.38" ID x 78.00", SAE 100R17

2шт.

8

25600688

HOSE

3/8" Hyd. x 110" Long

2шт.

9

25600685

3/8" Hyd. x 144" Long

2шт.

10

25600689

HOSE

3/8" Hyd. x 220" Long

2шт.

11

25600894

1/2" Hyd. x 252" Long

2шт.

12

15000372

3/8" NPTF x 1/2" NPTM 90°

4шт.

12

25707504

3/8" NPTF x 3/4" SAEM 90°

4шт.

13

15050371

TEE

3/8" NPTF

2шт.

14

25707508

ELBOW

1/2" NPTM x 7/8" JICM 90°

2шт.

14

25707524

3/4" SAEM x 718" JICM 90°

2шт.

15

25707511

ELBOW

1/2" NPTM x 3/4' JICM 90°

6шт.

15

25707521

ELBOW

3/4" SAEM x 3/4" JICM 90°

6шт.

16

25707516

UNION

3/4" JICM Cross

2шт.

17

25800010

CYLINDER

Stroke Control Segments-1 1/4" Ø Rod

1шт.

17

25800030

CYLINDER

Stroke Control Segments-1 1/2" Ø Rod

1шт.

18

22530601

HOSE CLAMP

Double

6шт.

19

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut

6шт.
