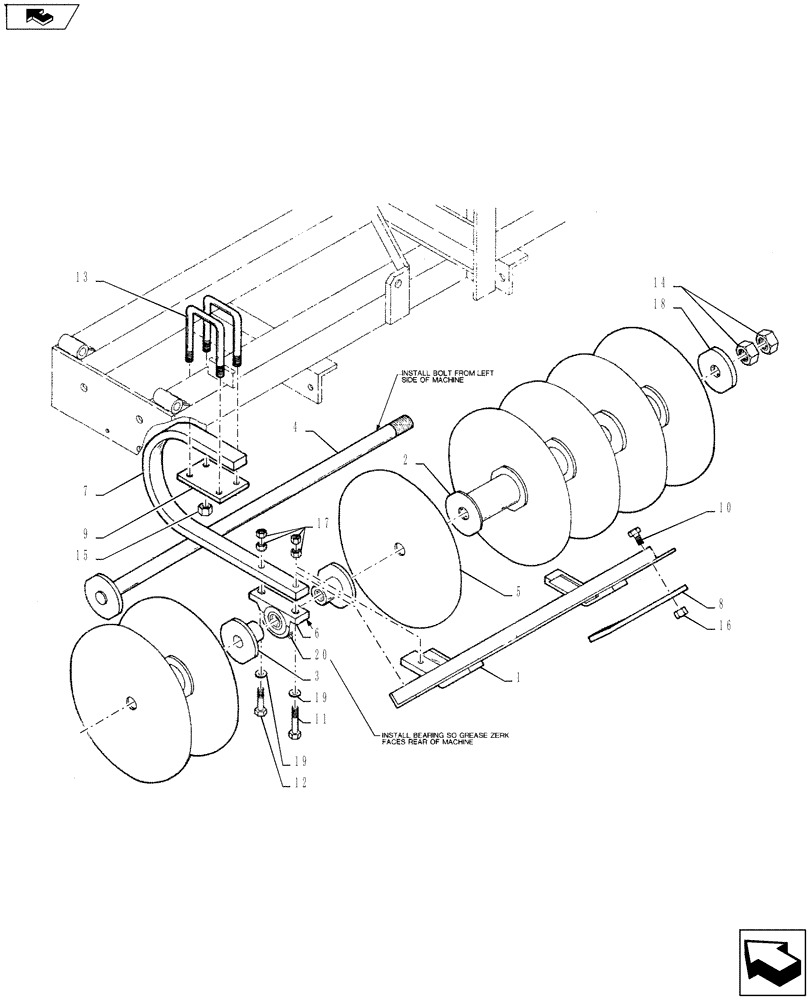

Запчасти Case IH COULTER CHAMP (75.200.07) - COLTER GANG ASSY (75) - SOIL PREPARATION

1

09570500

5 Gang

1шт.

1

09570600

SCRAPER

7 Gang Mount

1шт.

1

09570700

SCRAPER

9 Gang Mount

1шт.

2

09570100

1шт.

3

09570200

SPACER

Bearing

4шт.

4

16902722

1 1/2" x 33" NC

1шт.

4

16902423

PLOW BOLT

1 1/2" x 48" NC

1шт.

4

16902424

PLOW BOLT

1 1/2" x 63" NC

1шт.

5

33502045

PLOW DISC

20" Colter Blade

1шт.

6

21811505

2шт.

7

09570800

HANGER

Bearing

2шт.

8

09570400

SCOOP

Scraper

1шт.

9

09570300

2шт.

10

NSS

NOT SOLD SEPARAT

5/8" x 1 1/2" NC Capscrew

1шт.

11

16008155

1/2" x 3 3/4" NC Gd. 5

2шт.

12

16008125

BOLT

1/2" x 3" NC Gd. 5

2шт.

13

16312270

U-BOLT

BOLT "U" 3/4" x 4" x 6 3/4"

4шт.

14

NSS

NOT SOLD SEPARAT

1 1/2" NC Hex. Jam Nut

2шт.

15

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

8шт.

16

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

1шт.

17

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

8шт.

18

09570210

WASHER

1шт.

19

NSS

NOT SOLD SEPARAT

1/2" Washer

4шт.

20

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

2шт.
