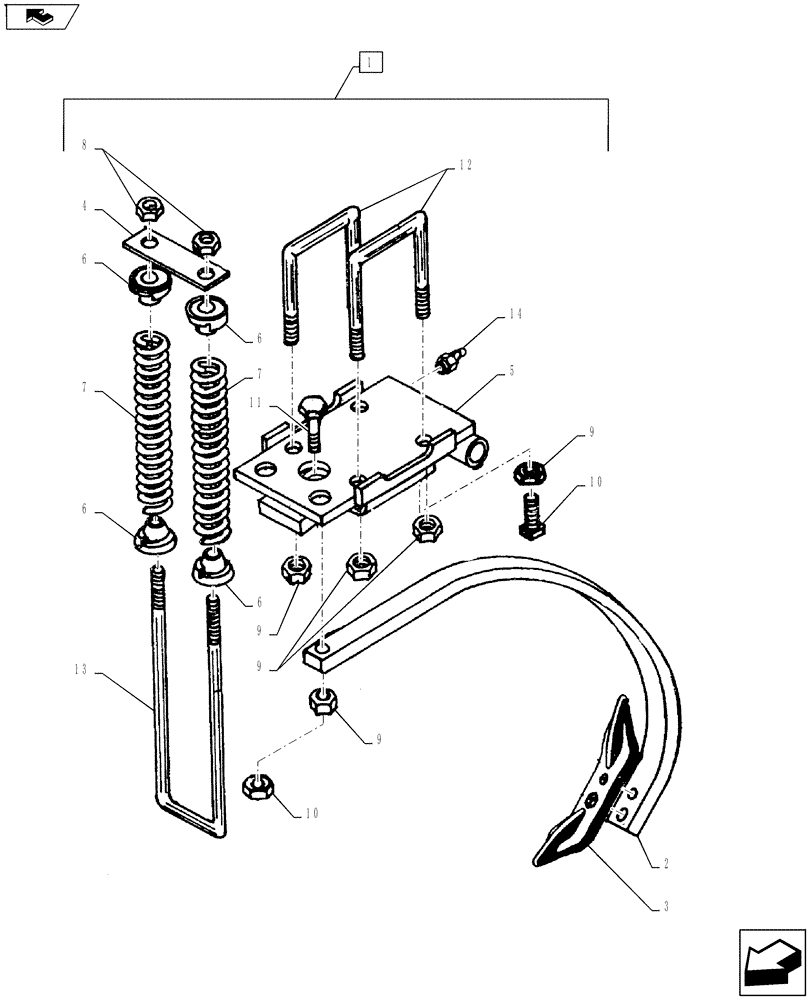

Запчасти Case IH COULTER CHAMP (75.200.06) - 32" SPRING SHANK ASSY (75) - SOIL PREPARATION

1

09350085

Spring Bundle, Includes Ref. 4-14

1шт.

2

33020032

SHANK

1-1/4" x 2" x 32"

1шт.

3

33310041

POINT

Heavy Duty Chisel W/Hardware (See Chisel Point Figure)

1шт.

4

09007000

BAR

Spacer Plate

1шт.

5

09351000

BRACKET

Spring Shank Pivot

1шт.

6

20090050

HOLDER

Spring Casting

4шт.

7

24156200

2шт.

8

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

7шт.

9

NSS

NOT SOLD SEPARAT

3/4" NC Jam Nut

2шт.

10

16812084

SET SCREW,3/4" - 10 x 2"

3/4" x 2" Sq. Hd. Set

1шт.

11

16012128

3/4" x 3" NC Gd. 8

1шт.

12

16312220

U-BOLT

3/4" NC x 4" x 5 1/2" Sq.

2шт.

13

16312770

U-BOLT

3/4" NC x 3 1/8" x 19 3/8" Sq.

1шт.

14

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.
