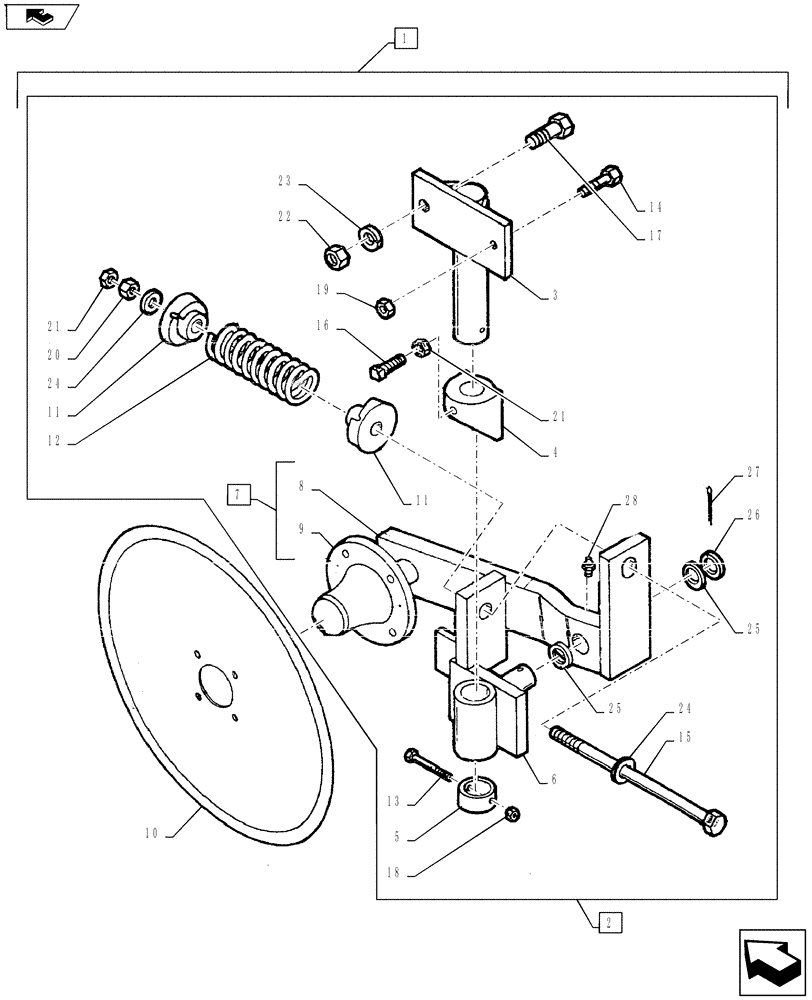

Запчасти Case IH COULTER CHAMP (75.200.05) - SPRING COLTER ASSY (75) - SOIL PREPARATION

1

09570001

Spring Loaded Assy., Includes Ref. 2-28

1шт.

2

09570000

Spring Loaded Assy., Includes Ref. 3-9, 11-28

1шт.

3

09559200

SHAFT

Colter

1шт.

4

20092011

STOP

Colter Pivot

1шт.

5

49529000

PIPE

Colter Bottom Collar

1шт.

6

49973000

1шт.

7

49974100

W/Hub

1шт.

8

49974200

Less Hub

1шт.

9

28163300

HUB ASSY.

Q-633 4-Bolt

1шт.

See Figure 44.100.01

1шт.

10

33502440

PLOW DISC

24" Colter Blade

1шт.

11

20090050

HOLDER

Spring Casting

2шт.

12

24156201

COMPRESSION SPRING

1шт.

13

NSS

NOT SOLD SEPARAT

3/8" x 3" NC Cap Screw

1шт.

14

16007084

7/16" x 2" NC Gd. 5

1шт.

15

16010480

5/8" x 12" NC

1шт.

16

16810064

SET SCREW

5/8" x 1-1/2" Sq. Head

1шт.

17

16012084

3/4" x 2" NC Gd. 5

1шт.

18

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

1шт.

19

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

1шт.

20

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

1шт.

21

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

2шт.

22

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.

23

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

1шт.

24

17411012

WASHER

11/16" ID x 1-3/4" OD x 1/4" Thick

2шт.

25

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Mach. 14 Ga.

2шт.

26

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Mach. 10 Ga.

1шт.

27

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Cotter Pin

1шт.

28

NSS

NOT SOLD SEPARAT

1/8" NPT Zerk

1шт.
