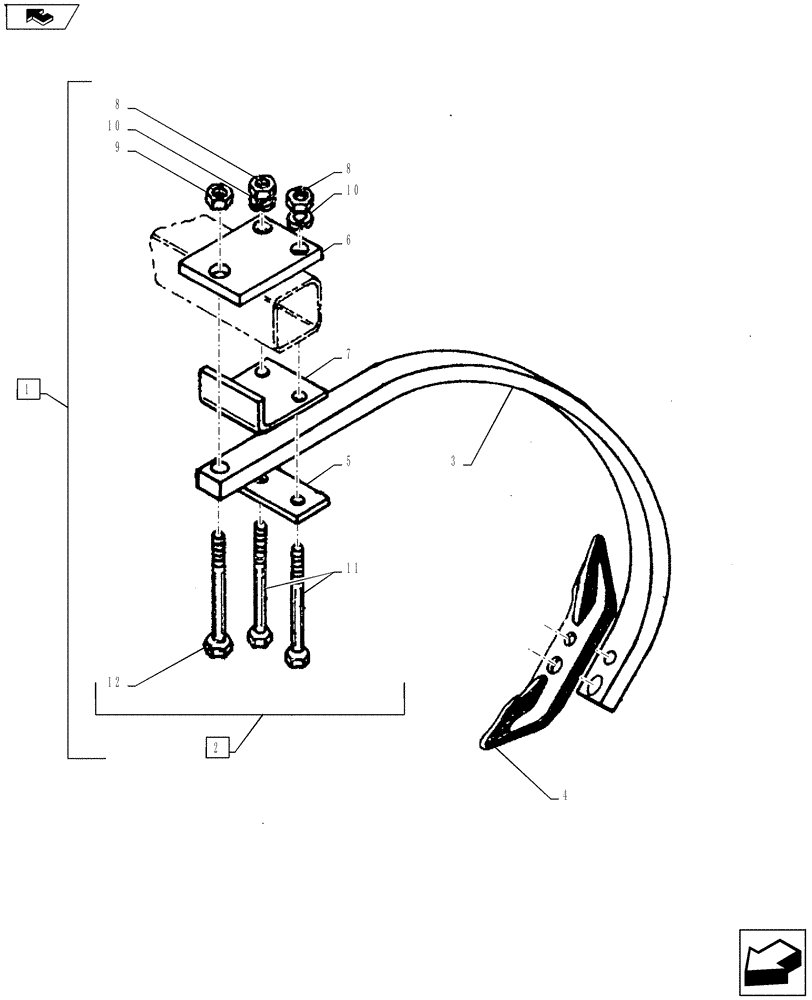

Запчасти Case IH COULTER CHAMP (75.200.02) - 32" RIGID SHANK ASSY (75) - SOIL PREPARATION

1

09222001

SHANK

32" Rigid Assy., Includes Ref. 2-3, 5-12

1шт.

2

09232000

Mounting Bundle, Includes Ref. 5-12

1шт.

3

33020032

SHANK

1-1/4 x 2 x 32"

1шт.

4

33310041

POINT

Heavy Duty Chisel W/Hardware (See Chisel Point Figure)

1шт.

5

09236000

CLAMP

Plate

1шт.

6

09213000

CLAMP

Top Plate

1шт.

7

09235000

CLAMP

Lower Shank Mounting Plate

1шт.

8

NSS

NOT SOLD SEPARAT

5/8 NC Hex. Nut

2шт.

9

NSS

NOT SOLD SEPARAT

3/4 NC Hex. Nut

1шт.

10

NSS

NOT SOLD SEPARAT

5/8 Lock Washer

2шт.

11

16010320

5/8 x 8 NC

2шт.

12

16012304

3/4 x 7 1/2 NC Gd. 5

1шт.
