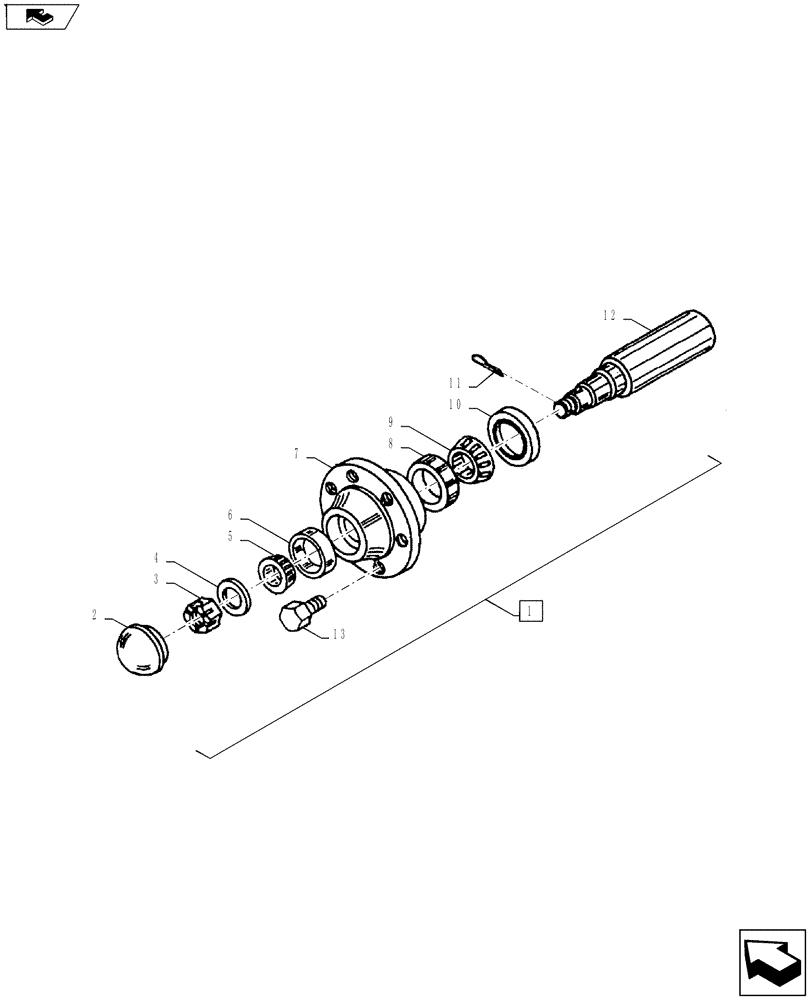

Запчасти Case IH COULTER CHAMP (44.100.02) - Q-803 HUB & SPINDLE ASSY (44) - WHEELS

1

28180300

HUB ASSY.

Q-803, 6-Bolt, Includes Ref. 2-11 & 13

1шт.

2

28480300

CAP

Dust

1шт.

3

NSS

NOT SOLD SEPARAT

7/8 NF Slotted Hex. Nut

1шт.

4

NSS

NOT SOLD SEPARAT

7/8 S.A.E Washer

1шт.

5

21871381

BEARING CONE

1.375ø Bore - Timken No. 25877

1шт.

6

21882880

BEARING CUP

2.875ø - Timken No. 25821

1шт.

7

NSS

NOT SOLD SEPARAT

6- Bolt Hub

1шт.

8

21883270

BEARING CUP

3.270ø - Timken No. 25520

1шт.

9

21871800

BEARING CONE

1.800ø Bore - Timken No. 25590

1шт.

10

21932000

SEAL

2.00 ID x 3.625 OD - CR 521430

1шт.

11

NSS

NOT SOLD SEPARAT

5/32ø Cotter Pin x 1 1/2 Lg.

1шт.

12

NSS

NOT SOLD SEPARAT

Spindle

1шт.

13

16409053

SPECIAL BOLT

9/16 NF x 1 1/8 Lg. Lug

6шт.
