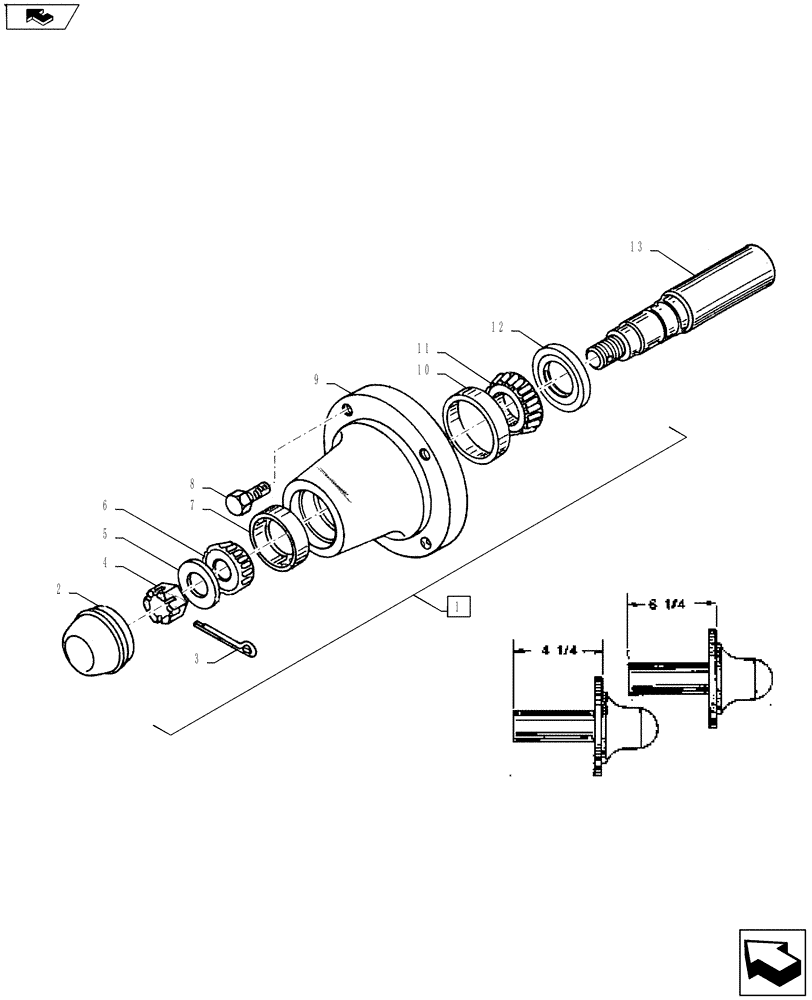

Запчасти Case IH COULTER CHAMP (44.100.01) - Q-633 HUB & SPINDLE ASSY (44) - WHEELS

1

28163300

HUB ASSY.

Q-633 4-Bolt, Includes Ref. 2-12

1шт.

2

28463300

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

5/32 x 1-1/2 Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

3/4 NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

3/4 SAE Washer

1шт.

6

21870750

BEARING CONE

0.75 Bore Timken LM 11949

1шт.

7

21881780

BEARING CUP

1.78 OD Timken 2720

1шт.

8

16408052

SPECIAL BOLT

1/2 x 1 1/4 NF Wheel

4шт.

9

NSS

NOT SOLD SEPARAT

Hub

1шт.

10

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33 OD Timken LM67010

1шт.

11

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25 Bore Timken LM67048

1шт.

12

21931501

SEAL ASSY.

1.50 ID x 2.33 OD CR 14975

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle 6 1/4"

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle 4 1/4"

1шт.
