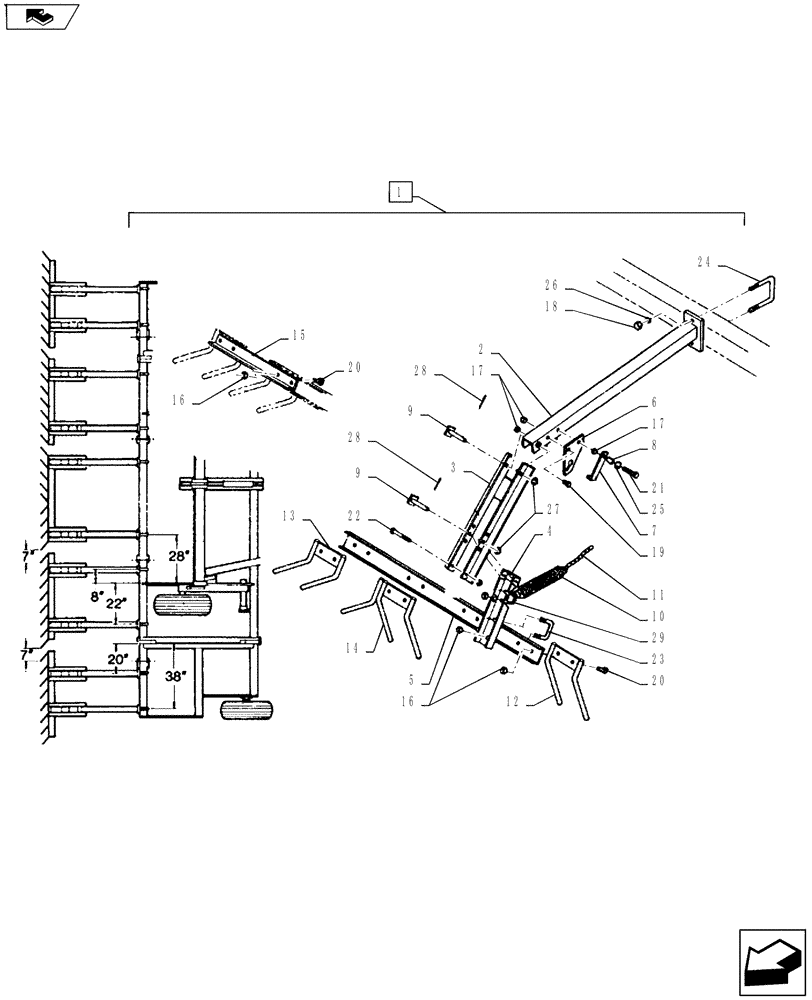

Запчасти Case IH COULTER CHAMP (39.908.01) - HARROW ASSY (OPTIONAL) (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
1
04502001
DUMMY SECTION
Center Harrow Assembly, Includes ref. 2-29
1шт.
1
04503001
DUMMY SECTION
RH Harrow Assembly, Includes ref. 2-29
1шт.
1
04504001
DUMMY SECTION
LH Harrow Assembly (Includes Two Supports & Teeth)
1шт.
2
04501100
CHANNEL
Support
1шт.
3
04501200
ANGLE
Adjusting
1шт.
4
04501310
1шт.
5
04502100
ANGLE
Tooth Mounting Channel
1шт.
6
04501150
PLATE
Latch
1шт.
7
04501160
LATCH
1шт.
8
24107200
COMPRESSION SPRING
1шт.
9
14812315
CLEVIS PIN
2шт.
10
24331230
1шт.
11
22004241
CHAIN
1/4" x 8" Long
1шт.
12
04502201
TOOTH
RH W/Hardware, Includes Ref. 16, 20
1шт.
13
04502301
TOOTH
LH W/Hardware, Includes Ref. 16, 20
1шт.
14
04502401
TOOTH
Center W/Hardware, Includes Ref. 16, 20
1шт.
15
04505100
ANGLE
1шт.
16
NSS
NOT SOLD SEPARAT
1/2 NC Hex. Nut Gd. 2
10шт.
17
NSS
NOT SOLD SEPARAT
1/2 NC Lock Nut
6шт.
18
NSS
NOT SOLD SEPARAT
5/8 NC Hex. Nut Gd. 2
2шт.
19
NSS
NOT SOLD SEPARAT
1/2 x 1 NC Cap Screw
1шт.
20
NSS
NOT SOLD SEPARAT
1/2 x 1 1/2 NC Cap Screw
8шт.
21
16900812
BOLT
1/2 x 3 NC Full Thread
1шт.
22
16008185
BOLT
1/2 x 4 1/2 NC Gd. 5
1шт.
23
16308124
U-BOLT
1/2 NC x 3 x 3
1шт.
24
16310011
U-BOLT
BOLT "U" 5/8 NC x 4 x 5 1/2
1шт.
25
NSS
NOT SOLD SEPARAT
1/2 Std. Washer
3шт.
26
NSS
NOT SOLD SEPARAT
5/8 Std. Lock Washer
2шт.
27
NSS
NOT SOLD SEPARAT
3/4 Flat Washer
2шт.
28
NSS
NOT SOLD SEPARAT
1/4 x 1 1/2 Cotter Pin
2шт.
29
16308011
1/2 NC U-Bolt
1шт.
Выбрано товаров: 31
