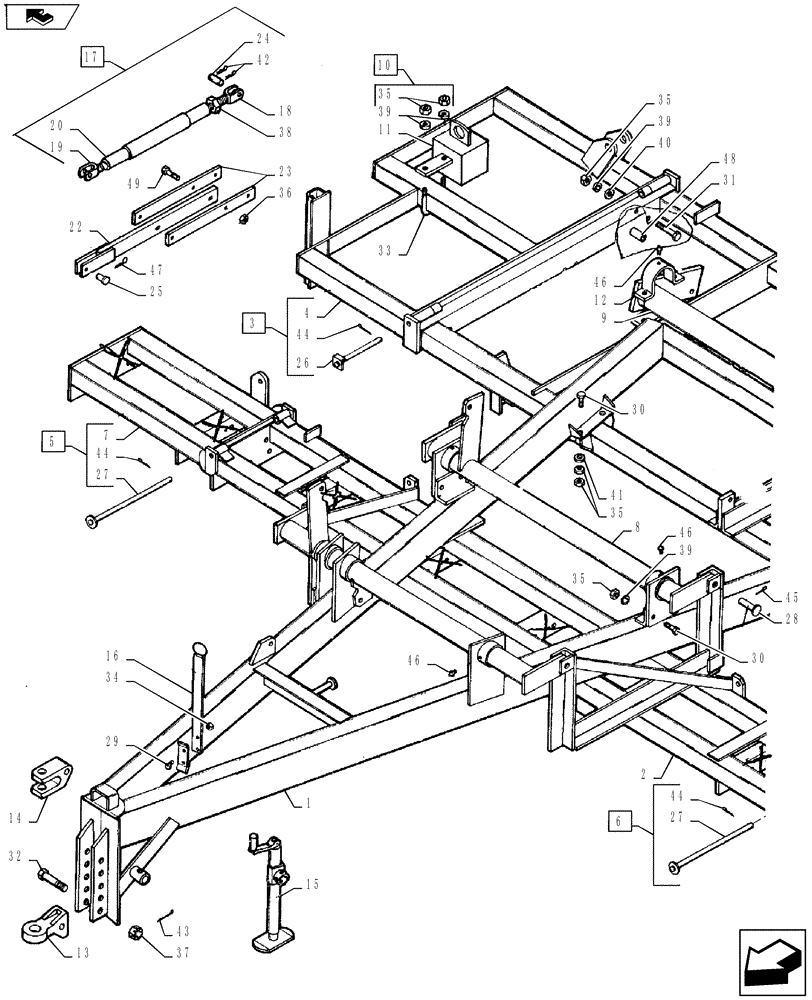

Запчасти Case IH COULTER CHAMP (39.100.01[01]) - COLTER-CHAMP ASSY (39) - FRAMES AND BALLASTING

1

09600016

1шт.

2

09558100

1шт.

3

09569000

11"

2шт.

3

09551000

R.H. 42"

1шт.

4

09569100

11"

1шт.

4

09551100

R.H. 42"

1шт.

5

09553000

R.H. 10"

1шт.

5

09556000

R.H. 40"

1шт.

6

09554000

L.H. 10"

1шт.

6

09557000

L.H. 40"

1шт.

7

09553100

R.H. 10"

1шт.

7

09556100

R.H. 40"

1шт.

8

09602510

FRAMEWORK

Colter Lift Tube

1шт.

9

09609000

TUBE

Main Frame Lift

1шт.

10

09531000

CHOPPER BODY ASSY

42" Wing Weight Bundle

2шт.

11

09531100

WEIGHT

42" Wing

2шт.

12

09503000

CLAMP

Outer Lift Tube

2шт.

13

20092071

ADJUSTABLE CLEVIS

Single

1шт.

14

20092051

CLEVIS

Double

1шт.

15

32250000

(See Figure 39.110.02)

1шт.

16

04615000

BRACKET

Hose Support

1шт.

17

32409000

TURNBUCKLE

With Pins

1шт.

18

32407020

YOKE

R. H. Threaded End

1шт.

19

32407030

YOKE

L. H. Threaded End

1шт.

20

32409020

TUBE

1шт.

21

09614001

LINK/SHACKLE

W/Pins

1шт.

22

09614100

LINK/SHACKLE

Bar

1шт.

23

09956200

LINK/SHACKLE

Bar

2шт.

24

32405000

PIN

1" Dia. x 2" EL

2шт.

25

14816180

HEADED PIN

1" Dia. x 2 1/8" EL Clevis (Hardened)

4шт.

26

14816685

CLEVIS

1" Dia. x 8 1/2" EL Pin

4шт.

27

14816980

1" Dia. x 21 1/8" EL Pin

2шт.

28

14820315

PIN

1 1/4" Dia. x 3 7/8" EL Clevis

4шт.

29

NSS

NOT SOLD SEPARAT

3/8" x 1" NC Cap Screw

2шт.

30

16012105

BOLT

3/4" x 2 1/2" NC Cap Gd. 5

8шт.

31

NSS

NOT SOLD SEPARAT

3/4" x 5" MC Cap Screw

4шт.

32

16902027

SPECIAL PIN

1 1/4" x 6 1/2" NC Hex. Bolt

1шт.

33

16312220

U-BOLT

3/4" x 4" x 5 1/2"

2шт.

34

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

2шт.

35

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

28шт.

36

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

8шт.

37

14052000

NUT

1 1/4" NC Slotted Hex.

1шт.

38

14032000

NUT

1 1/4" NC Jam

1шт.

39

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

12шт.

40

NSS

NOT SOLD SEPARAT

3/4" Std. Washer

4шт.

41

17413011

WASHER

3/4" x .24 Thick

8шт.

42

32405000

PIN

Clip

4шт.

43

NSS

NOT SOLD SEPARAT

3/16" x 2 1/2" Cotter Pin

1шт.

44

NSS

NOT SOLD SEPARAT

1/4" x 1 1/2" Cotter Pin

8шт.

45

NSS

NOT SOLD SEPARAT

1/4" x 2" Cotter Pin

4шт.

46

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

17шт.

47

NSS

NOT SOLD SEPARAT

1/4" x 2" Cotter Pin

2шт.

48

09569200

(11" Wing only) (2 13/16" lg)

4шт.

49

16014125

BOLT

7/8" x 3" NC Cap Gd. 5

2шт.
