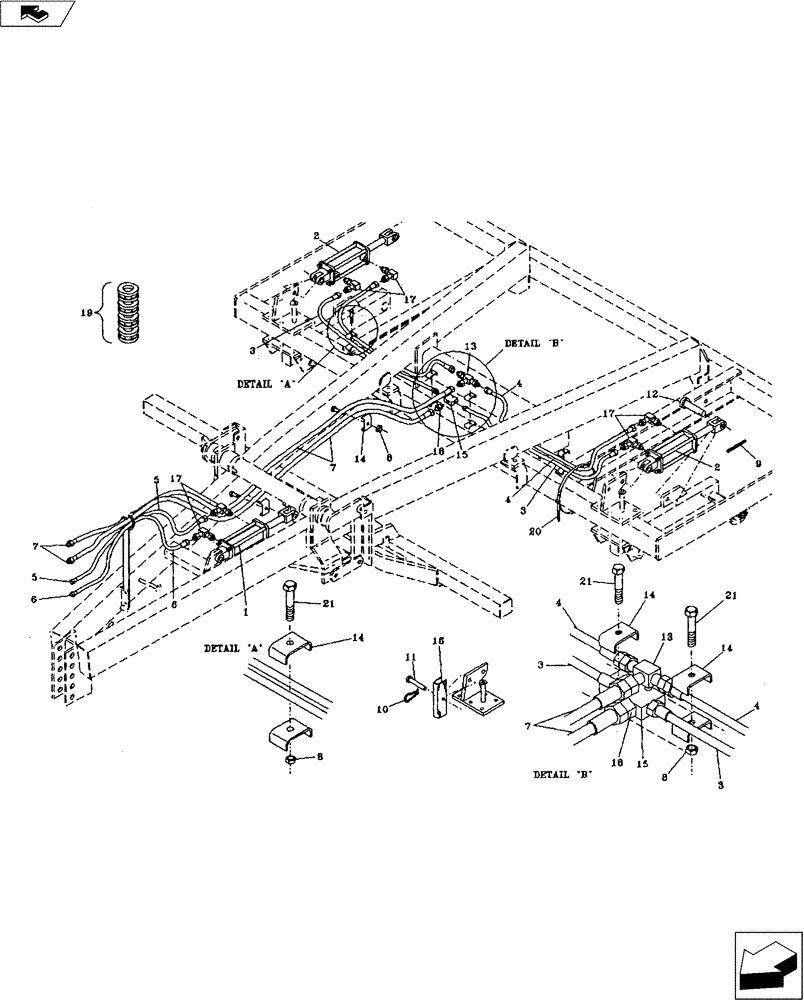

Запчасти Case IH COULTER (35.100.05) - HYDRAULICS - 1990 (35) - HYDRAULIC SYSTEMS

1

25025084

CYLINDER ASSY.

2 1/2" x 8"

1шт.

2

25025084

CYLINDER ASSY.

2 1/2" x 8" (7 & 9 Shank)

2шт.

2

25030082

HYDRAULIC CYLINDER

3" x 8" (11 & 13 Shank, All Parabolics)

2шт.

3

25600656

HOSE

3/8" Hydraulic x 55" Long (7, 9, 13 Shank)

2шт.

3

25600668

HOSE

3/8" Hydraulic x 72" Long (11 Shank)

2шт.

4

25600664

HYDRAULIC HOSE,0.38" ID x 60.00", SAE 100R17

3/8" 60" Long (7, 9, 13 Shank)

2шт.

4

25600678

HYDRAULIC HOSE,0.38" ID x 78.00", SAE 100R17

3/8" 78" Long (11 Shank)

2шт.

5

25600680

HOSE ASSY.

3/8" Hydraulic x 118" Long

1шт.

6

25600688

HOSE

3/8" Hydraulic x 110" Long

1шт.

7

25600888

HOSE ASSY.

1/2" Hydraulic x 184" Long

2шт.

8

NSS

NOT SOLD SEPARAT

3/8" NC Hex., Nut

6шт.

9

NSS

NOT SOLD SEPARAT

3/16" x 2" Long Cotter Pin

6шт.

10

NSS

NOT SOLD SEPARAT

1/8" x 2" Long Hair Pin

2шт.

11

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3 1/8" Clevis

2шт.

12

14816221

1" x 2 3/4" Clevis Pin

6шт.

13

25707518

3 WAY CONNECTION

3/4" JICM Tee

1шт.

14

06200125

HOSE CLAMP

Double

6шт.

15

25405025

DIVIDER ASSY.

Flow

1шт.

16

04632700

STAY

Cylinder Stop

2шт.

17

25705601

ELBOW

9/16" SAEM x 3/4" JICM 90 (2 1/2" x 8" Cylinder)

6шт.

17

25707521

ELBOW

3/4" SAEM x 3/4" JICM 90 (3 1/2" x 8" Cylinder)

4шт.

18

25707510

HYD CONNECTOR

1/2" NPTM x 3/4" JICM Adapter

1шт.

19

25800010

CYLINDER

1 1/4" Stroke Control Kit

3шт.

20

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 24" Plastic Hose Tie

4шт.

21

NSS

NOT SOLD SEPARAT

3/8" x 1 1/2" Bolt

4шт.
