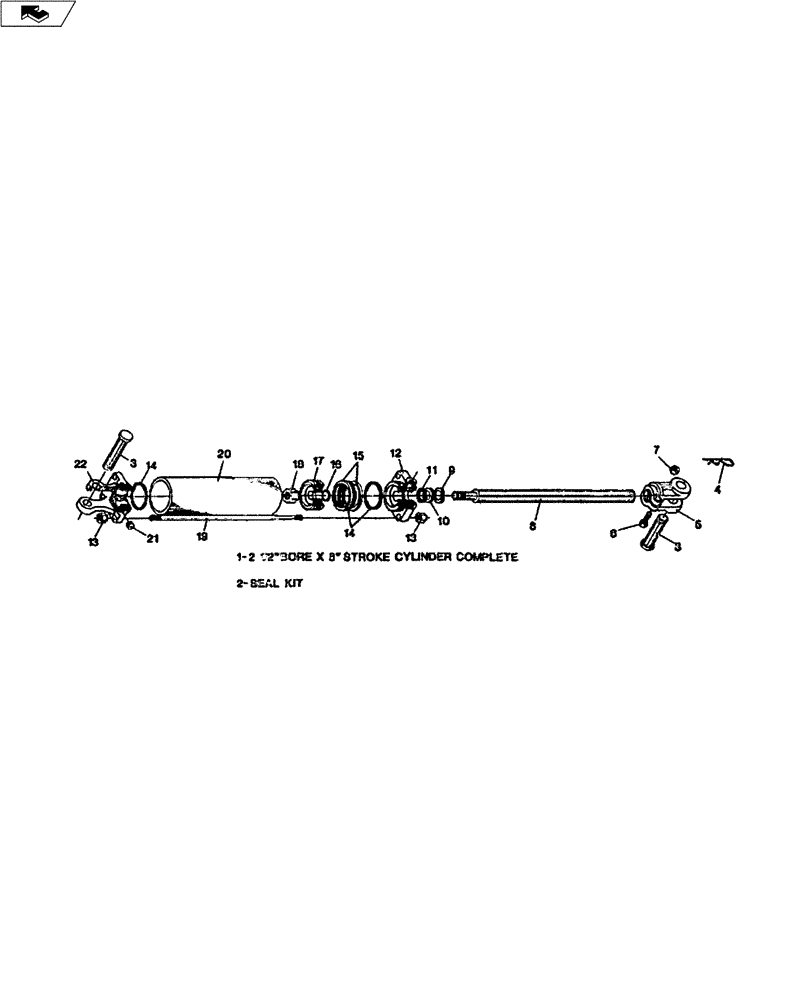

Запчасти Case IH COULTER (35.100.03) - HYDRAULIC CYLINDER - 2-1/2" X 8" (35) - HYDRAULIC SYSTEMS

1

25025080

HYDRAULIC CYLINDER

2-1/2" x 8" - NPT Parts

1шт.

1

25025084

CYLINDER ASSY.

2-1/2" x 8" - SAE Ports

1шт.

2

25802509

KIT

Seal - 1-1/16" Rod

1шт.

3

25890100

KIT

1" x 2-3/4" E.L. Clevis Pin

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" Hair Pin

2шт.

5

25802501

SHAFT

Clevis - 1-1/16" UNF Threads

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" X 1-3/4" NC Cap Screw

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25802502

1-1/16" UNF Threads

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal (See Ref. 2)

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer (See Ref. 2)

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring (See Ref. 2)

1шт.

12

25802512

Cylinder - 1/2" NPT Ports

1шт.

12

25802533

Cylinder - 9/16" SAE Ports

1шт.

13

NSS

NOT SOLD SEPARAT

1/2" NF Hex. Nut

8шт.

13

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring (See Ref. 2)

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal (See Ref. 2)

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring (See Ref. 2)

1шт.

17

25802514

SHAFT

1шт.

18

NSS

NOT SOLD SEPARAT

3/4" NF Hex. Nut

1шт.

19

25802506

4шт.

20

25802501

SHAFT

Barrel

1шт.

21

NSS

NOT SOLD SEPARAT

3/8" NPT Plug

1шт.

21

NSS

NOT SOLD SEPARAT

9/16" SAE Plug

1шт.

22

25802515

Cylinder - 3/8" NPT Ports

1шт.

22

25802534

SHAFT

Cylinder - 9/16" SAE Ports

1шт.
