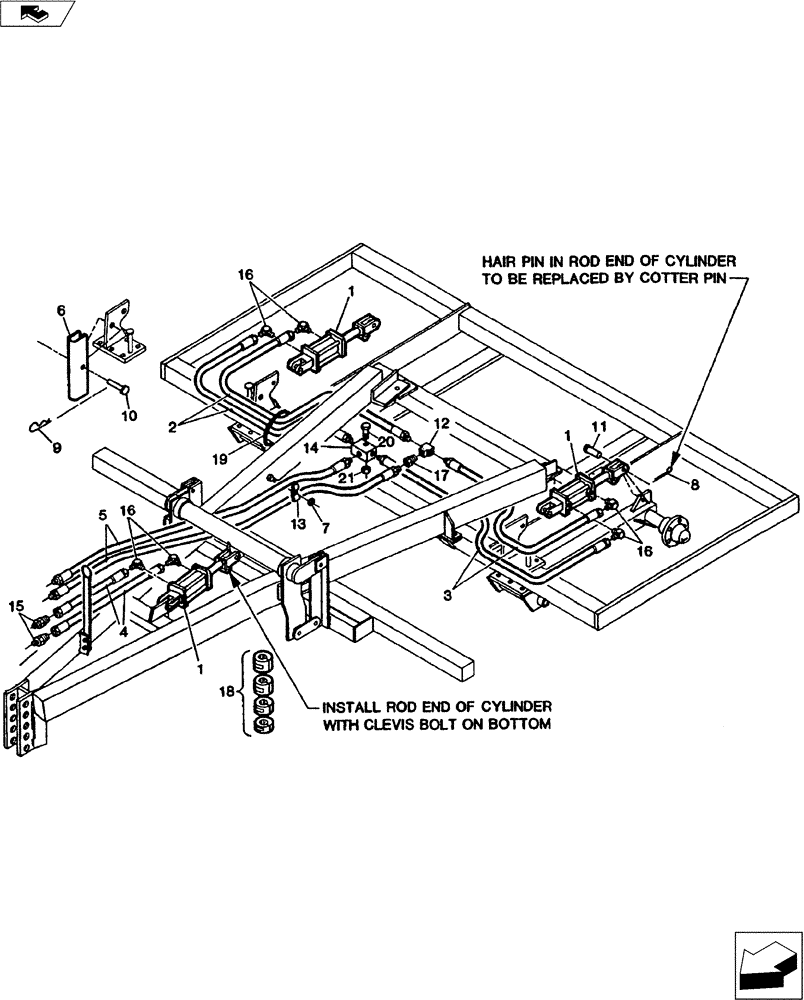

Запчасти Case IH COULTER (35.100.02) - HYDRAULICS - 1984 (35) - HYDRAULIC SYSTEMS

1

25025080

HYDRAULIC CYLINDER

2-1/2" X 8" - NPT Ports 3/8" If Older Unit Or 9/16"

3шт.

1

25025084

CYLINDER ASSY.

2-1/2" X 8" - SAE Ports - 3/8" If Older Unit Or 9/16"

3шт.

1

25030080

HYDRAULIC CYLINDER

3" X 8" - NPT Ports 3/4" Ports

3шт.

1

25030082

HYDRAULIC CYLINDER

3" X 8" - SAE Ports 3/4" Ports

3шт.

2

25600665

HOSE

3/8" Hyd. x 66" Long

2шт.

2

25600679

HOSE

3/8" Hyd. x 96" Long

2шт.

3

25600682

HOSE

3/8" Hyd. x 88" Long

2шт.

3

25600680

HOSE ASSY.

3/8" Hyd. x 118" Long

2шт.

4

25600691

HYDRAULIC HOSE,9.65mm ID x 2514.6mm L, SAE 100R17

2шт.

5

25600892

HOSE

1/2" Hyd. x 165" Long

2шт.

6

04632700

STAY

Cylinder

2шт.

7

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut

1шт.

8

NSS

NOT SOLD SEPARAT

3/16" x 2" Lg. Cotter Pin

2шт.

8

NSS

NOT SOLD SEPARAT

1/8" X 2" Lg. Cotter Pin

2шт.

9

NSS

NOT SOLD SEPARAT

1/8" x 2" Lg. Hair Pin

2шт.

10

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8" El Clevis

2шт.

11

25890100

KIT

1" x 2-3/4" El Clevis Pin

6шт.

12

217-1162

TEE,3/8"-18 Female

1шт.

13

22530601

HOSE CLAMP

Double

1шт.

14

25405025

DIVIDER ASSY.

Flow

1шт.

15

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

2шт.

16

25707514

ELBOW

3/8" NPTM X 3/4" JICM 90° (2-1/2" X 8")

6шт.

16

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

6шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

6шт.

17

25708815

REDUCER FITTING

1/2" NPTE x 3/8" NPTM

1шт.

18

25800010

CYLINDER

1-1/4" Stroke Control Kit

3шт.

19

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP

4шт.

20

NSS

NOT SOLD SEPARAT

7/16" x 2" NC Capscrew

1шт.

21

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

1шт.
