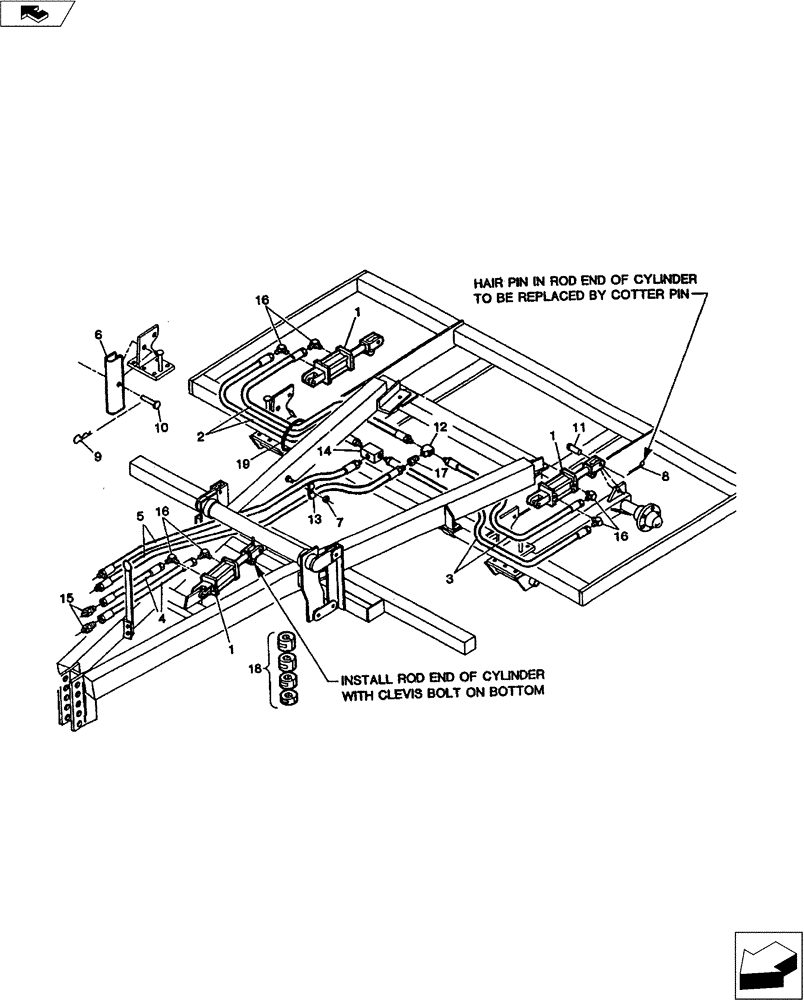

Запчасти Case IH COULTER (35.100.01) - HYDRAULICS - 1986 (35) - HYDRAULIC SYSTEMS

1

25025081

HYDRAULIC CYLINDER

2-1/2" x 8" SAE Ports

1шт.

2

25030082

HYDRAULIC CYLINDER

3" x 8" SAE Ports

2шт.

3

25600682

HOSE

3/8" Hyd. x 88" Long

2шт.

3

25600680

HOSE ASSY.

3/8" Hyd. x 118" Long

2шт.

4

25600677

HOSE

3/8" Hyd. x 98" Long

2шт.

5

25600892

HOSE

1/2" Hyd. x 165" Long

2шт.

6

25600665

HOSE

3/8" Hyd. x 66" Long

2шт.

6

25600679

HOSE

3/8" Hyd. x 96" Long

2шт.

7

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut

1шт.

8

NSS

NOT SOLD SEPARAT

3/16" x 2" Lg. Cotter Pin

2шт.

9

NSS

NOT SOLD SEPARAT

1/8" x 2" Lg. Hair Pin

2шт.

10

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" X 3-1/8" El Clevis

2шт.

11

25890100

KIT

1" x 2-3/4" El Clevis Pin

6шт.

12

217-1162

TEE,3/8"-18 Female

1шт.

13

22530601

HOSE CLAMP

Double

1шт.

14

25405025

DIVIDER ASSY.

Flow

1шт.

15

04632700

STAY

Cylinder

2шт.

16

25707514

ELBOW

3/8" NPTM X 3/4" JICM 90°

6шт.

16

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

6шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

6шт.

17

25708815

REDUCER FITTING

1/2" NPTF X 3/8" NPTM

1шт.

18

25800010

CYLINDER

1-1/4" Stroke Control Kit

3шт.

19

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP

4шт.

20

NSS

NOT SOLD SEPARAT

7/16" X 2" NC Capscrew (Not Shown)

1шт.

21

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut (Not Shown)

1шт.
