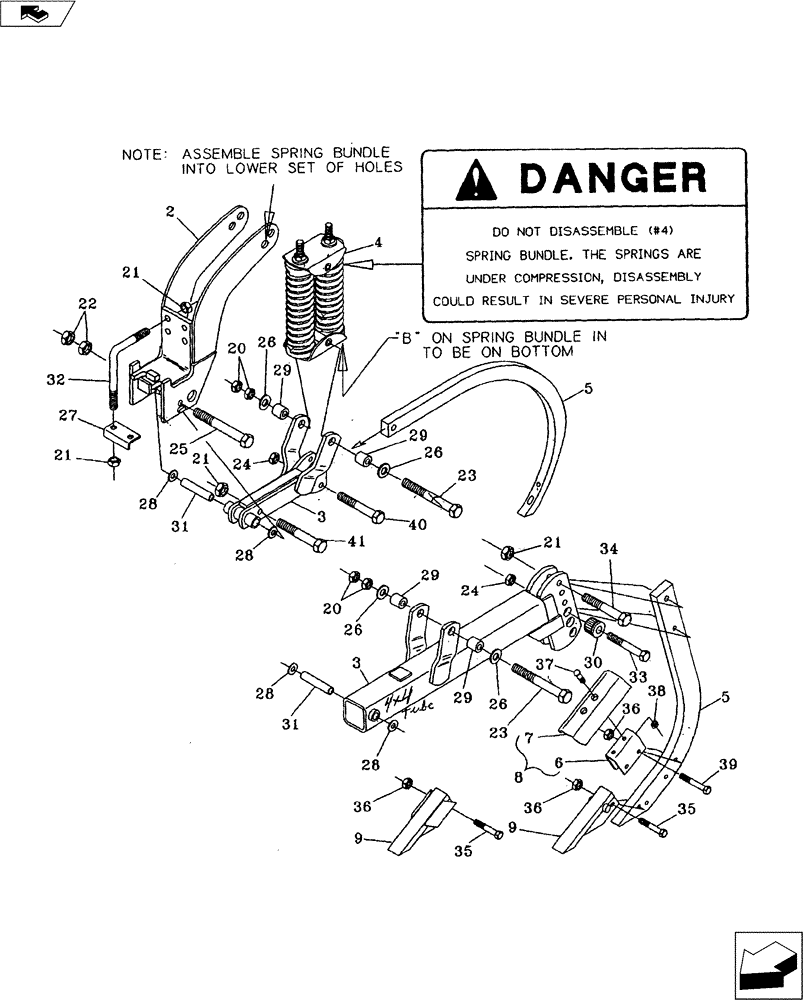

Запчасти Case IH COULTER (75.200.10) - SPRING RESET 1800 - 1990 (75) - SOIL PREPARATION
№
Артикул
Название
Примечание
Количество
1
09580011
EDGE
S/R 1800 Bundle 1 1/4", E/B Shank (Not Shown)
1шт.
1
09580046
S/R 1800 Para Shank L/Point (Not Shown)
1шт.
2
09581100
S/R 1800 Mount
1шт.
3
09581200
1 1/4" x 2" Shank Pivot
1шт.
3
09581300
BEAM ASSY.
Parabolic Shank Pivot
1шт.
4
09581500
SPRING BOX
S/R 1800 Bundle
1шт.
5
33020022
SHANK
1 1/4" x 2" Edge Bent
1шт.
5
33020040
SHANK
Parabolic
1шт.
6
09581700
SHANK
Parabolic Cover Attachment Bracket
6шт.
7
33310076
LANDSIDE
Parabolic 4" Cover Attachment w/Hardware
1шт.
8
09580060
BRACKET
Parabolic Covering Attachment, Inclube Ref. 6 -7 Hardware
1шт.
9
09729000
POINT
Parabolic - MV w/Hardware
1шт.
9
09729001
POINT
Parabolic - Wing w/Hardware
1шт.
20
NSS
NOT SOLD SEPARAT
5/8" NC Hex., Jam Nut
4шт.
21
NSS
NOT SOLD SEPARAT
3/4" NC Hex., Nut
6шт.
22
NSS
NOT SOLD SEPARAT
3/4" NC Hex., Jam Nut
2шт.
23
16901025
CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5
5/8" x 7 1/4" NC Hex., Bolt Gd 5
2шт.
24
NSS
NOT SOLD SEPARAT
5/8" NC Hex., Nut
3шт.
25
16901231
CAPSCREW
3/4" x 7" NC Hex., Bolt Gd 5
1шт.
26
NSS
NOT SOLD SEPARAT
5/8" Std., Washer ZP
4шт.
27
09561200
PLATE
Formed
1шт.
28
NSS
NOT SOLD SEPARAT
3/4" Machine Bushing
1шт.
29
44006200
BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L
H.T
4шт.
30
4400651
Serrated Bushing H.T.
4шт.
31
44007500
BUSHING,19.56mm ID x 25.91mm OD x 127mm L
5", H.T
1шт.
32
16512470
SPECIAL BOLT
3/4" NC x 5.69" x 5.69" L-Bolt
2шт.
32
87427191
SPECIAL BOLT
3/4" NC x 5.69" x 8.12" L-Bolt
2шт.
33
NSS
NOT SOLD SEPARAT
5/8" x 4" NC Hex., Bolt Gd 5
1шт.
34
16901215
BOLT
3/4" x 3 3/4" A325 Hex., Gd. 5
1шт.
35
NSS
NOT SOLD SEPARAT
1/2" x 2 1/4" NC Hex., Bolt Gd. 5
1шт.
36
NSS
NOT SOLD SEPARAT
1/2" NC Hex., Nut
3шт.
37
NSS
NOT SOLD SEPARAT
7/16" x 1 1/4" Plow Bolt
2шт.
38
NSS
NOT SOLD SEPARAT
7/16" NC Hex., Nut
2шт.
39
NSS
NOT SOLD SEPARAT
1/2" x 2 1/2" NC Hex., Bolt Gd. 5
2шт.
40
NSS
NOT SOLD SEPARAT
5/8" x 3" NC Hex., Bolt Gd. 5
2шт.
41
NSS
NOT SOLD SEPARAT
3/4" x 3" NC Hex., Bolt Gd. 5
1шт.
Выбрано товаров: 36
