Запчасти Case IH COULTER (75.200.09) - CHISEL POINTS (75) - SOIL PREPARATION

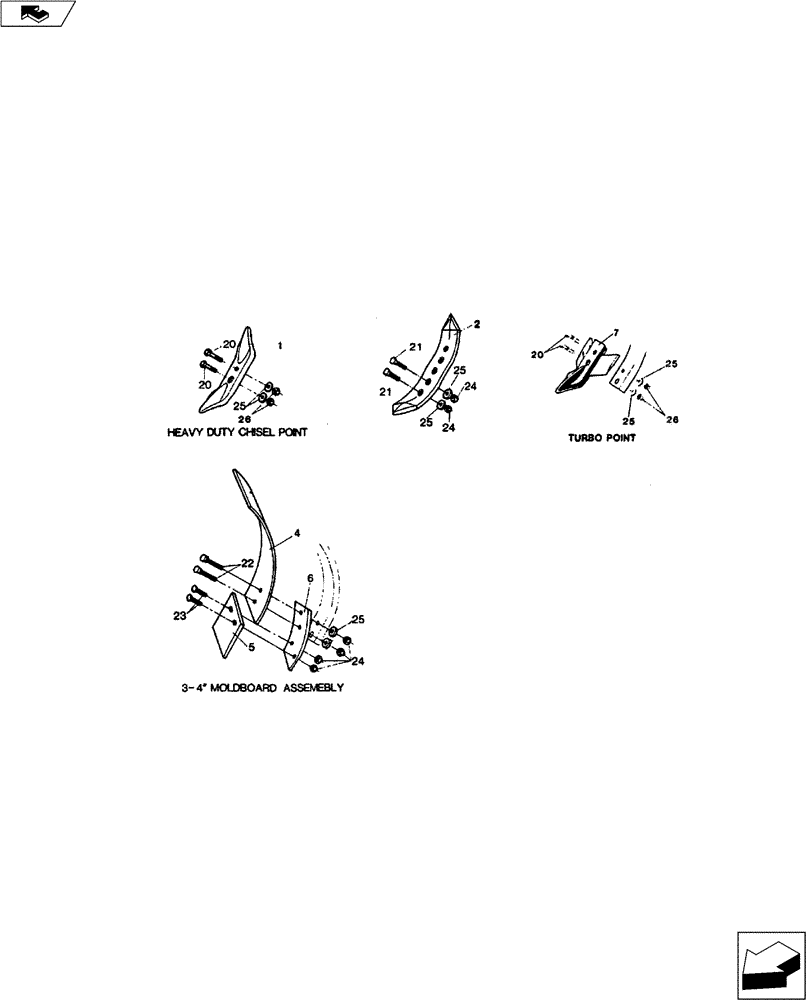

Схема запчастей Case IH COULTER - (75.200.09) - CHISEL POINTS (75) - SOIL PREPARATION
25
7
4
23
25
22
1
25
26
20
25
3
21
26
24
21
24
25
6
20
2
5
25
20
24

Артикул

Название

Примечание

Количество

1

33310041

POINT

Heavy Duty Chisel W/Hardware

1шт.

2

33311039

FROG

4" RH Twisted Point W/Hardware

1шт.

2

33311040

FROG

4" LH Twisted Point W/Hardware

1шт.

2

33311001

SHOVEL

4" RH Twisted Point W/Hardware

1шт.

2

33311011

SHOVEL

4" LH Twisted Point W/Hardware

1шт.

3

33311039

FROG

4" RH Twisted Point W/Hardware

1шт.

3

33311040

FROG

4" LH Twisted Point W/Hardware

1шт.

4

33311039

FROG

4" RH Twisted Point W/Hardware

1шт.

4

33311040

FROG

4" LH Twisted Point W/Hardware

1шт.

5

33311039

FROG

4" RH Twisted Point W/Hardware

1шт.

5

33311040

FROG

4" LH Twisted Point W/Hardware

1шт.

6

33311039

FROG

4" RH Twisted Point W/Hardware

1шт.

6

33311040

FROG

4" LH Twisted Point W/Hardware

1шт.

20

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

21

16208111

PLOW BOLT

1/2" x 2-3/4" NC

2шт.

22

16208130

PLOW BOLT

1/2" x 3-1/4" NC

2шт.

23

16990800

PLOW BOLT

1/2" x 1" NC Clipped Head

2шт.

24

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

2шт.

25

NSS

NOT SOLD SEPARAT

1/2" Std. Washer

2шт.

26

NSS

NOT SOLD SEPARAT

1/2" NC Lock Nut

2шт.

Выбрано товаров: 20
