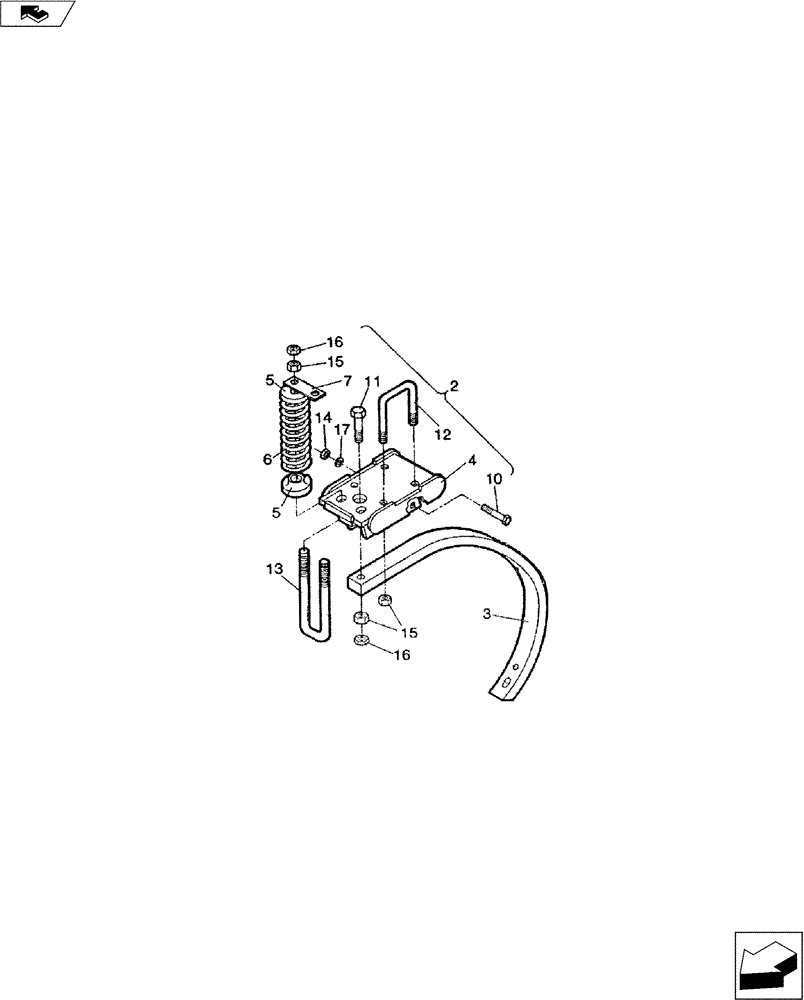

Запчасти Case IH COULTER (75.200.08) - SPRING SHANK (75) - SOIL PREPARATION

1

09575101

SHANK

Spring (Not Shown)

1шт.

2

09575102

SPRING BOX

Spring Bundle Less Shank

1шт.

2

09575100

SPRING BOX

Spring Bundle Less Hardware

1шт.

3

33020026

SHANK

1-1/2" x 2" x 25"

1шт.

4

09575110

SPRING BOX

Mount

1шт.

5

20090050

HOLDER

Spring Casting

4шт.

6

24156203

SPRING

Compression

2шт.

7

09566000

Bar

1шт.

10

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

11

426-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

1шт.

12

16312230

U-BOLT

BOLT "U" 3/4" x 4" x 5-1/2"

2шт.

13

16312680

U-BOLT

3/4" x 2-3/8" x 16-5/8"

2шт.

14

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

1шт.

15

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

7шт.

16

NSS

NOT SOLD SEPARAT

3/4" NC Jam Nut

3шт.

17

NSS

NOT SOLD SEPARAT

1/2" Lock Washers

1шт.
