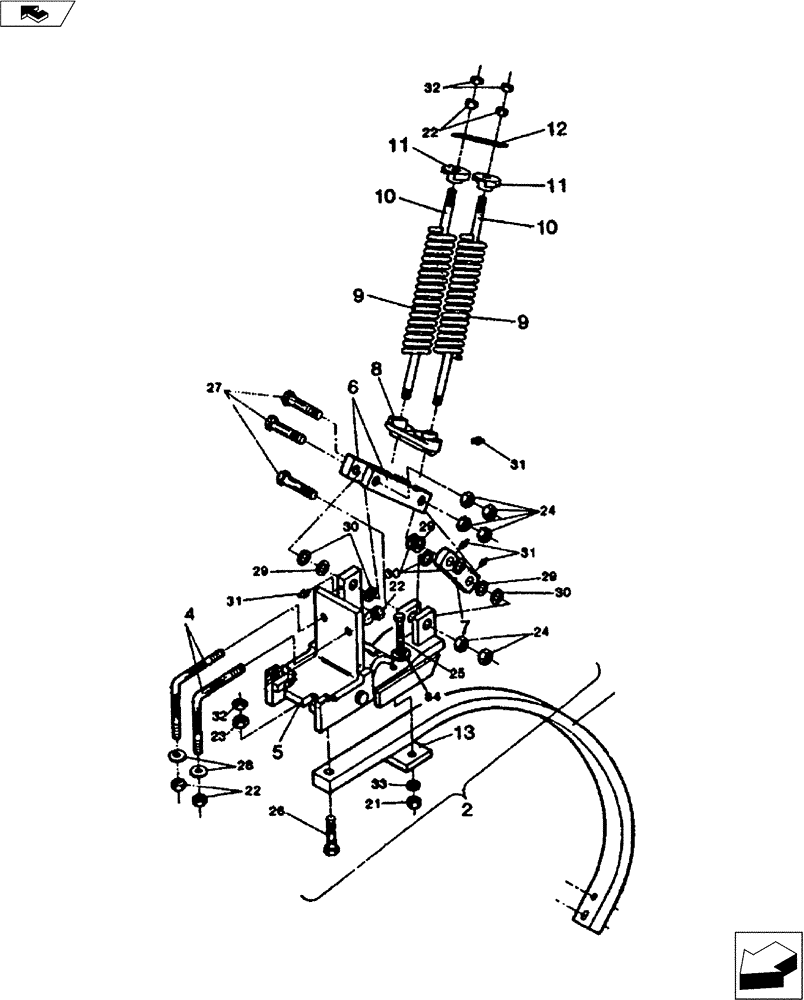

Запчасти Case IH COULTER (75.200.07) - AUTO-RESET SHANK - 1983 (75) - SOIL PREPARATION

1

09560002

SHANK

25" A/R (Not Shown)

1шт.

2

09562000

KIT

A/R Bundle Less Shank

1шт.

3

33020026

SHANK

1-1/2" x 2" x 25" (Not Shown)

1шт.

4

16512470

SPECIAL BOLT

Bent Threaded Rod

2шт.

5

09561000

MOUNTING PARTS

A/R Shank

1шт.

6

09563000

UPPER LINK

Bar

2шт.

7

09564000

LOWER LINK

Bar

1шт.

8

09565100

HOLDER

Spring Holder Casting

1шт.

9

24156203

SPRING

Compression Spring

2шт.

10

16909128

ROD

Rod

2шт.

11

20090050

HOLDER

Spring Holder Casting

2шт.

12

09566000

Bar

1шт.

13

09568000

PLATE

Flat

1шт.

21

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

2шт.

22

NSS

NOT SOLD SEPARAT

3/4"NC Hex. Nut

8шт.

23

NSS

NOT SOLD SEPARAT

3/4" NC Heavy Hex. Nut

1шт.

24

NSS

NOT SOLD SEPARAT

1/8" NC Hex. Jam Nut

6шт.

25

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

2шт.

26

426-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

1шт.

27

16901413

BOLT

1/8" x3-1/4" NC Special Hex. Bolt

3шт.

28

17413011

WASHER

3/4" Washer x 0.24 Thick

2шт.

29

17614010

BUSHING

1/8" Machine 18 Ga

3шт.

30

17614020

BUSHING

1/8" Machine 14 Ga

6шт.

31

NSS

NOT SOLD SEPARAT

1/4" -28 Thread Grease Zerk

5шт.

32

NSS

NOT SOLD SEPARAT

3/4" NC Jam Nut

3шт.

33

NSS

NOT SOLD SEPARAT

5/8" Lock Washer

2шт.

34

17411012

WASHER

5/8" Heavy

2шт.
