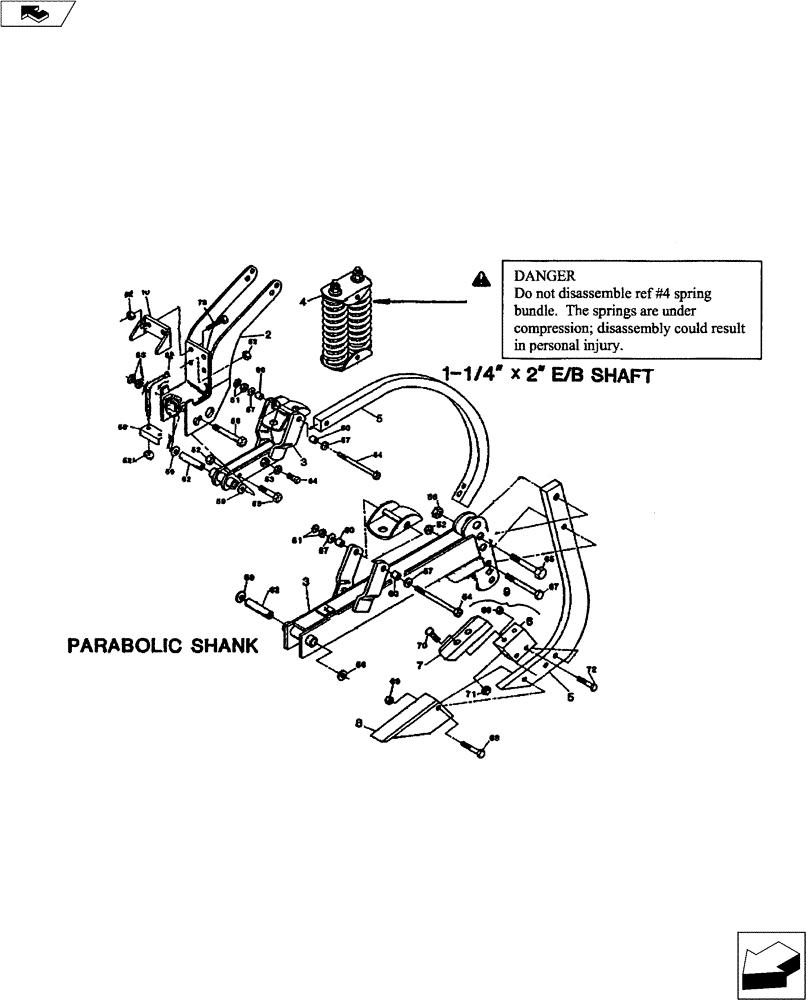

Запчасти Case IH COULTER (75.200.05) - SPRING RESET 1800 - 1984 (75) - SOIL PREPARATION
№
Артикул
Название
Примечание
Количество
1
09580012
KIT
S/R 1800 Bundle 1-1/4" EB Shank
1шт.
1
09580040
KIT
S/R 1800 Parabolic Shank W/Point
1шт.
2
09580100
BRACKET
S/R 1800 Mount
1шт.
3
09580800
MOUNTING PARTS
1-1/4" x 2" Shank Pivot (EB W/Set Screw)
1шт.
3
09580200
PIVOT
1-1/2" x 2" Shank (EB W/Set Screw)
1шт.
3
09580600
SHANK
Parabolic Pivot
1шт.
4
09580350
SPRING BOX
S/R 1800 Bundle
1шт.
5
33020022
SHANK
1-1/4" x 2" Edge Bent
1шт.
5
33020032
SHANK
1-1/2" x 2" Edge Bent
1шт.
5
33020039
SHANK
Parabolic
1шт.
6
09580750
HITCH BRACKET
Parabolic Covering Attach
1шт.
7
33310076
LANDSIDE
Parabolic 4" Covering W/Hardware
1шт.
8
09729000
POINT
Parabolic HV Chisel
1шт.
9
09580060
BRACKET
Parabolic Covering, Includes Ref. 6-7 & Hardware
1шт.
10
09580680
BRACKET
Support (For Parabolic Only)
1шт.
51
NSS
NOT SOLD SEPARAT
1/2" NC Jam Nut
4шт.
52
NSS
NOT SOLD SEPARAT
3/4" NC Hex. Nut
7шт.
53
NSS
NOT SOLD SEPARAT
3/4" NC Hex. Jam Nut
3шт.
54
16900828
CAPSCREW
1/2" x 7" NC Hex. Gd. 5
2шт.
55
413-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
1шт.
56
16901231
CAPSCREW
3/4" x 7" NC Hex. Gd. 5
1шт.
57
NSS
NOT SOLD SEPARAT
1/2" Std. Washer
4шт.
58
09561200
PLATE
Forward
1шт.
59
495-81038
WASHER,25/32" x 1 1/4" x .075"
4шт.
60
09580322
PLUG
Bushing 5/8" Lg. - H.T.
4шт.
62
44007500
BUSHING,19.56mm ID x 25.91mm OD x 127mm L
5" Lg. - H.T.
1шт.
63
16512160
SPECIAL BOLT
L for 4" x 6" Tube
2шт.
63
16512470
SPECIAL BOLT
L for 4" x 4" Tube
2шт.
64
16812084
SET SCREW,3/4" - 10 x 2"
3/4" x 2" Set
1шт.
65
16901615
SPECIAL BOLT
1" x 3-3/4" Hex.
1шт.
66
NSS
NOT SOLD SEPARAT
1" NC Hex. Nut
1шт.
68
NSS
NOT SOLD SEPARAT
1/2" x 2-1/4" NC Cap Screw
1шт.
69
NSS
NOT SOLD SEPARAT
1/2" NC Hex. Nut Gd. 2
3шт.
70
420-2720
PLOW BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8
2шт.
72
NSS
NOT SOLD SEPARAT
1/2" x 2-1/2" Hex. Bolt
2шт.
73
NSS
NOT SOLD SEPARAT
3/4" x 2-1/2" Hex. Bolt
1шт.
Выбрано товаров: 37
