Запчасти Case IH COULTER (75.200.04) - SPRING RESET 1800 - 1986 (75) - SOIL PREPARATION

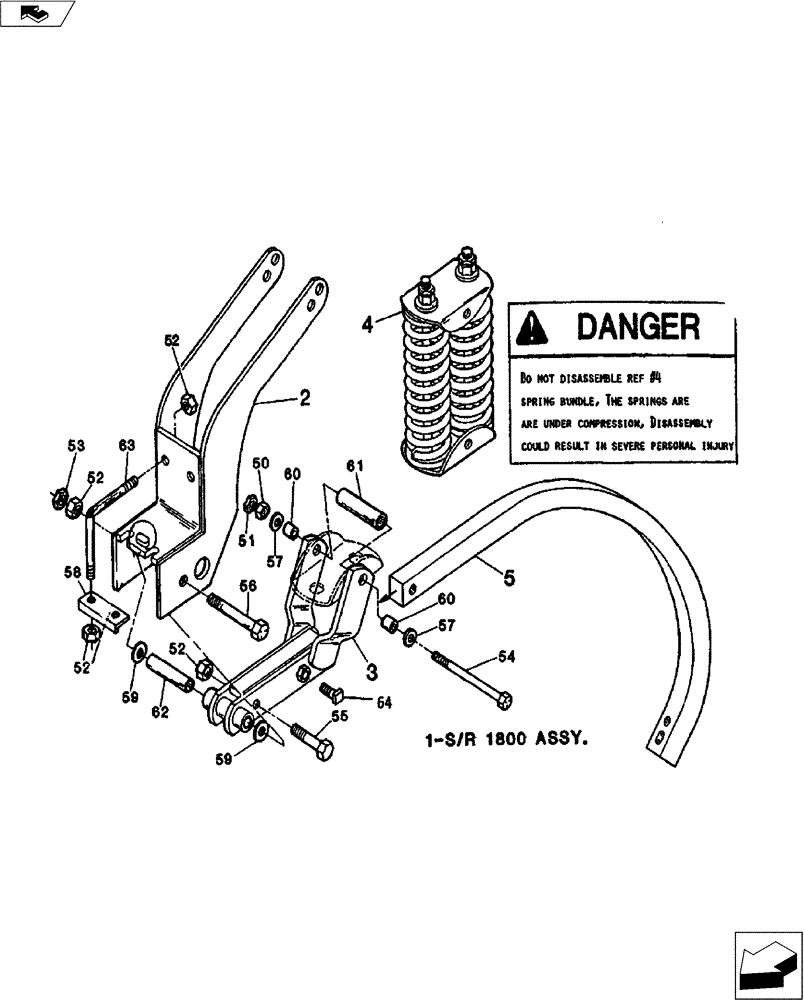

Схема запчастей Case IH COULTER - (75.200.04) - SPRING RESET 1800 - 1986 (75) - SOIL PREPARATION
52
60
62
52
1
63
56
52
3
54
58
2
50
5
51
64
60
52
53
59
57
59
61
4
55

Артикул

Название

Примечание

Количество

1

09580011

EDGE

SR1800 Bundle L/1-1/2" X 2" Bent Shank

1шт.

2

09580100

BRACKET

SR1800 Mount

1шт.

3

09580200

PIVOT

SR1800 Shank

1шт.

4

09580300

SPRING

SR1800 Bundle

1шт.

5

33020024

1-1/2" x 2" Edge Bent

1шт.

50

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

2шт.

51

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Jam Nut

2шт.

52

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

6шт.

53

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Jam Nut

1шт.

54

16900828

CAPSCREW

1/2" x 7" NC Hex. Gd. 5

2шт.

55

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

56

16901231

CAPSCREW

3/4" x 7-1/2" NC Hex. Gd.5

1шт.

57

NSS

NOT SOLD SEPARAT

1/2" Std. Washer

4шт.

58

09561200

PLATE

Formed

1шт.

59

495-81038

WASHER,25/32" x 1 1/4" x .075"

4шт.

60

09580322

PLUG

Bushing 5/8" Lg. H.T.

4шт.

61

09580330

PLUG

Bushing 4-1/4" Lg.

2шт.

62

44007500

BUSHING,19.56mm ID x 25.91mm OD x 127mm L

Bushing 4-3/4" Lg. H.T.

1шт.

63

16512470

SPECIAL BOLT

L-Bolt

2шт.

64

16812084

SET SCREW,3/4" - 10 x 2"

3/4" x 2" Set

1шт.

Выбрано товаров: 20
