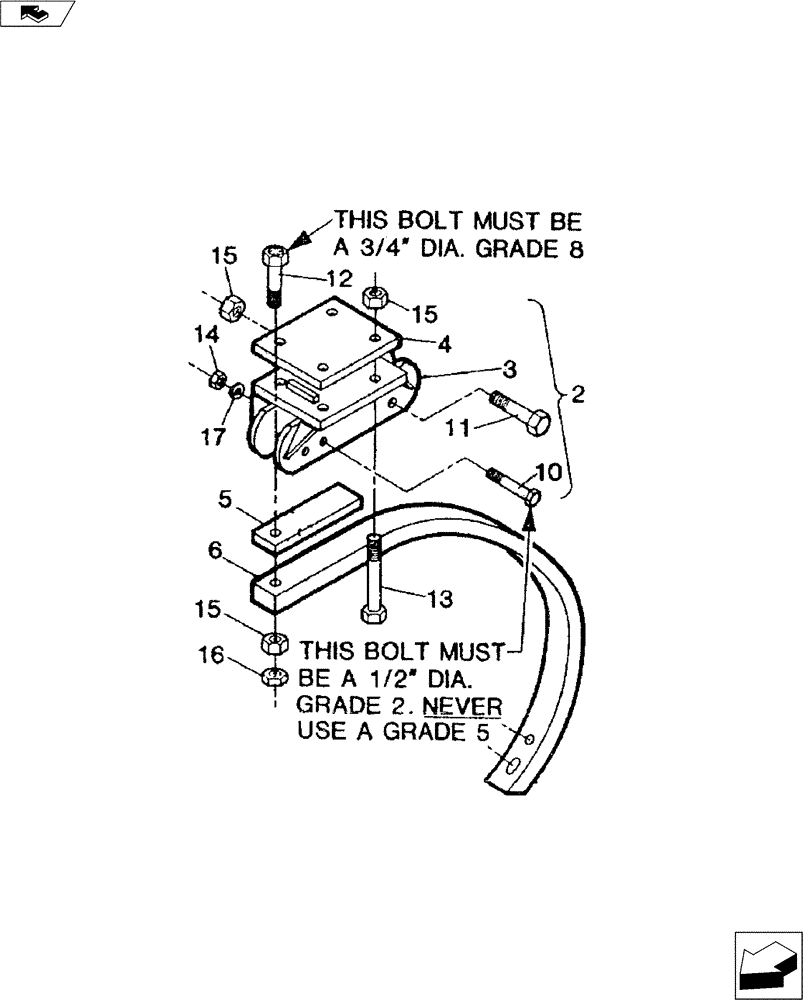

Запчасти Case IH COULTER (75.200.03) - SHEAR BOLT SHANK (75) - SOIL PREPARATION

2

09580090

KIT

Shear Bolt Bundle, Less Shank

1шт.

3

09575260

SHANK

1шт.

4

09575220

PLATE

1шт.

5

09575270

SPACER

2шт.

6

33020024

Edge Bent (1-1/2")

1шт.

10

424-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 2

1/2 x 3-1/2" NC Gd. 2

1шт.

11

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

3/4" x 3-1/2" NC Gd. 5

1шт.

12

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

3/4" X 6" NC Gd. 5

4шт.

14

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

1шт.

15

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

5шт.

16

NSS

NOT SOLD SEPARAT

3/4" NC Jam Nut

1шт.

17

NSS

NOT SOLD SEPARAT

1/2" Lock Washer

1шт.
